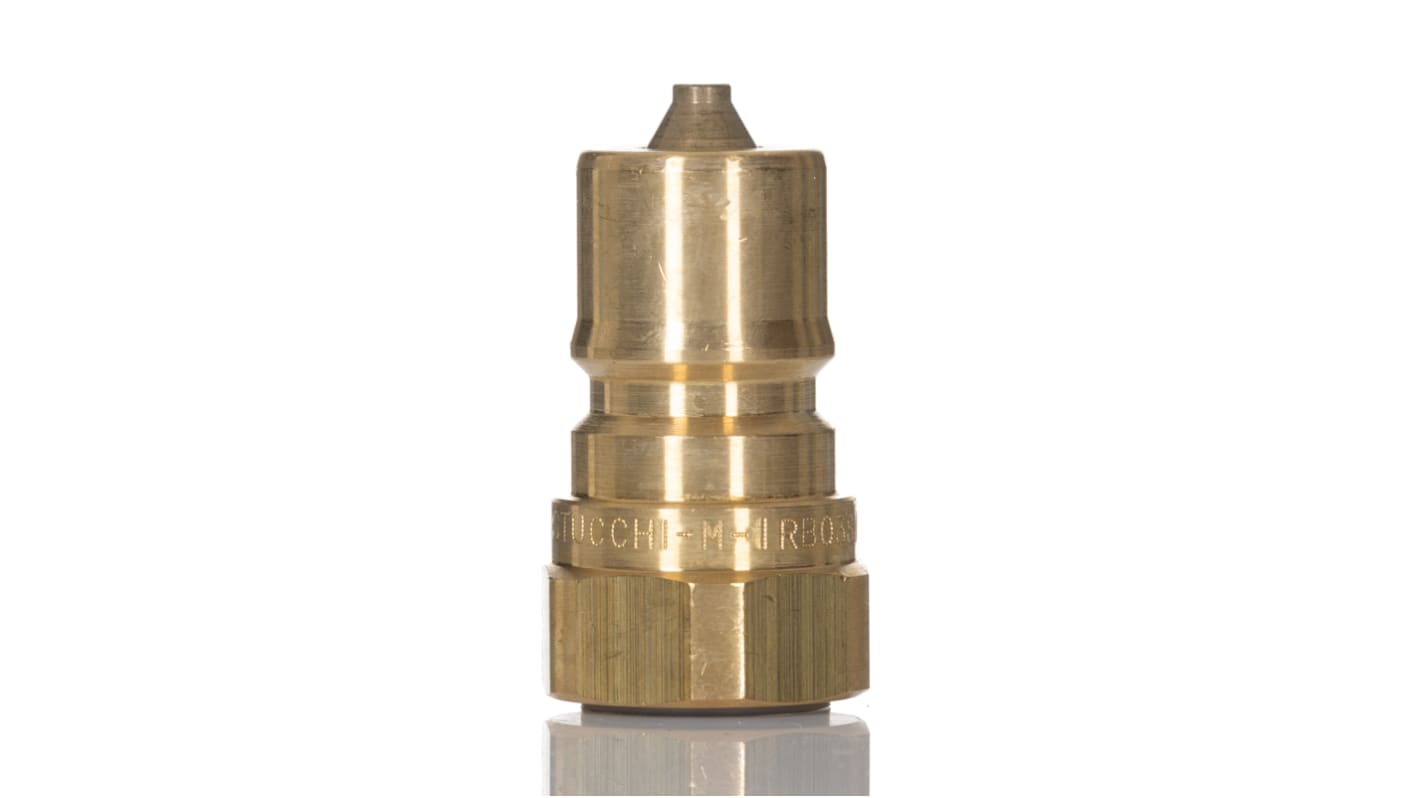

RS PRO Brass Male Hydraulic Quick Connect Coupling, BSP 3/8 Male
- RS-artikelnummer:
- 768-5822
- Tillverkare / varumärke:
- RS PRO
190 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
195,83 kr
(exkl. moms)
244,79 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 195,83 kr |
| 5 - 9 | 190,03 kr |
| 10 + | 183,46 kr |
- RS-artikelnummer:
- 768-5822
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- IT
Produktdetaljer
RS PRO 3/8in Brass Hydraulic Quick Connect Coupler
A hydraulic quick coupling incorporating a poppet valve and Steel locking balls enabling fluid flow to be shut off instantly in order to prevent hydraulic fluid leakage. Manufactured to ISO B standards the self sealing coupler is fully interchangeable with ISO 7241-1 series ’B’ couplers.
Constructed from strong and durable Brass with Steel springs and locking balls, an FKM fluorelastomer seal and PTFE anti-extrusion rings. The quick connect couple is hardwearing and suitable for temperature extremes of -15 to 180°C.
The Brass hydraulic coupler is easy to disconnect or connect and is designed for safe operation preventing disconnect in the event of residual pressure.
A tough and secure quick connect coupler suitable for a wide range of applications including hydraulic systems, fluid transfer, HVAC, agricultural and industrial machinery.
Features and Benefits
3/8in quick connect coupler
Male
Brass
Steel locking balls
FKM seal
PTFE anti-extrusion rings
Male
Brass
Steel locking balls
FKM seal
PTFE anti-extrusion rings
Standards and Approvals: ISO 7241-A
Warning: No attempt to connect or disconnect RS Quick Connect ISO B Brass Couplings should be made where pressure exists in the hydraulic circuit. Suitable protective equipment should be worn, such as RS Latex/Neoprene mix Duomix gloves (475-738), eye protection such as the Bolle Acetate Full Face Visor (740-1407) or similar.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Specifikationer
Attribute | Value |
|---|---|
| Thread | BSP 3/8 Male |
| Coupling Gender | Male |
| Thread Size | 3/8in |
| Material | Brass |
| Series | IRBO |
| Compatible With | ISO 7241-1-B |
| Type | Union |
| Locking Style | Ball Lock |
| Seal Material | FMK |
| Thread Standard | BSP |
| Thread Gender | Male |
| Maximum Operating Pressure | 160 bar |
| Maximum Operating Temperature | +180°C |
| Minimum Operating Temperature | -15°C |
