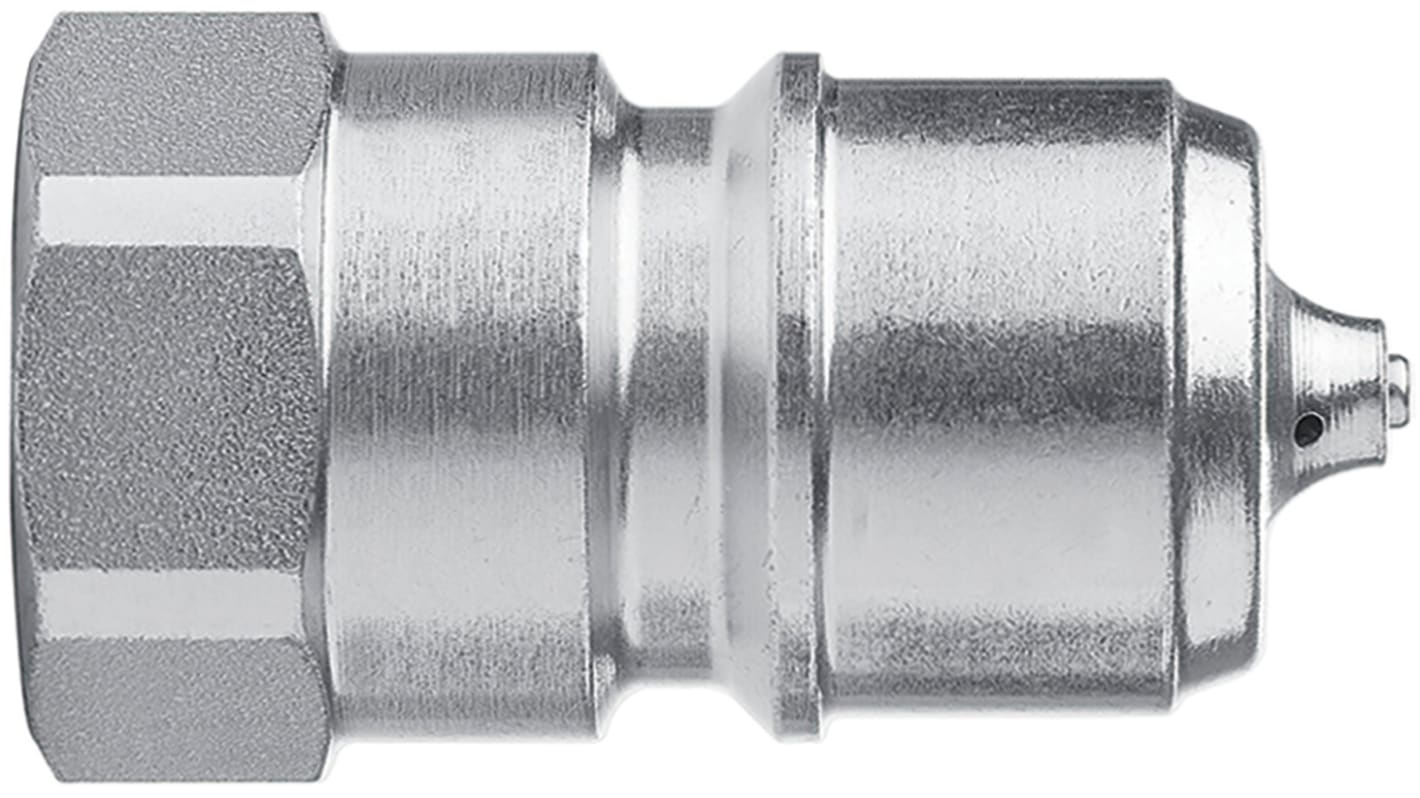

CEJN Steel Male Hydraulic Quick Connect Coupling
- RS-artikelnummer:
- 189-1745
- Tillv. art.nr:
- C105256239
- Tillverkare / varumärke:
- CEJN
2 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
867,54 kr
(exkl. moms)
1 084,42 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 867,54 kr |
| 5 - 9 | 832,86 kr |
| 10 + | 816,34 kr |
- RS-artikelnummer:
- 189-1745
- Tillv. art.nr:
- C105256239
- Tillverkare / varumärke:
- CEJN
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- SE
Produktdetaljer
Series 525 is a family of quick couplings for hydraulic systems. A manually operated locking ring provides extra security against involuntary disconnection. An extra option for Series 525 couplings and nipples is a pressure eliminator for evacuating residual pressure during connection. Both couplings and nipples are made of steel with Zinc-Nickel surface for maximum durability in tough applications and environments. The Series is also available in four other sizes: DN 6.3 (1/4"), DN 10 (3/8"), DN 12.5 (1/2") and DN 20 (3/4"). Available are also a version with viton seals and a free flow version (without valve package).
Manual locking ring for extra security
High durability
Optional pressure eliminator
High durability
Optional pressure eliminator
Specifikationer
Attribute | Value |
|---|---|
| Coupling Gender | Male |
| Thread Size | 1in |
| Material | Steel |
| Series | 525 |
| Type | Nipple |
| Seal Material | Nitrile Rubber |
| Thread Standard | BSPP |
| Thread Gender | Female |
| Maximum Operating Pressure | 250 bar |
| Maximum Operating Temperature | +205°C |
| Minimum Operating Temperature | -20°C |
