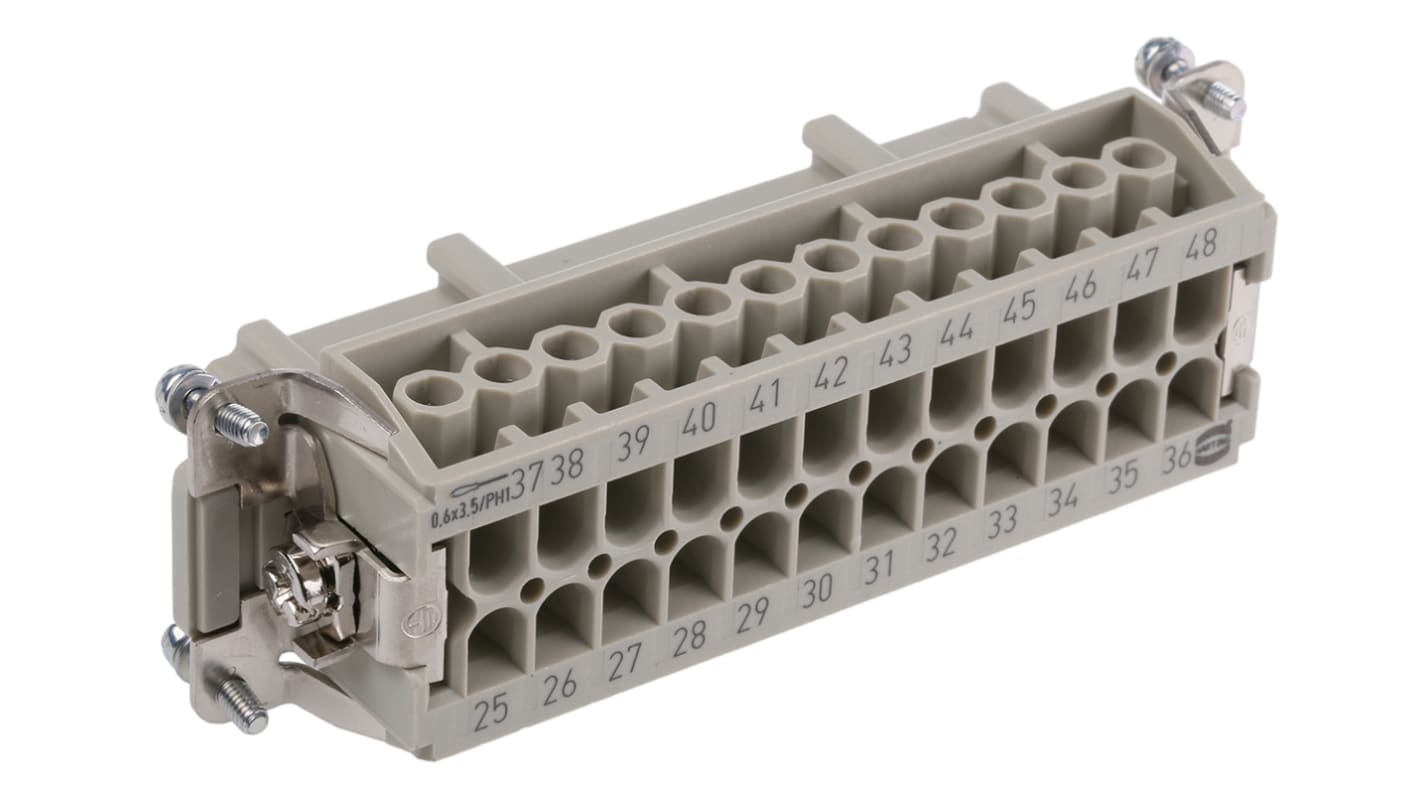

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han E Series, 24 Contacts
- RS-artikelnummer:
- 114-8428
- Tillv. art.nr:
- 09330242711
- Tillverkare / varumärke:
- HARTING
14 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
304,57 kr
(exkl. moms)
380,71 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 304,57 kr |
| 10 - 24 | 292,65 kr |
| 25 - 49 | 280,17 kr |
| 50 + | 268,03 kr |
- RS-artikelnummer:
- 114-8428
- Tillv. art.nr:
- 09330242711
- Tillverkare / varumärke:
- HARTING
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Han E® Inserts
• Poles: 6-48 (screw connection – wire csa 2.5mm²
• The 32 and 48 pole versions require two contact inserts per connector half; a standard insert numbered ’1 to 16’ or ’1 to 24’ pole insert (m) or (f) together with one numbered ’17 to 32’ or numbered ’25 to 48’ insert (m) or (f).
• These are identified in the price table - e.g. 32P + E (17 – 32)
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Approvals
UL, CSA, SEV
Han E® 16A Screw Series
These Han E® inserts are rated at 16A. They are intended for use with hoods and housings. All these hoods and housing ranges are associated to a specific Harting ’Size’ number identifier. See the ’compatibility’ table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.
Specifikationer
Attribute | Value |
|---|---|
| Current Rating | 16A |
| Gender | Female |
| Series | Han E |
| Type | Connector Insert |
| Number of Rows | 2 |
| Voltage Rating | 500 V |
| Number of Contacts | 24 |
| Body Orientation | Straight |
