- RS-artikelnummer:
- 223-1055
- Tillv. art.nr:
- M20050-1
- Tillverkare / varumärke:
- Antenova
292 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
201,51 kr
(exkl. moms)
251,89 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 201,51 kr |
10 - 24 | 193,74 kr |
25 - 99 | 187,31 kr |
100 - 249 | 183,10 kr |
250 + | 180,88 kr |
- RS-artikelnummer:
- 223-1055
- Tillv. art.nr:
- M20050-1
- Tillverkare / varumärke:
- Antenova
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

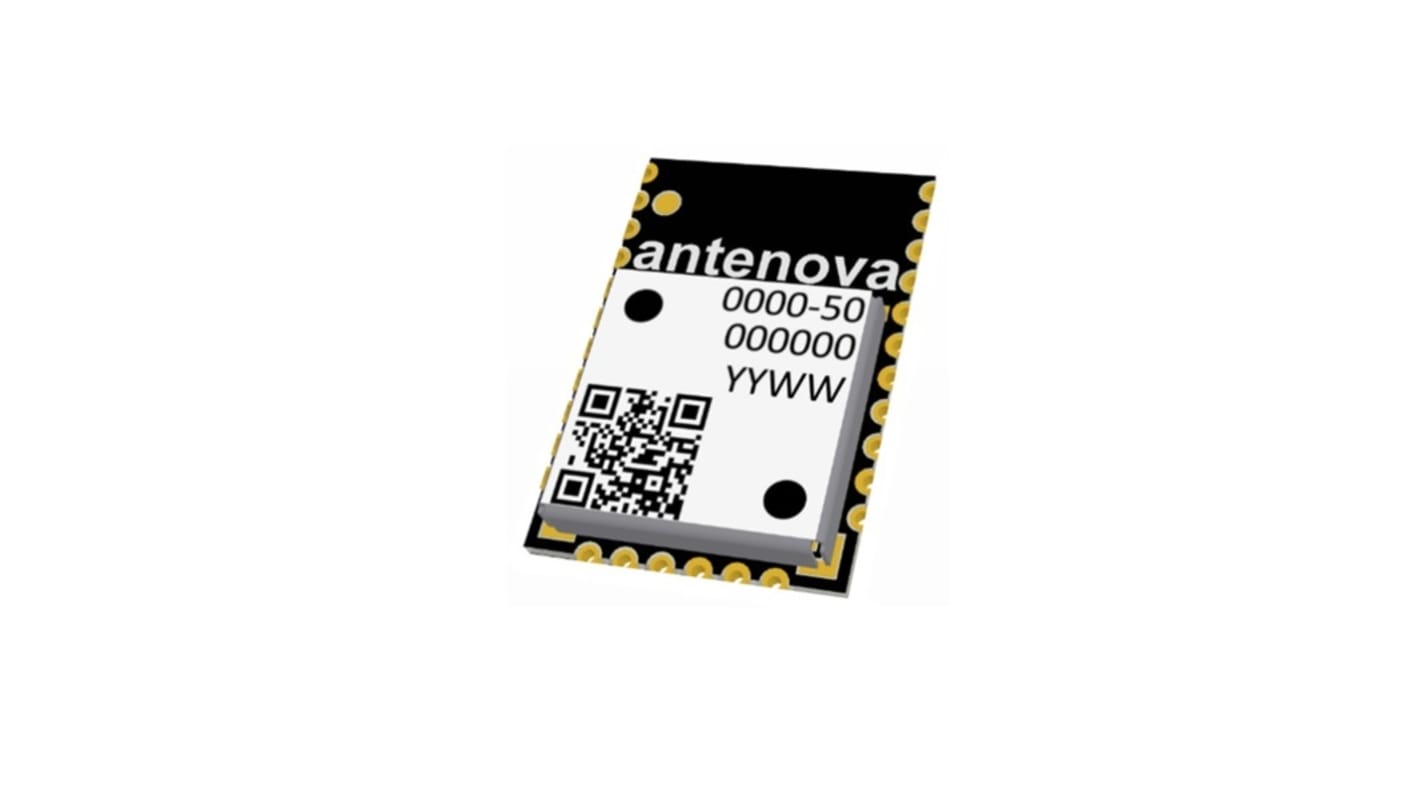

The Antenova compact GPS module receiver using the MediaTek MT3333 flash chip - providing a complete GNSS receiver for optimum performance. The module can run three GNSS systems simultaneously to enhance location and TTFF considerably. The M20050 operates on a versatile 2.8 V to 4.2 V supply with low power consumption and several low power modes for further power savings. An accurate 0.5 ppm TXCO ensures short TTFF. It offers indoor and outdoor multi-path detection and compensation.
Simple drop in solution full GNSS receiver (GPS/GLONASS/GALILEO/BEIDOU)
MediaTek MT3333 Flash chip
Ultra-small SMD package 13.8 x 9.5 x 1.8 mm
Low current consumption
MediaTek MT3333 Flash chip
Ultra-small SMD package 13.8 x 9.5 x 1.8 mm
Low current consumption
Specifikationer
Attribute | Value |
---|---|
Supported Bus Interfaces | UART |
Number of Channels | 22 Tracking, 66 Acquisition, 210 PRN |
Acquisition Sensitivity | -148 → -163dBm |
Tracking Sensitivity | -165dBm |
Dimensions | 13.8 x 9.5 x 1.8mm |
