McLennan Servo Supplies Planetary Gearbox, 25:1 Gear Ratio, 24 Nm Maximum Torque

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

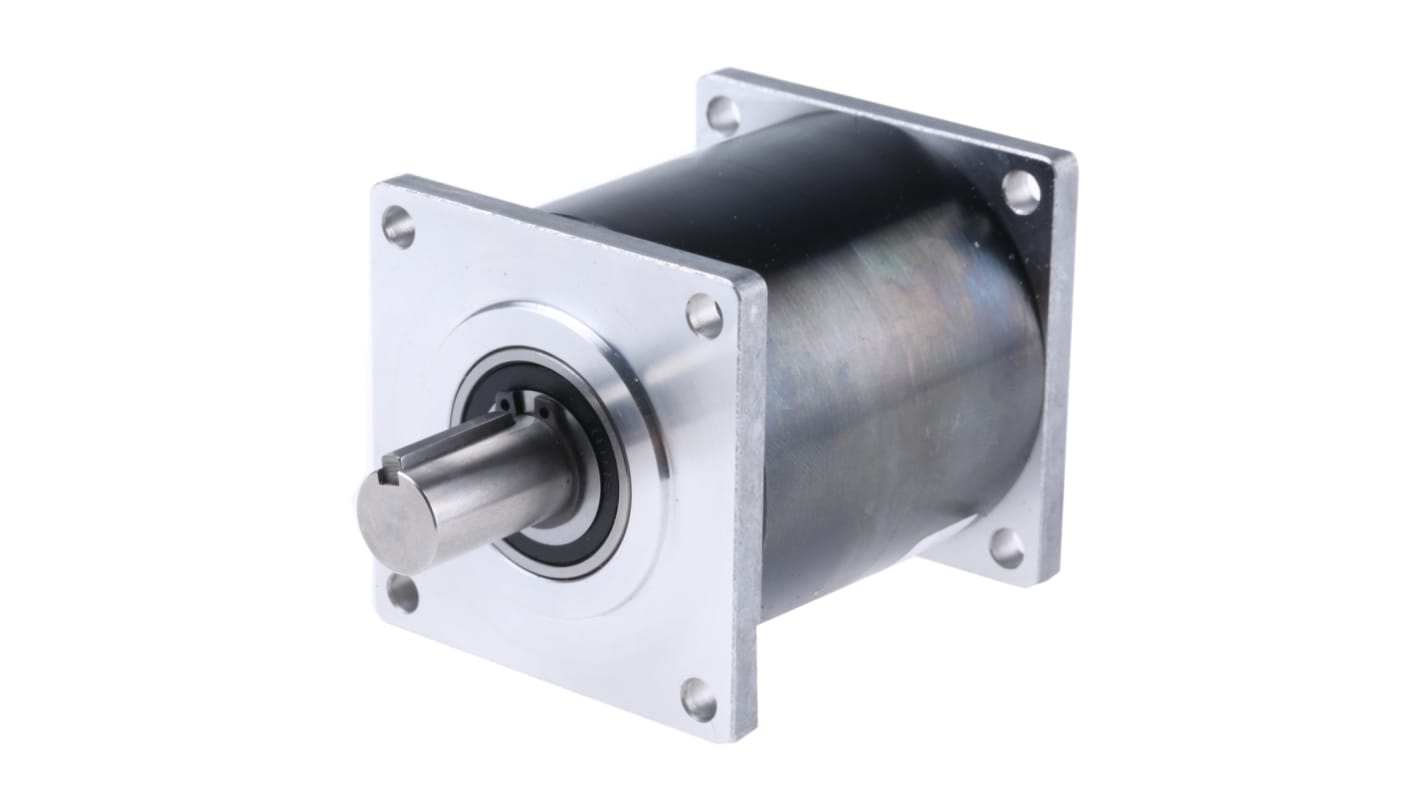

Planetary Gearheads Series 57

Industrial type of gearhead for fixing to a wide range of motors
Planetary construction for high torque and compact dimensions
NEMA size 23 frame size
Reduced backlash
Supplied with two pinions
Fixing kits required for attachment to motors
Ideal for industrial, process or scientific applications which require high dynamics, accurate velocity or positional control

Fixing Kits

These kits are used to attach the Series 57 industrial planetary gearheads to a range of motors.
The kit consists of a fitting clamp, adaptor and fitting screws.

Note

De-rate ratio 10:1 (stock no. 363-6315) by 10%.

0.9° and 1.8° Hybrid Stepper Motors

1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.,Applications include:

Robotics
Paper feed mechanisms
Teletype printers
Small machine tools
Computer peripherals
X-Y plotters

Specifikationer
Attribute Value
Gear Ratio 25:1
Gearbox Type Planetary
Maximum Output Torque 24 Nm
Shaft Diameter 12.69mm
Diameter 57 mm
Overall Length 66mm
7 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 152,88 kr
(exkl. moms)
2 691,10 kr
(inkl. moms)
Enheter
Per unit
1 +
2 152,88 kr
Related Products
These gearheads are designed to fit Panasonic 3 ...
Description:
These gearheads are designed to fit Panasonic 3 Series 60W (and 90W) AC single and three phase motors. The flange offers improved mounting that is often required for the higher powered motors. Grease-lubricated gearboxes10000hr lifeQuiet operationClass B motor insulation.
Low to medium power dc. motors fitted with ...
Description:
Low to medium power dc. motors fitted with a square mounting flange, centring bush and drive pinion. This allows simple and quick attachment to a 65mm square gearbox. All motors have sintered bronze bearings lubricated for life32mm diameter motors have ...
2 and 3 shaft right angle drive boxes ...
Description:
2 and 3 shaft right angle drive boxes with 1:1 and 2:1 speed ratios. Shafts are machined with keyways to DIN standardsAll gearboxes are supplied correctly filled lubricant retained by seals, which remain functional under normal operating conditions2 shaft version ...
Suitable for motion, movement or positioning applications, where ...
Description:
Suitable for motion, movement or positioning applications, where the user can select the drive or gearbox unit to be fitted. These gearheads can be fitted to a wide range of motors.
