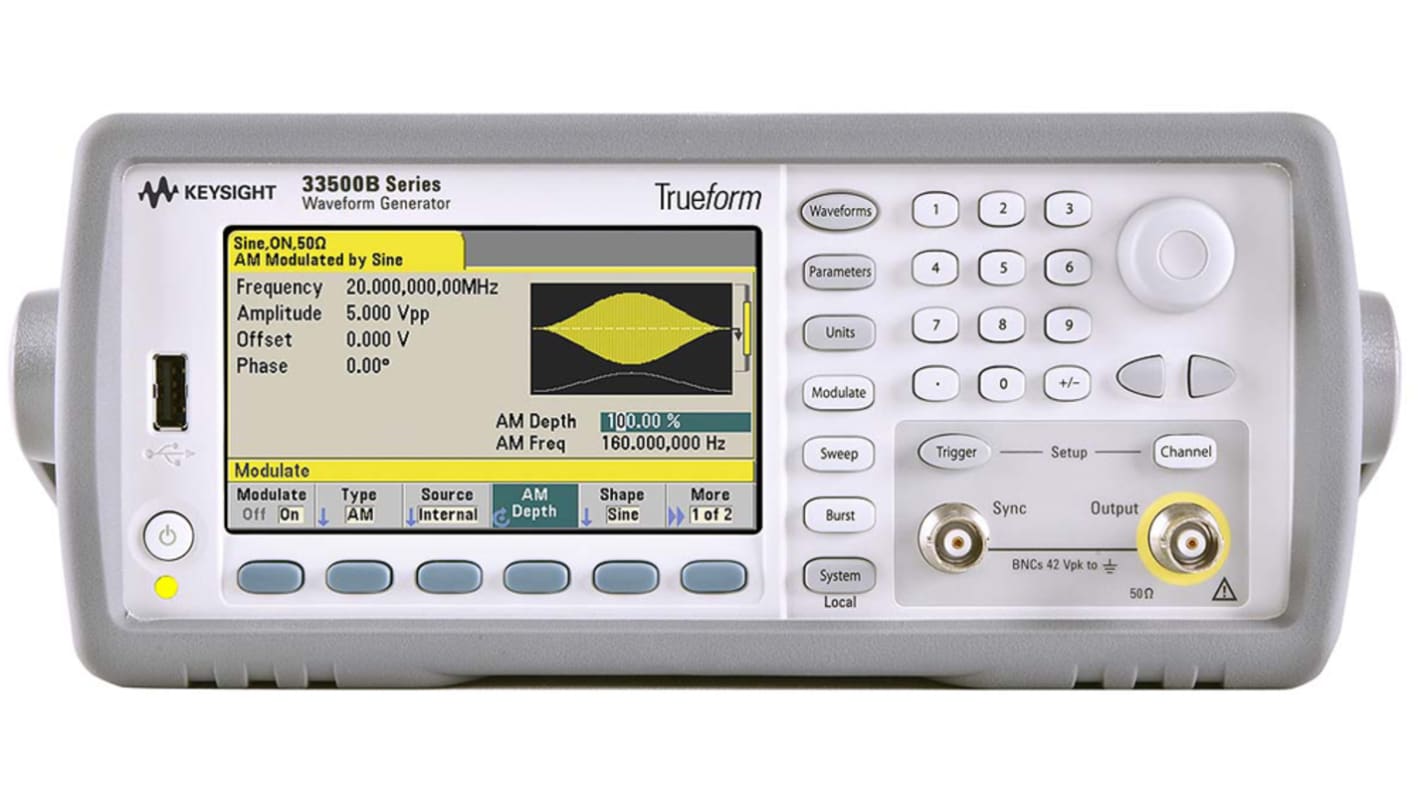

Keysight Technologies 33509B Function Generator 20MHz (Sinewave) Ethernet, GPIB, LAN, USB With RS Calibration
Tillfälligt slut i lager – restorder för leverans 2021-02-01
Lagt till varukorgen
- RS-artikelnummer:
- 761-0994
- Tillv. art.nr:
- 33509B
- Tillverkare / varumärke:
- Keysight Technologies
- COO (Country of Origin):
- MY
| Enheter | Per unit |
| 1 + | 18 435,00 kr |
Keysight 33500B Series Waveform Generators
| Attribute | Value |
| Maximum Frequency Range Sinewave | 20MHz |
| Calibrated | RSCAL |
| Minimum Frequency Range Sinewave | 1µHz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 20MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz |
| Maximum Frequency Range Triangle/Saw | 20kHz |
| Minimum Frequency Range Triangle/Saw | 1µHz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Time Base Accuracy | ±0.1ppm |
| Width | 212.8mm |
| Minimum Operating Temperature | 0°C |
| Output Amplitude | 20V Pk-Pk |
| Maximum Operating Temperature | +55°C |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 20 MHz |
| Interface Type | Ethernet, GPIB, LAN, USB |
| Dimensions | 272.3 x 212.8 x 88.3mm |
| Length | 272.3mm |
| Plug Type | Europe, UK |
| Weight | 3.3kg |
| Model Number p | 33509B |
| Input Impedance | 5 kΩ |
| Height | 88.3mm |
| Output Impedance | 50Ω |
