Aim-TTi PFM3000 Frequency Counter 3GHz UKAS Calibration

  • RS-artikelnummer 498-753
  • Tillv. art.nr PFM3000
  • Tillverkare / varumärke Aim-TTi
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

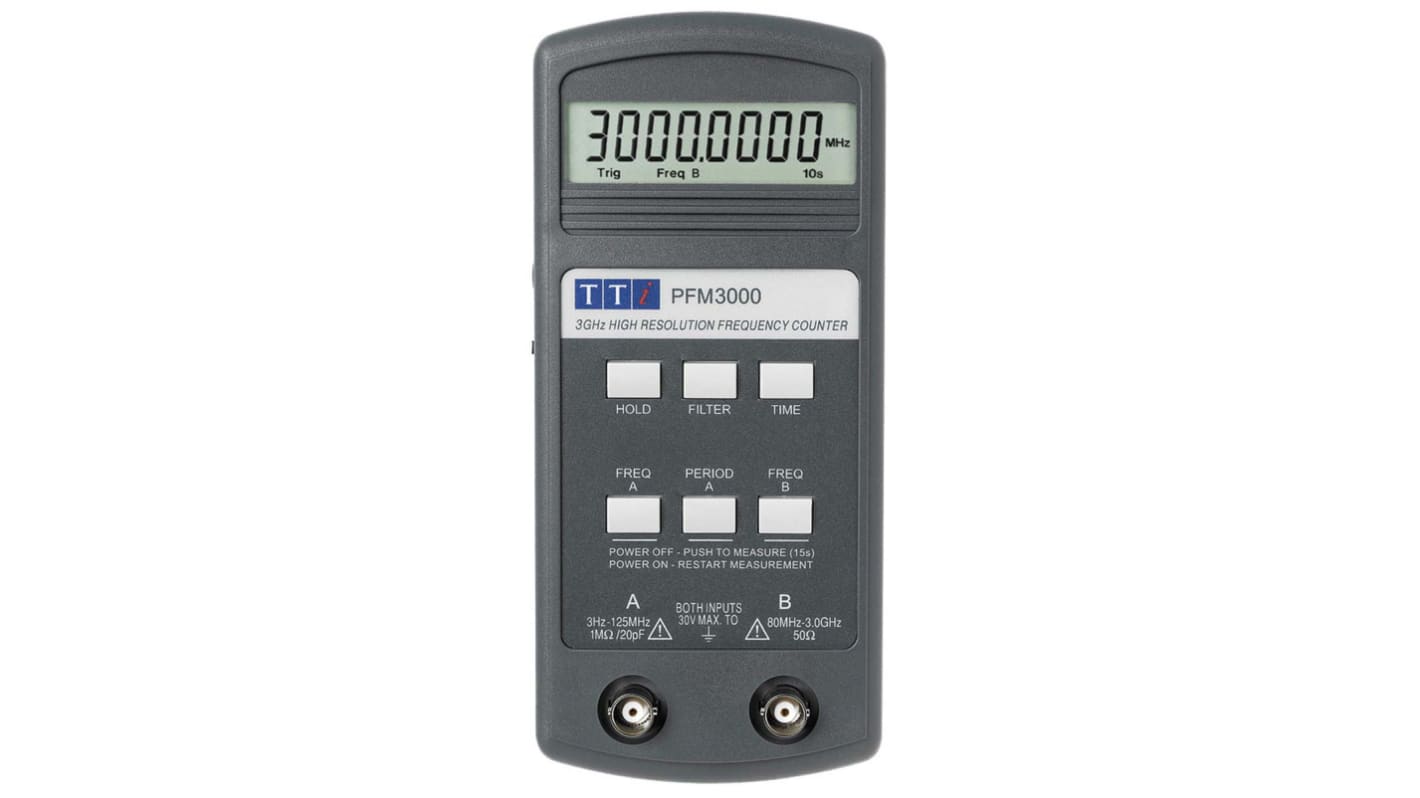

Aim-TTi Frequency Counter PFM3000 3.0GHz Handheld Reciprocal Counting

A sophisticated counter with a large LCD display that uses a reciprocal counting measurement technique to achieve fast response and high resolution at all frequencies.

Wide frequency range of <3Hz to >3000MHzHigh sensitivity across the frequency bandHigh impedance measurement up to 125MHzPeriod measurement from 8ns to 330ms8 digits of resolution at 1 sec. measurementLow pass filter for noise suppressionData hold function to freeze display readingLong battery life and push-to-measure functionPowered by PP3 Alkaline battery; Stock no. 394-9059 (not supplied)

Supplied with

user manual

Aim-TTi Frequency Counter

The Aim-TTi frequency counter PFM3000 offers high sensitivity frequency measurement from 3Hz to more than 3GHz. It also performs period measurement from 8ns to 330ms. This frequency counter uses a continuous reciprocal measurement technique to provide high resolution at all the frequencies with a rapid update. It offers high sensitivity across the whole frequency range. A low pass filter reduces high-frequency signal noise at lower frequencies.

Features and Benefits


3Hz to 3000MHz in two overlapping ranges
• High input sensitivity over the full frequency range
• High impedance measurement up to 125MHz
• Period measurement from 3Hz to 125MHz
• Selectable measurement time and display hold function
• Large 8.5-digit display with full range of annunciators
• Battery operation handheld format with tilt-stand
• Push-to-measure function with auto power-down

Applications


Data communication
• Embedded systems
• RF and microwaves
• Laboratories

Certifications


EN61010-1
• EN61326

Specifikationer
Attribute Value
Maximum Frequency 3GHz
Minimum Frequency 3 Hz
Resolution 6 Digit
Calibrated UKAS
Maximum Internal Counter 188888888
Maximum Input Voltage 30V ac/dc
Input Impedance 1 MΩ, 50 Ω
Measurement Time 10s
Dimensions 178 x 81 x 30mm
Model Number p PFM3000
Height 30mm
Maximum Operating Temperature +40°C
Weight 190g
Length 178mm
Width 81mm
Minimum Operating Temperature +5°C
6 I lager för leverans inom 3-5 arbetsdagar
Pris (ex. moms) Each
2 690,82 kr
(exkl. moms)
3 363,52 kr
(inkl. moms)
Enheter
Per unit
1 +
2 690,82 kr
Nästa dag-leverans inte möjlig
