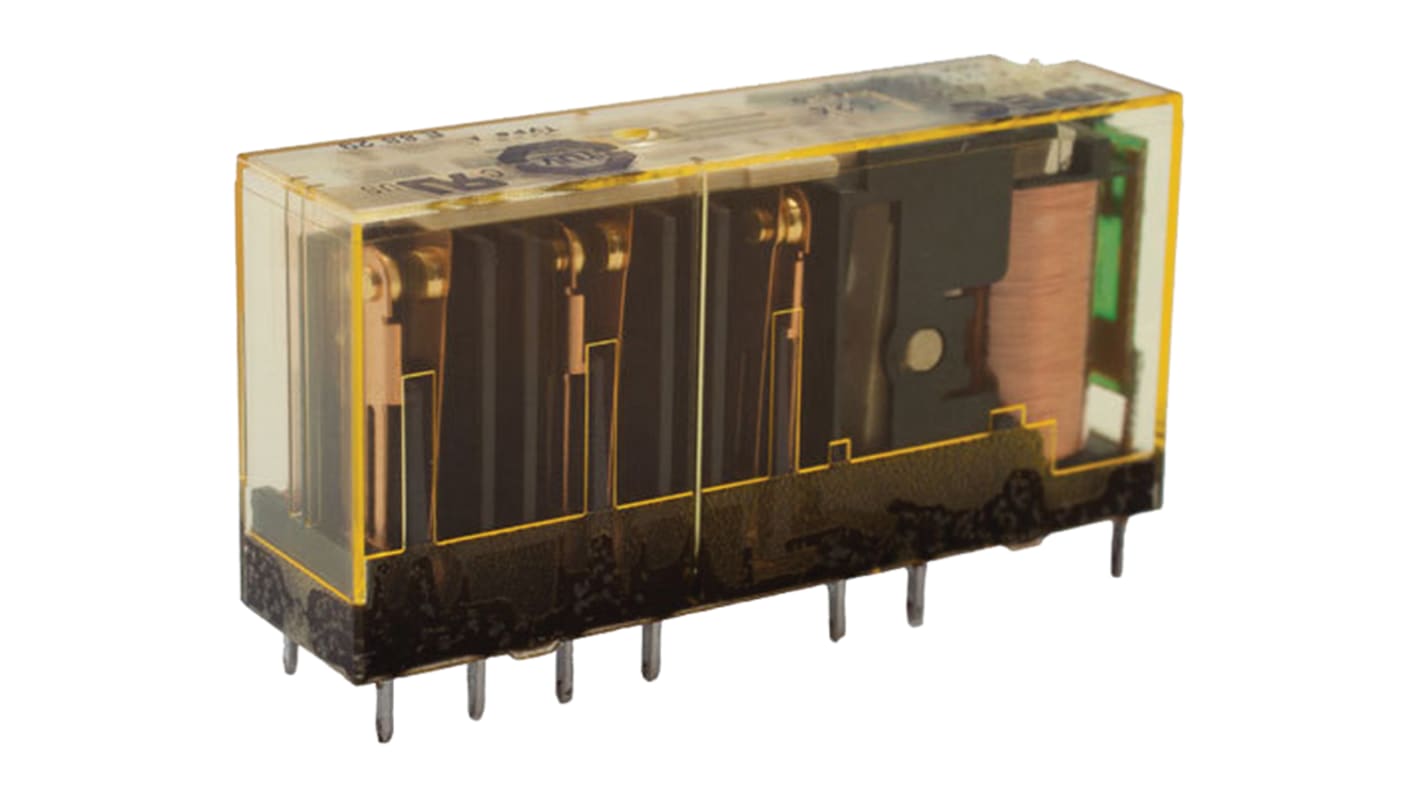

Idec PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 5PDT

RS-artikelnummer:: 838-2789
Tillv. art.nr:: RF1V-5A1BL-D24
Tillverkare / varumärke:: Idec

Idec PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 5PDT

2 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

339,47 kr

(exkl. moms)

424,34 kr

(inkl. moms)

Enheter	Per unit
1 - 9	339,47 kr
10 - 24	320,17 kr
25 - 49	308,19 kr
50 - 99	297,54 kr
100 +	286,79 kr

RS-artikelnummer:: 838-2789
Tillv. art.nr:: RF1V-5A1BL-D24
Tillverkare / varumärke:: Idec

Datablad

Datasheet

Lagstiftning och ursprungsland

Produktdetaljer

RF1V Series

RF1V series force guided relays used in safety circuits in combination with interlock switches, light curtains, and emergency stop switches to control outputs. They can also be used to expand outputs for safety relay modules and safety controllers.

Force guided contact mechanism
4-pole or 6-pole versions available
Built-in LED indicator available
Fast response time (8 ms maximum)
High shock resistance
Finger-safe DIN rail mount socket and PCB mount socket
Operating temperature -40 ºC to +85 ºC

Specifikationer

Attribute	Value
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	5PDT
Number of Poles	6
Coil Resistance	1.152 kΩ
Switching Current	6A
Coil Power	500mW
Maximum Switching Current AC	6 A
Maximum Switching Current DC	6 A
Maximum Switching Voltage DC	30V
Maximum Switching Voltage AC	250V
Terminal Type	PCB Pin
Height	24mm
Maximum Switching Power AC	1.54 kVA
Life	100000 (Electrical) Operations, 10000000 (Mechanical) Operations
Contact Material	Silver Alloy
Minimum Operating Temperature	-40°C
Length	50mm
Series	RF1V
Isolation Coil To Contact	4kV ac
Maximum Operating Temperature	+85°C
Maximum Switching Power DC	180 W
Depth	13mm
