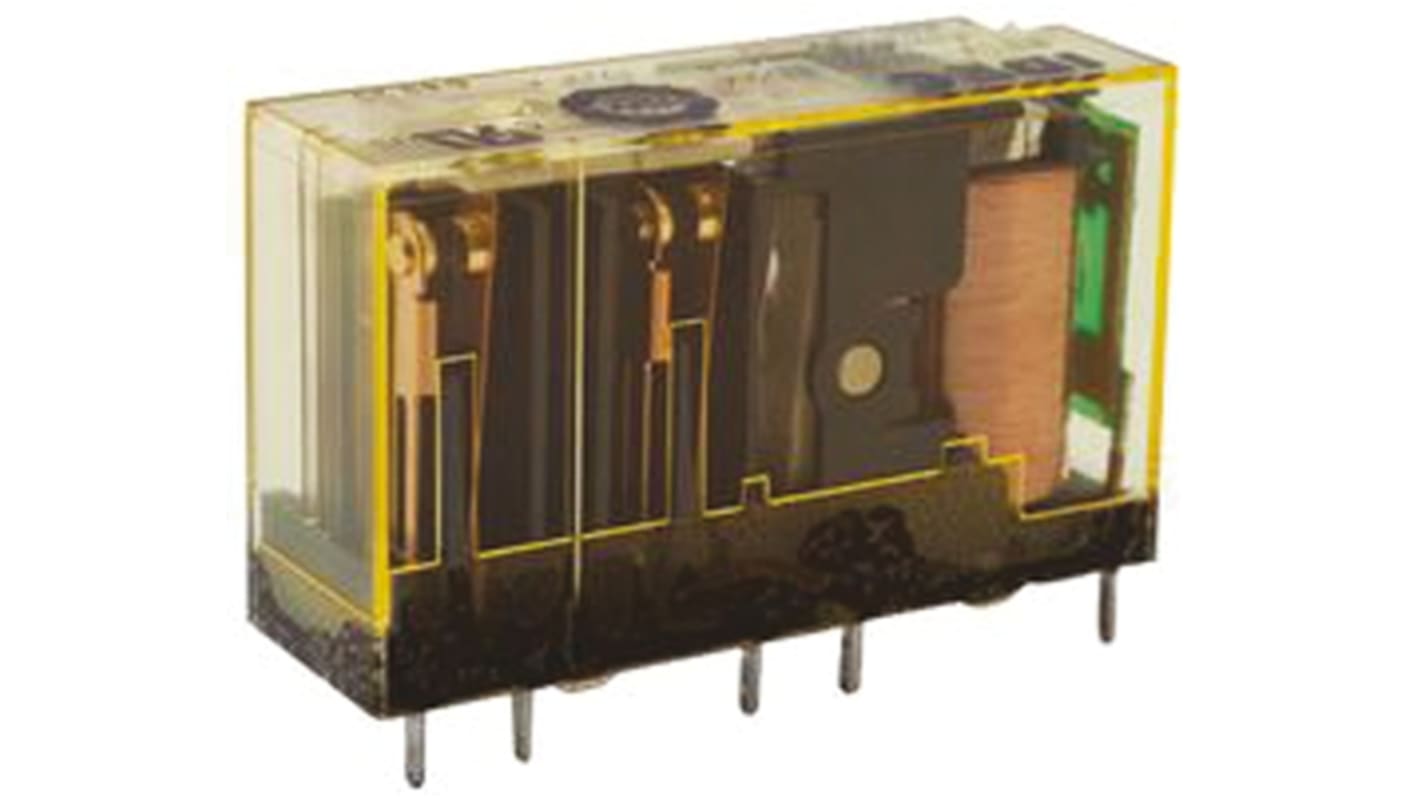

Idec PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, DPDT
- RS-artikelnummer:
- 813-4690
- Tillv. art.nr:
- RF1V-2A2BL-D24
- Tillverkare / varumärke:
- Idec
Tillfälligt slut i lager – restorder för leverans 2025-05-22
Lagt till varukorgen
Pris (ex. moms) Varje
330,30 kr
(exkl. moms)
412,88 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 330,30 kr |
- RS-artikelnummer:
- 813-4690
- Tillv. art.nr:
- RF1V-2A2BL-D24
- Tillverkare / varumärke:
- Idec
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
RF1V Series
RF1V series force guided relays used in safety circuits in combination with interlock switches, light curtains, and emergency stop switches to control outputs. They can also be used to expand outputs for safety relay modules and safety controllers.
Force guided contact mechanism
4-pole or 6-pole versions available
Built-in LED indicator available
Fast response time (8 ms maximum)
High shock resistance
Finger-safe DIN rail mount socket and PCB mount socket
Operating temperature -40 ºC to +85 ºC
4-pole or 6-pole versions available
Built-in LED indicator available
Fast response time (8 ms maximum)
High shock resistance
Finger-safe DIN rail mount socket and PCB mount socket
Operating temperature -40 ºC to +85 ºC
Specifikationer
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Contact Configuration | DPDT |
| Number of Poles | 4 |
| Coil Resistance | 1.6 kΩ |
| Switching Current | 6A |
| Maximum Switching Current AC | 6 A |
| Coil Power | 360mW |
| Maximum Switching Current DC | 6 A |
| Maximum Switching Voltage DC | 30V |
| Maximum Switching Voltage AC | 250V |
| Terminal Type | PCB Pin |
| Isolation Coil To Contact | 4kV ac |
| Maximum Operating Temperature | +85°C |
| Maximum Switching Power AC | 1.5 kVA |
| Life | 100000 Operations |
| Length | 40mm |
| Maximum Switching Power DC | 180 W |
| Depth | 13mm |
| Series | RF1V |
| Minimum Operating Temperature | -40°C |
| Height | 24mm |
| Contact Material | Silver Alloy |
