SMC, 100 L/min Flow Controller, M12 Connector, PNP, 12 → 24 V dc, 3 Digit 7 Segment LED

  • RS-artikelnummer 912-1011
  • Tillv. art.nr PF2A711-F03-67
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

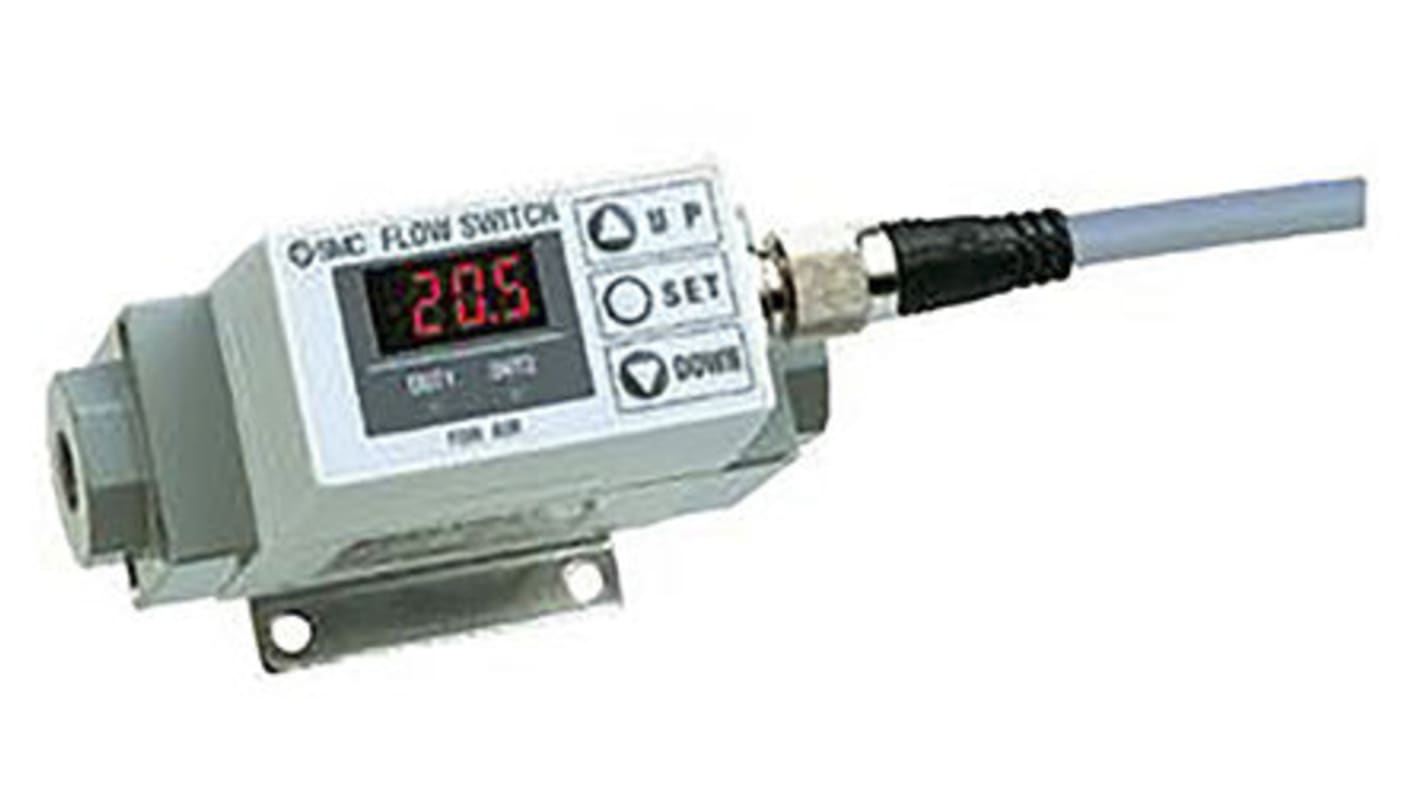

PF2A Air Flow Switch

In-line thermal flow switch with digital display and two outputs. The outputs can be set to switch when a specific flow rate or volume is reached, or they can provide a pulse for every 0.1 - 5 litre of flow volume depending on model.

Very low pressure loss
Red 3-digit LED display can be rotated through 270°
2 switched PNP outputs
Key lock feature
No moving parts
Easy installation
Environmental protection to IP65

Specifikationer
Attribute Value
Maximum Flow Rate 100 L/min
Electrical Connection M12 Connector
Control Output PNP
Supply Voltage 12 → 24 V dc
Display Screen 3 Digit 7 Segment LED
Pipe Diameter Range 3/8
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Series PF2A
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each
4 643,62 kr
(exkl. moms)
5 804,52 kr
(inkl. moms)
Enheter
Per unit
1 +
4 643,62 kr
Nästa dag-leverans inte möjlig
