Finder 7F Series Filter Fan, 120 V ac, AC Operation, 24m³/h Filtered, IP54, 120 x 120mm
- RS-artikelnummer:
- 184-9897
- Tillv. art.nr:
- 7F.20.8.120.1020
- Tillverkare / varumärke:
- Finder
Tillfälligt slut i lager – restorder för leverans 2024-08-30
Lagt till varukorgen
Pris (ex. moms) Varje
727,04 kr
(exkl. moms)
908,80 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 727,04 kr |
| 5 + | 690,69 kr |
- RS-artikelnummer:
- 184-9897
- Tillv. art.nr:
- 7F.20.8.120.1020
- Tillverkare / varumärke:
- Finder
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IT
Produktdetaljer

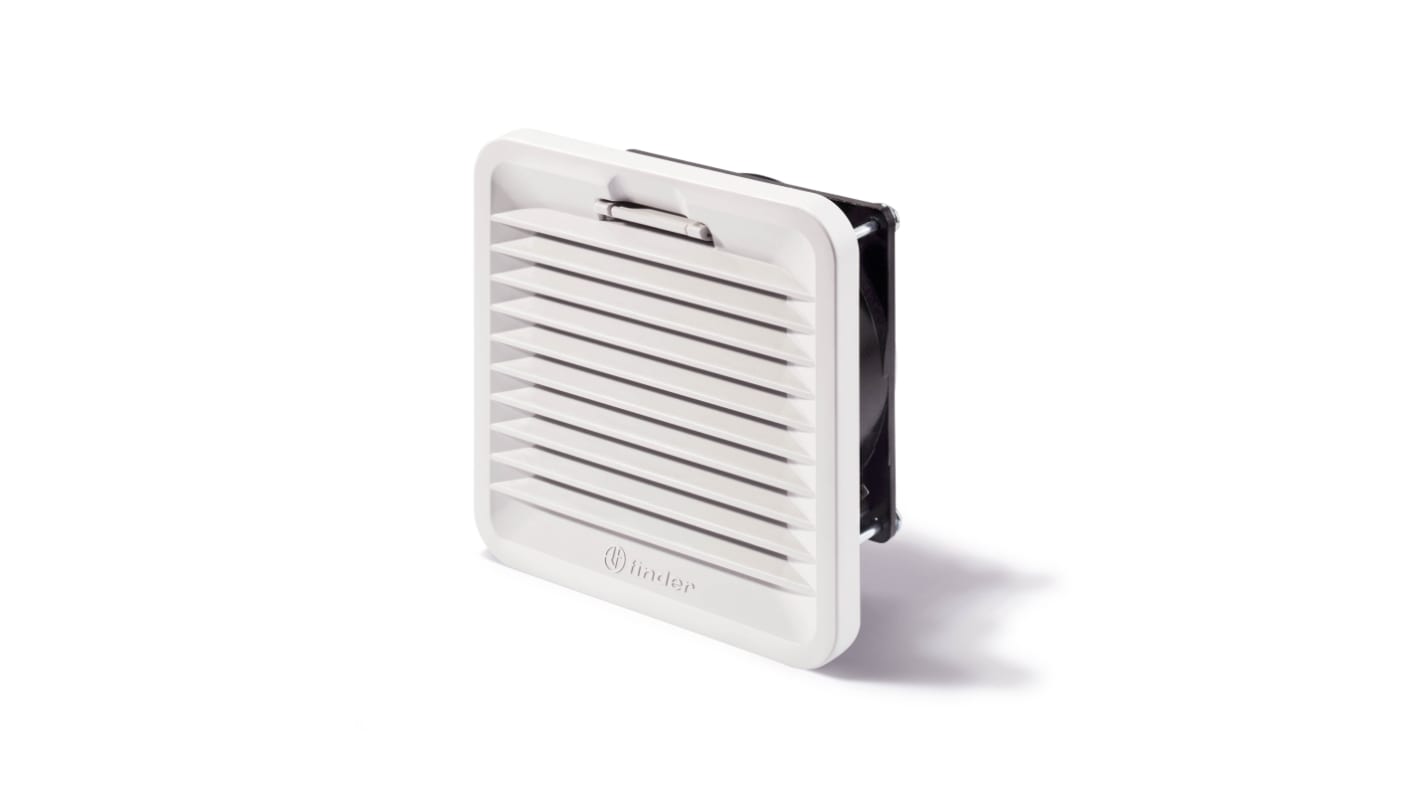

Filter Fan for electrical cabinets and enclosures 120 V or 230 V AC versions.
Very low acoustic noise
Minimal depth within enclosure
Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet)
Air volume (24...630) m³/h (free flow)
Operating voltage: 24 VDC, 120 V AC, 230 V AC
Air conditioners
Automatic car-washes
Carousel warehouses
Control panels
Minimal depth within enclosure
Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet)
Air volume (24...630) m³/h (free flow)
Operating voltage: 24 VDC, 120 V AC, 230 V AC
Air conditioners
Automatic car-washes
Carousel warehouses
Control panels
Specifikationer
Attribute | Value |
|---|---|
| Noise Level | 27dB(A) |
| Filtered Air Flow | 24m³/h |
| Input Current | 230mA |
| Input Power Rating | 17W |
| AC or DC Operation | AC |
| Face Dimensions | 120 x 120mm |
| Installation Depth | 54.4mm |
| Supply Voltage | 120 V ac |
| Face Height | 120mm |
| Face Width | 120mm |
| IP Rating | IP54 |
| Bearing Type | Ball |
| Series | 7F |
| Termination Type | Wire |
| Special Features | Very Low Acoustic Noise, Minimal Depth within Enclosure |
