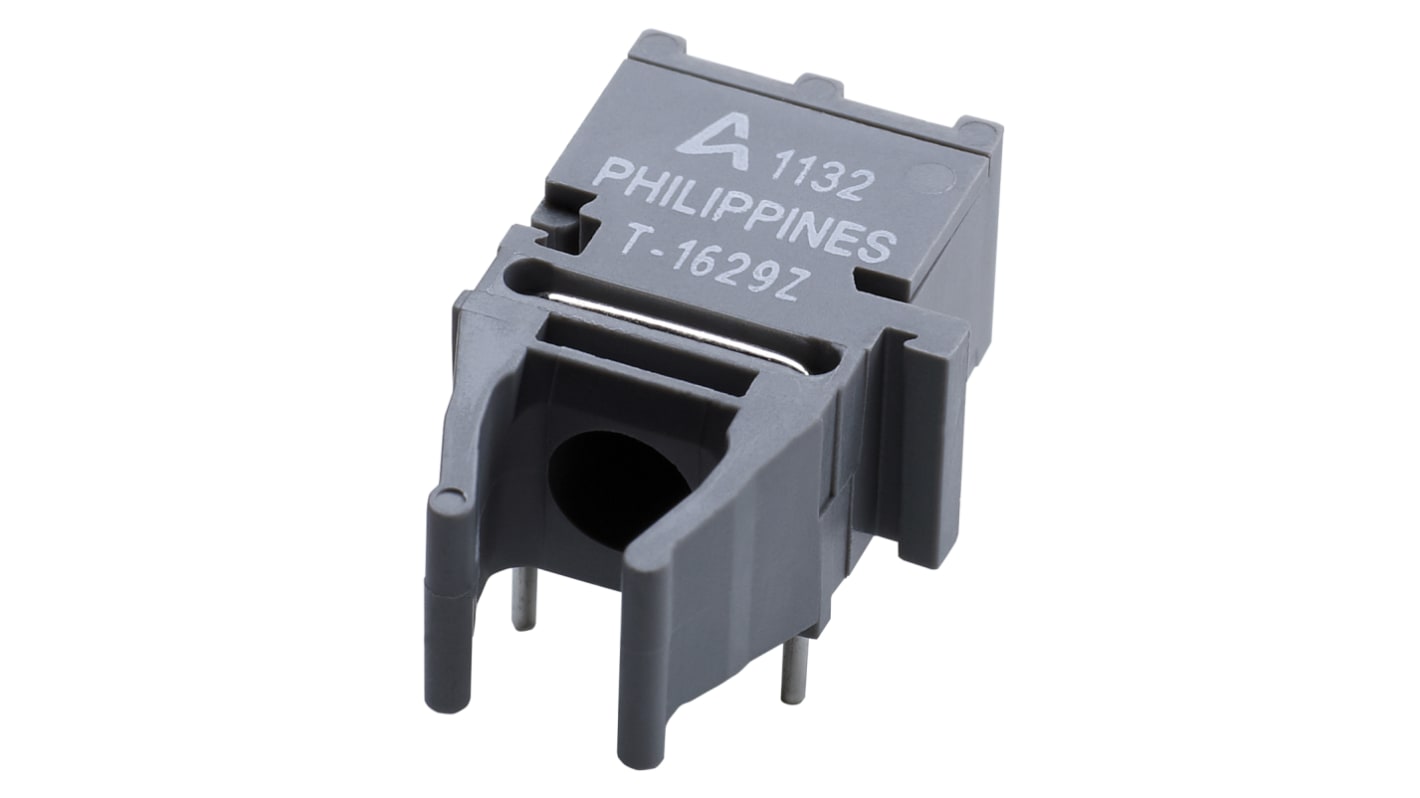

Broadcom AFBR-1629Z Fibre Optic Transceiver, Versatile Link Connector, 50MBd, 685nm 6-Pin
- RS-artikelnummer:
- 830-5016
- Tillv. art.nr:
- AFBR-1629Z
- Tillverkare / varumärke:
- Broadcom
4 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
222,47 kr
(exkl. moms)
278,09 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 222,47 kr |
| 5 - 9 | 217,03 kr |
| 10 - 99 | 211,49 kr |
| 100 - 199 | 149,60 kr |
| 200 + | 140,62 kr |
- RS-artikelnummer:
- 830-5016
- Tillv. art.nr:
- AFBR-1629Z
- Tillverkare / varumärke:
- Broadcom
Lagstiftning och ursprungsland
Produktdetaljer
AFBR-16xxZ Series Fibre Optic Transmitters
The AFBR-16xxZ transmitter, from Avago Technologies, makes use of a 650nm light emitting diode (LED) source with integrated optics and driver IC for efficient joining with a 1mm polymer optical fibre (POF). The AFBR-16xxZ input is also compatible with TTL logic families. The 3-pin transmitter is packaged in the Versatile Link housing which allows them to be interlocked (N-plexed together) to optimize space and to provide dual connections with the duplex connectors.
The AFBR-16xxZ transmitter and AFBR-26x4Z/25x9Z receivers operate any signal from DC to:
50MBd at up to 50m with 1mm POF,
10MBd at up to 200m
50MBd at up to 120m with 200μm Plastic-Clad Silica (PCS)
50MBd at up to 50m with 1mm POF,
10MBd at up to 200m
50MBd at up to 120m with 200μm Plastic-Clad Silica (PCS)
Fibre Optics, Avago Technologies
Specifikationer
Attribute | Value |
|---|---|
| Maximum Data Rate | 50MBd |
| Connector Shape | Rectangular |
| Transmitter Typical Rise Time | 5ns |
| Transmitter Typical Fall Time | 5ns |
| Number of Pins | 6 |
| Mounting Type | Through Hole |
| Dimensions | 18.8 x 12.19 x 7.62mm |
| Connector Type | Versatile Link |
| Peak Transmitter Wavelength | 685nm |
| Height | 7.62mm |
| Length | 18.8mm |
| Width | 12.19mm |
| Series | Versatile Link |
