- RS-artikelnummer:
- 239-2704
- Tillv. art.nr:
- AFBR-57B4APZC
- Tillverkare / varumärke:
- Broadcom
16 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
831,31 kr
(exkl. moms)
1 039,14 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 831,31 kr |
5 - 9 | 778,19 kr |
10 + | 721,52 kr |
- RS-artikelnummer:
- 239-2704
- Tillv. art.nr:
- AFBR-57B4APZC
- Tillverkare / varumärke:
- Broadcom
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PH
Produktdetaljer

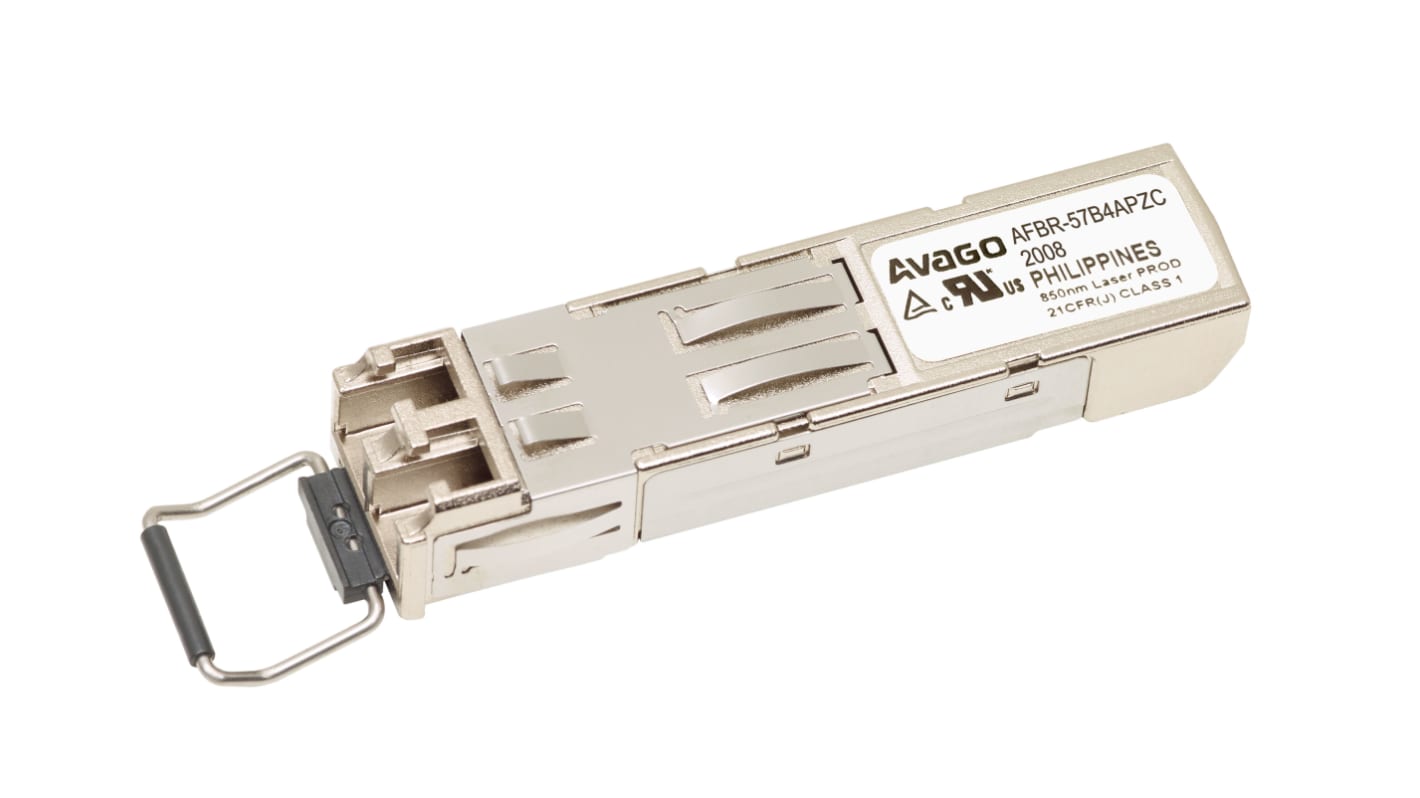

The Broadcom SFP transceiver provides system designers the ability to implement DC-50 MBaud data transmission over 2 km with (62.5 μm/125 μm) multimode fibers. The transceiver supports LC duplex connector and is lead free, RoHS compliant. Using the 2-wire serial interface defined in the SFF-8472 MSA, the AFBR-57B4APZC provides real-time information on module temperature, transmitter supply voltage and receiver average input power.
Data rate support from DC to 50 MBaud
Single 3.3V power supply
Manufactured in an ISO 9001 certified facility
850 nm VCSEL transmitter
Link distance up to 2 km with 62.5 μm/125 μm multimode fiber
Low current and low power dissipation
Hot pluggable SFP connector
Compatible with SFP MSA specification
Class 1 FDA IEC60825-1 laser safety compliant
Operating temperature –40°C to +85°C
Excellent EMI and EMC behaviour
Integrated 850 nm VCSEL and driver IC with LVTTL input logic transmitter
Integrated PIN diode and digitalizing IC with LVTTL output logic receiver
Harsh environment tested according to IEC 60068-2-11 and GR-63-CORE
Single 3.3V power supply
Manufactured in an ISO 9001 certified facility
850 nm VCSEL transmitter
Link distance up to 2 km with 62.5 μm/125 μm multimode fiber
Low current and low power dissipation
Hot pluggable SFP connector
Compatible with SFP MSA specification
Class 1 FDA IEC60825-1 laser safety compliant
Operating temperature –40°C to +85°C
Excellent EMI and EMC behaviour
Integrated 850 nm VCSEL and driver IC with LVTTL input logic transmitter
Integrated PIN diode and digitalizing IC with LVTTL output logic receiver
Harsh environment tested according to IEC 60068-2-11 and GR-63-CORE
Specifikationer
Attribute | Value |
---|---|
Maximum Data Rate | 50000kbps |
Connector Shape | Rectangular |
Transmitter Typical Rise Time | 5ns |
Transmitter Typical Fall Time | 3ns |
