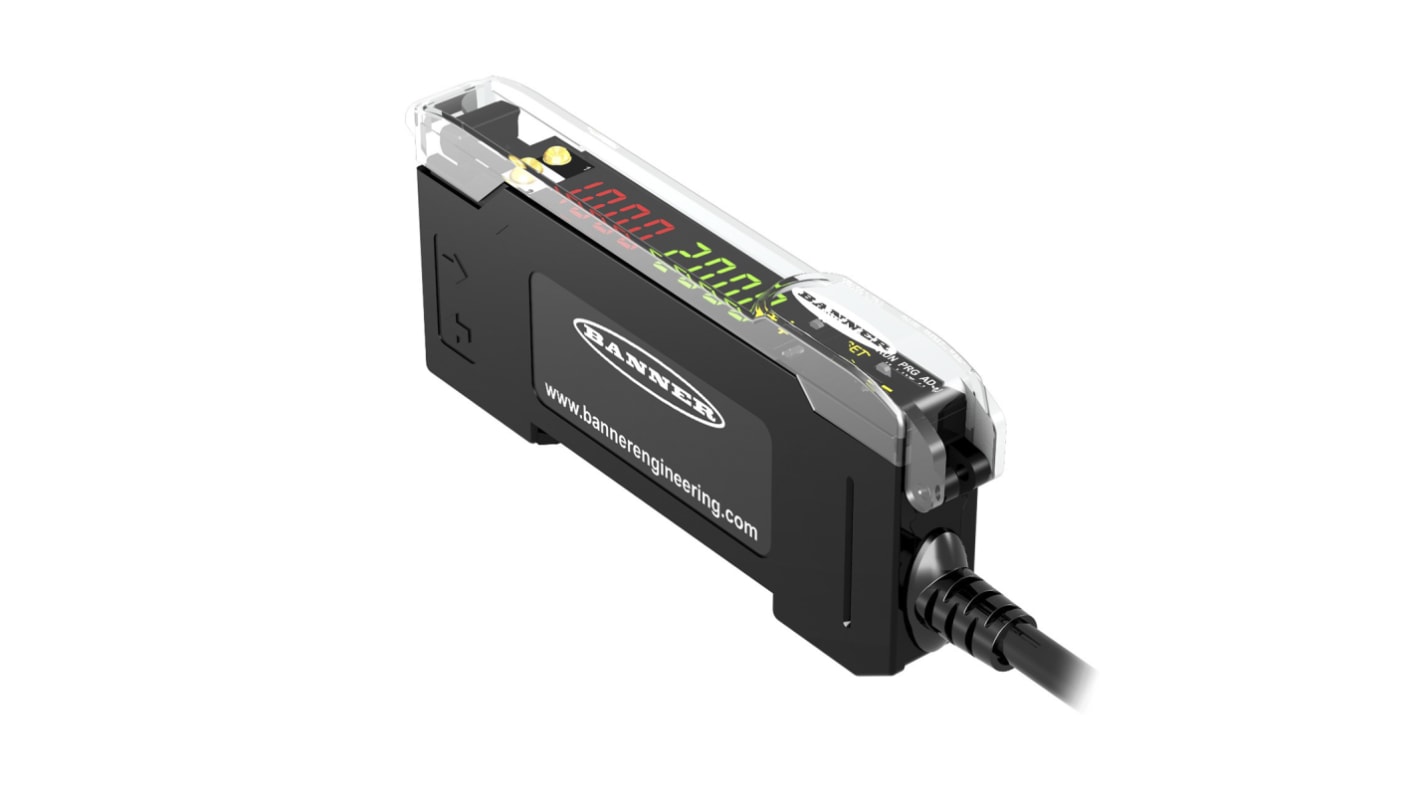

Banner Fibre Amplifier 3000 mm, PNP Output, 840 mW, IP50, 10 → 30 V dc

  • RS-artikelnummer 177-8713
  • Tillv. art.nr DF-G3-PD-2M
  • Tillverkare / varumärke Banner
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

DF-G3 Red Beam High Power Dual Display Fiber Amplifier
Range: Depends on fiber Input 10-30 V dc
Outputs: 2 PNP
Connection: 5-conductor 2 m PVC Cable

Specifikationer
Attribute Value
Detection Range 3000 mm
Output Type PNP
Terminal Type Cable
Response Time 2 (Standard) ms, 8 (Long Range) ms, 24 (Extra Long Range) ms, 500 (High Speed) μs, 1000 (Fast) μs
Light Source Red LED
Electrical Connection 4-Wire
Power Consumption 840 mW
IP Rating IP50
Housing Material Thermoplastic
Supply Voltage 10 → 30 V dc
Length 86.9mm
Width 10mm
Dimensions 86.9 x 10 x 31.5 mm
Maximum Operating Temperature +55°C
Standards Met CE Certified, CULus Listed
Minimum Operating Temperature -10°C
Mounting Type DIN Rail
Depth 31.5mm
Tillfälligt slut i lager – restorder för leverans 2020-12-30
Pris (ex. moms) Each
3 087,24 kr
(exkl. moms)
3 859,05 kr
(inkl. moms)
Enheter
Per unit
1 +
3 087,24 kr
