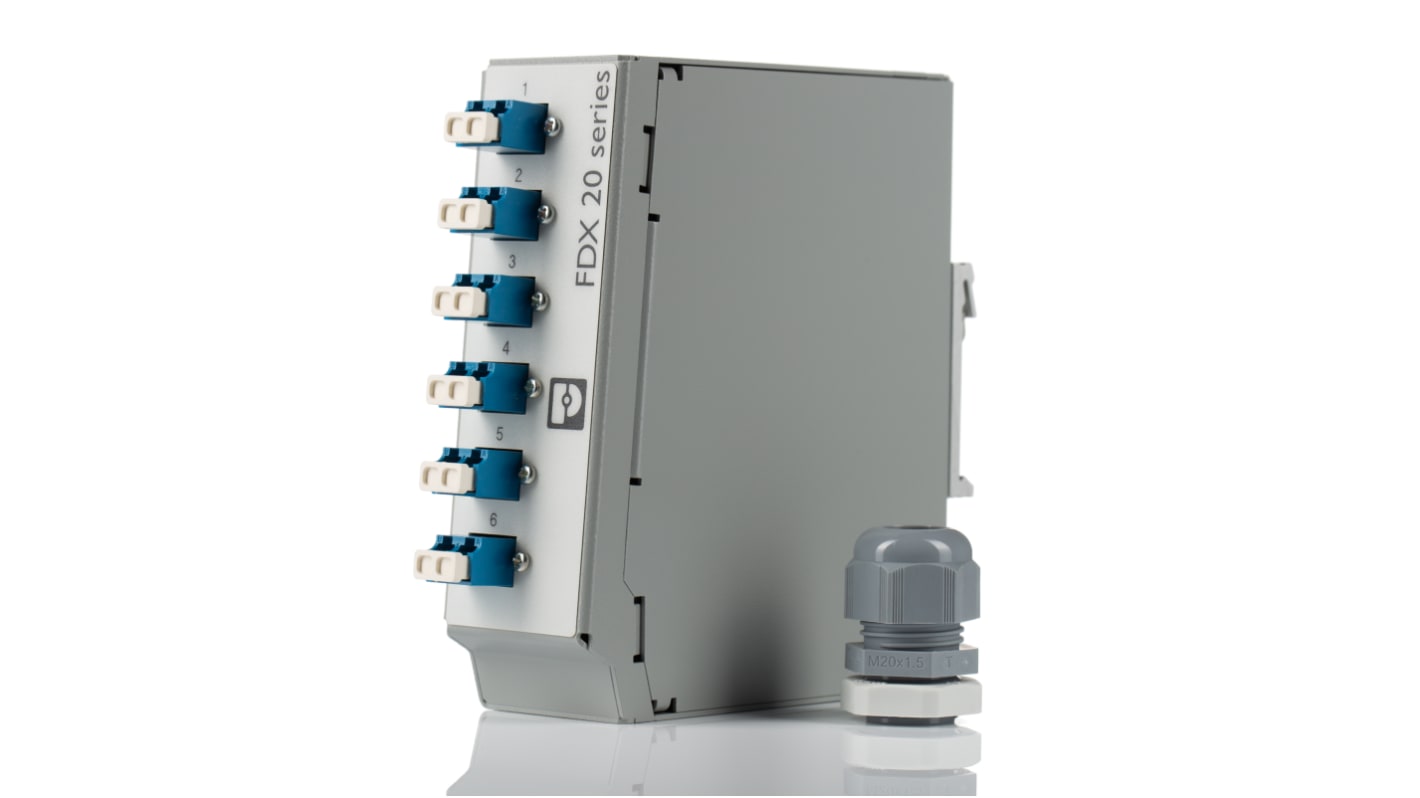

Phoenix Contact 6 Port LC Single Mode Duplex Fibre Optic Patch Panel With 2 Ports Populated

  • RS-artikelnummer 175-1798
  • Tillv. art.nr 1019711
  • Tillverkare / varumärke Phoenix Contact
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

DIN rail splice box of the FDX 20 series, equipped with 6x LC duplex couplings, fully assembled and ready for splicing, with pre-assembled 900 μm pigtails (OS2) and splice holder (for separately sold shrink und crimp splice protection) on a patented splice comb made from powder-coated sheet steel. Cable insertion via cable gland either at top or bottom. Housing (2-part) prepared for DIN rail mounting through rear-side adapter (this can also be mounted on the side).

Intuitive front panel operation and clear control cabinet layout thanks to uniform design
Flexible DIN rail mounting possible in three positioning directions
Perfectly sized and patented pigtail tray, for convenient splicing and compact bending radii.
Suitable for industrial applications
Continuously reliable data connection, thanks to extensively tested components
easy to install
including cable gland

Specifikationer
Attribute Value
Connector Type LC
Number of Ports 6
Number of Populated Ports 2
Panel Type Front
Single/Multimode Single Mode
Simplex/Duplex Duplex
Dimensions 130 x 40 x 135mm
Depth 135mm
Height 130mm
Width 40mm
4 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
3 564,30 kr
(exkl. moms)
4 455,38 kr
(inkl. moms)
Enheter
Per unit
1 - 4
3 564,30 kr
5 +
3 386,04 kr
