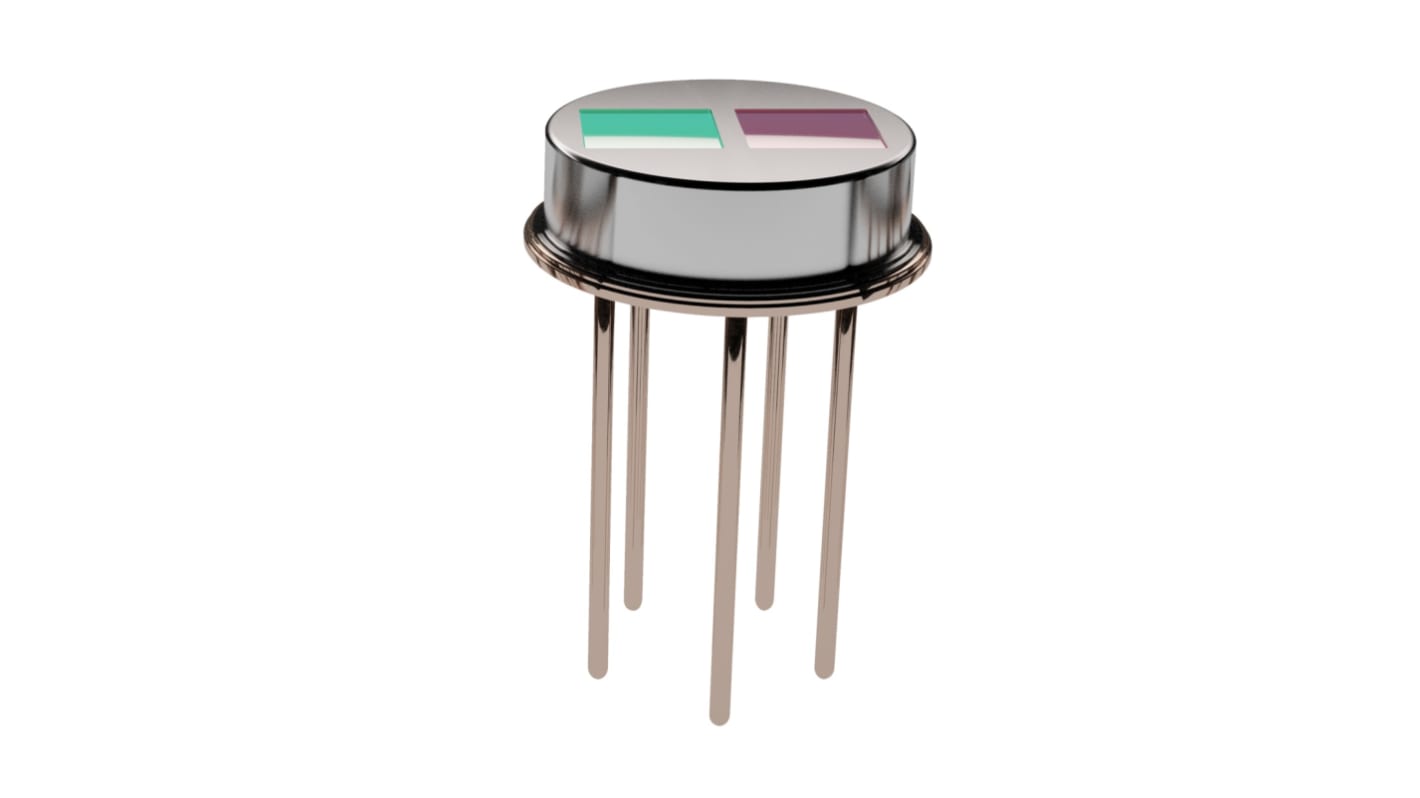

Broadcom AFBR-S6PY2626, Environment Sensor for Gas Leak Detectors & Alarms
- RS-artikelnummer:
- 281-3001
- Tillv. art.nr:
- AFBR-S6PY2626
- Tillverkare / varumärke:
- Broadcom
100 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 50)
561,793 kr
(exkl. moms)
702,241 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 50 - 50 | 561,793 kr | 28 089,65 kr |
| 100 + | 559,056 kr | 27 952,80 kr |
- RS-artikelnummer:
- 281-3001
- Tillv. art.nr:
- AFBR-S6PY2626
- Tillverkare / varumärke:
- Broadcom
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer
The Broadcom thin film pyroelectric infrared (IR) sensors for gas detection and other substance concentration measurements, The main use of this high sensitivity device is CO2 detection. It is High-performance current mode sensor that achieves a signal-to-noise of 10,000 and offers a fast, stable response over a wide operating frequency range. The sensor elements are built into a low noise circuit that has an internal CMOS op amp, with a 10 GΩ feedback resistor outputting a voltage signal centered on half the supply rail. This product is lead-free and compliant with RoHS.
High sensitivity
Thermally stable to slow drift and thermal shock
Extended temperature range
Less external gain required
Reliable and easy to use
Thermally stable to slow drift and thermal shock
Extended temperature range
Less external gain required
Reliable and easy to use
Specifikationer
Attribute | Value |
|---|---|
| Application | Gas Leak Detectors & Alarms |
| Sensor Type | Pyroelectric Infrared Sensor |
