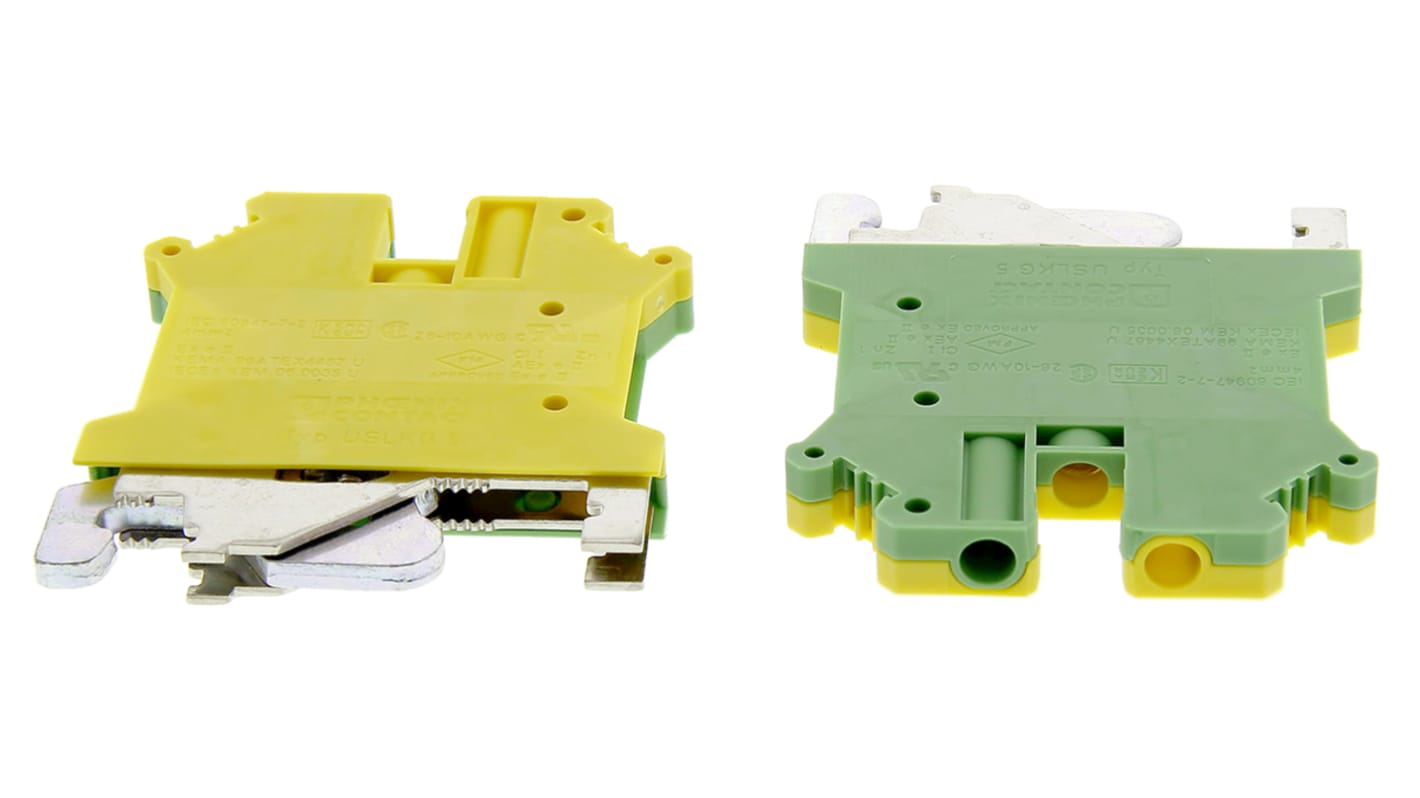

Phoenix Contact ATEX 2 Way Screw Down DIN Rail, 42.5mm Length 24 → 10 AWG

  • RS-artikelnummer 462-9188
  • Tillv. art.nr 0441504
  • Tillverkare / varumärke Phoenix Contact
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): DE
Produktdetaljer

Phoenix Contact, USLKG Series of Earth Block

The Phoenix Contact USLKG series of Earth block offers you reliable grounding for your earthing wires, increase protection for personnel and equipment from interference such as EMI. The USLKG series offers "Plug&Play" style DIN rail mounting, allowing you to easily interchange/modify the set up of your earth blocks. The USLKG series performs well in different environments and has a good operating temperature range.

Features and Benefits

• USLKG DIN Rail mountable

• Screw Connection, feature 2 connections

• Industry-wide green/yellow colouring for easy identification

• Available in various widths ranging from 5.2 - 12.2mm

• PA Insulating material

• Overvoltage category 3 protection

• ATEX Rated

Typical Applications

• Control centers

• Distribution boards

USLK Series

Specifikationer
Attribute Value
Earth Block Type DIN Rail
Wire Size 24 → 10 AWG
Colour Green/Yellow
Number of Ways 2
Termination Method Screw Down
Housing Material Polyamide
Current Rating 41A
Voltage Rating 750 V
Length 42.5mm
Width 6.2mm
Height 54.5mm
Maximum Operating Temperature +130°C
Hazardous Area Certification ATEX
Minimum Operating Temperature -60°C
450 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
39,267 kr
(exkl. moms)
49,084 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 190
39,267 kr
392,67 kr
200 - 490
37,304 kr
373,04 kr
500 +
35,34 kr
353,40 kr
