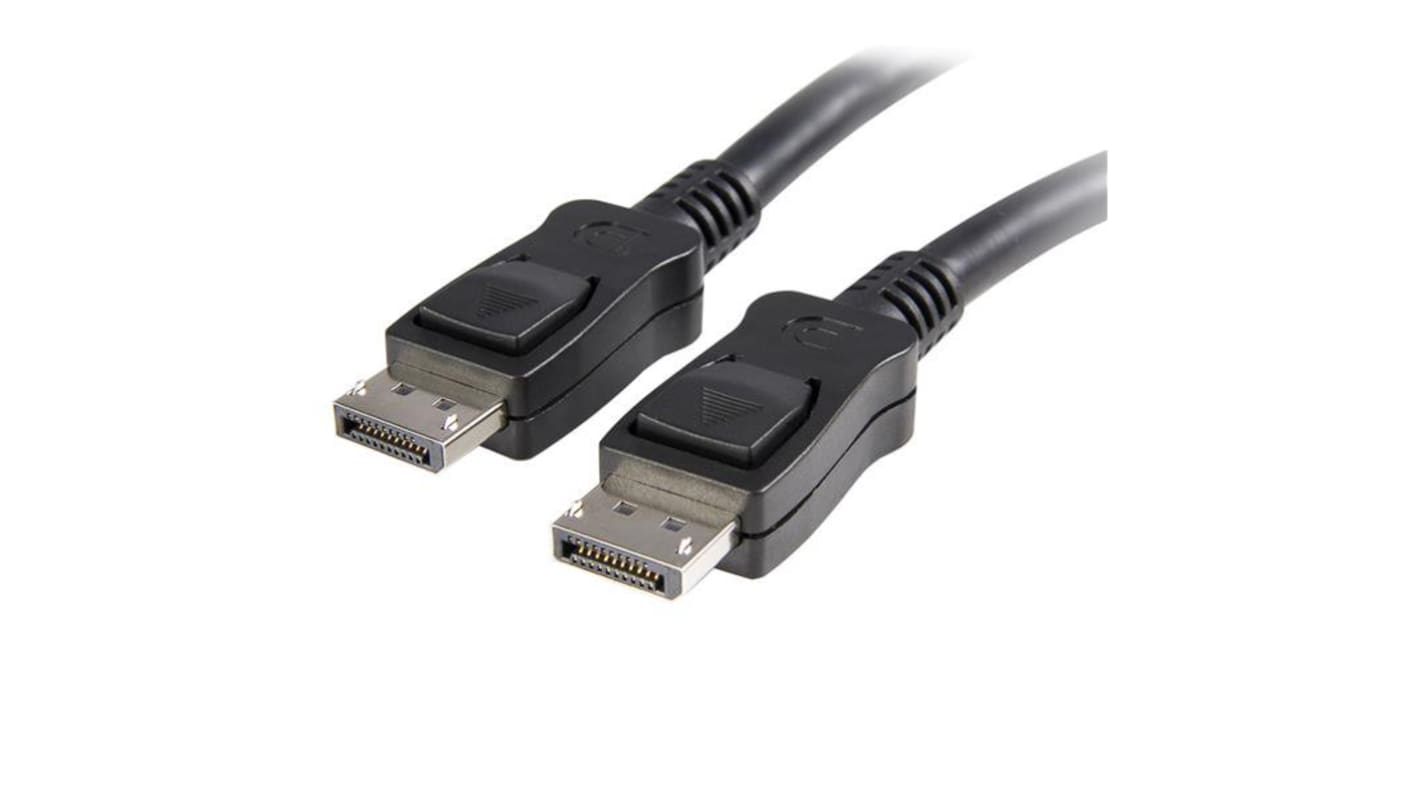

6 ft DisplayPort Cable with Latches

  • RS-artikelnummer 176-5652
  • Tillv. art.nr DISPLPORT6L
  • Tillverkare / varumärke Startech
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

DISPLPORT6L 6ft DisplayPort Cable

This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI.

The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.

The 6-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.

The DISPLPORT6L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Features & Benefits

• High-resolution support up to 4K x 2K
• Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6Gbps
• DisplayPort (VESA) certified
• Backward compatible with DisplayPort 1.1
• Designed and manufactured to DisplayPort 1.2 standards
• Supports the DPCP (DisplayPort Content Protection) standard in addition to HDCP
• moulded latching connectors with strain relief
• Prevent accidental disconnections with latched connectors
• Guaranteed reliability

Applications

• Connecting a DisplayPort Display to a PC or other DisplayPort Source

What’s in the package?

6 ft DisplayPort™ 1.2 Cable with Latches - M/M

FAQs

When should I use a longer video cable vs. a video extender?

You should only use video converters and extenders if it is absolutely necessary to do so. In many cases, most video converters and extenders are not necessary if you purchase the correct cable.

The following table lists the maximum length of cable for common video standards.
DisplayPort - 50 ft. (15.2m)
HDMI - 50 ft. (15.2m)
DVI - 50 ft. (15.2m)
VGA - 200 ft. (71m)

Specifikationer
Attribute Value
Cable Type DisplayPort to DisplayPort
Connector A Gender Male
Connector A Type DisplayPort
Connector B Gender Male
Connector B Type DisplayPort
Length 1.8m
Maximum Resolution 4K
Outer Sheath Material PVC
Sheath Colour Black
Shielding Aluminum-Mylar Foil with Braid
Size of Strands 28 AWG
45 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
178,91 kr
(exkl. moms)
223,64 kr
(inkl. moms)
Enheter
Per unit
1 - 9
178,91 kr
10 - 24
169,96 kr
25 +
161,02 kr
