- RS-artikelnummer:
- 686-6897
- Tillv. art.nr:
- A6H-8101
- Tillverkare / varumärke:
- Omron
251 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
41,00 kr
(exkl. moms)
51,25 kr
(inkl. moms)
Enheter | Per unit |
1 - 49 | 41,00 kr |
50 - 99 | 39,42 kr |
100 - 249 | 38,15 kr |
250 - 499 | 36,57 kr |
500 + | 35,52 kr |
- RS-artikelnummer:
- 686-6897
- Tillv. art.nr:
- A6H-8101
- Tillverkare / varumärke:
- Omron
Lagstiftning och ursprungsland
Produktdetaljer

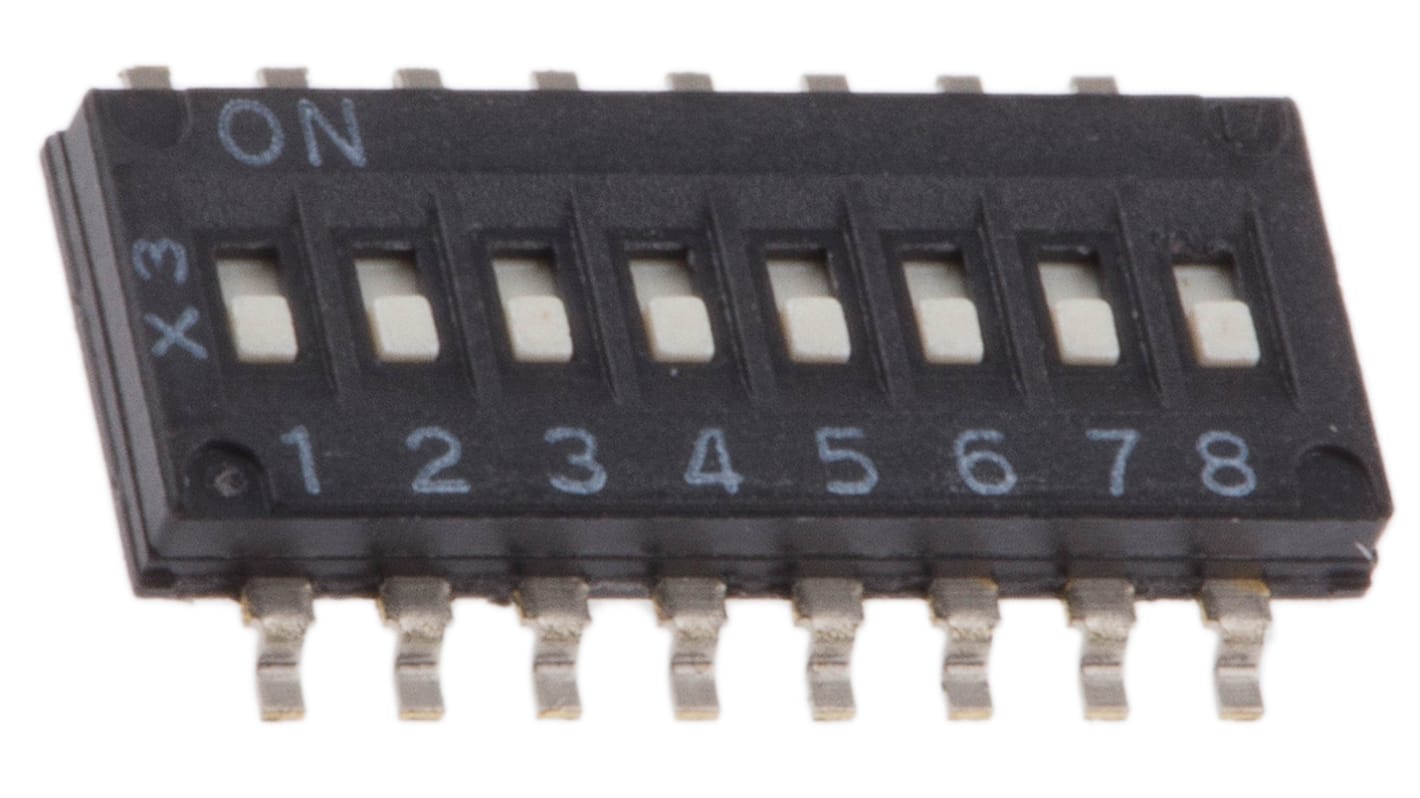

Ultra Low Profile Half Pitch Switches
A range of half pitch surface mount DIL switches. Being half pitch this reduces the mounting space by 63%.
Half pitch with ultra Low profile of 1.55mm
Available with or without tape seal
Surface mount
Contact resistance: 200mΩ
Insulation resistance: 100MΩ min @ 250Vdc
Mechanical life: 1000 operations
RoHS compliant
Available with or without tape seal
Surface mount
Contact resistance: 200mΩ
Insulation resistance: 100MΩ min @ 250Vdc
Mechanical life: 1000 operations
RoHS compliant
Dual-In-Line Switches
Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.
Specifikationer
Attribute | Value |
---|---|
Number of Positions | 8 |
Mounting Type | Surface Mount |
Contact Configuration | 8P |
Package Style | DIP |
Actuator Type | Slide |
Contact Current Rating | 25 mA@ 24 V dc |
Mechanical Life | 1000Operations |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +70°C |
Dielectric Strength | 300V ac |
