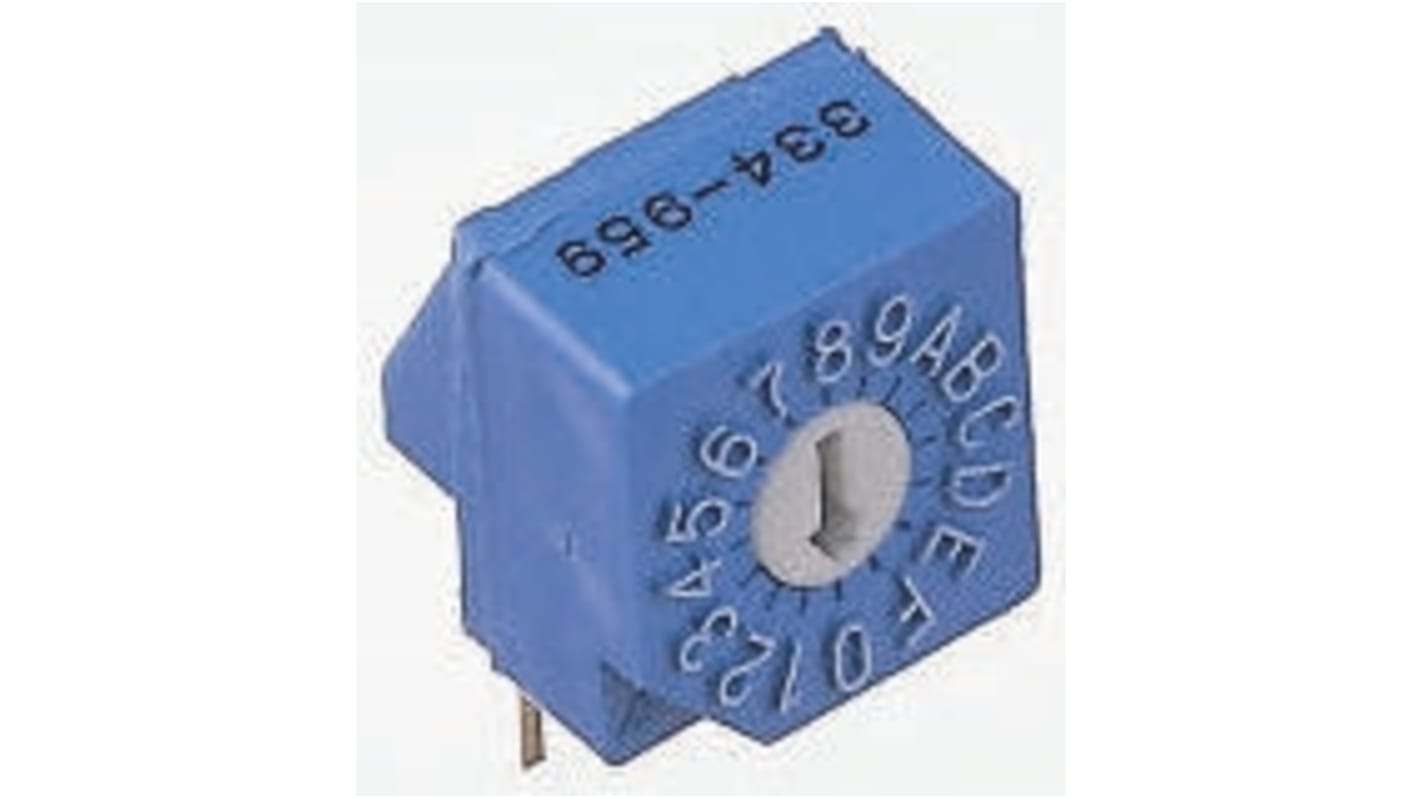

Hartmann 16 Way Through Hole DIP Switch, Cross Shaped Slot Actuator
- RS-artikelnummer:
- 334-959A
- Tillv. art.nr:
- P60A703L508
- Tillverkare / varumärke:
- Hartmann
Tillfälligt slut i lager – restorder för leverans 2024-11-19
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 25)
30,82 kr
(exkl. moms)
38,52 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 25 - 100 | 30,82 kr | 770,50 kr |
| 125 - 350 | 22,282 kr | 557,05 kr |
| 375 - 600 | 20,834 kr | 520,85 kr |
| 625 - 1225 | 20,278 kr | 506,95 kr |
| 1250 + | 19,758 kr | 493,95 kr |
- RS-artikelnummer:
- 334-959A
- Tillv. art.nr:
- P60A703L508
- Tillverkare / varumärke:
- Hartmann
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Cross-head Rotary Encoder
Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent action
Gold plated contacts
Through hole and Surface mount versions
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent action
Gold plated contacts
Through hole and Surface mount versions
Note
Soldering temperature: 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max.
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifikationer
Attribute | Value |
|---|---|
| Number of Positions | 16 |
| Mounting Type | Through Hole |
| Contact Material | Gold over Nickel Plated Stainless Steel |
| Package Style | DIP |
| Actuator Type | Cross Shaped Slot |
| Contact Current Rating | 150 mA@ 24 V dc |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 24V dc |
