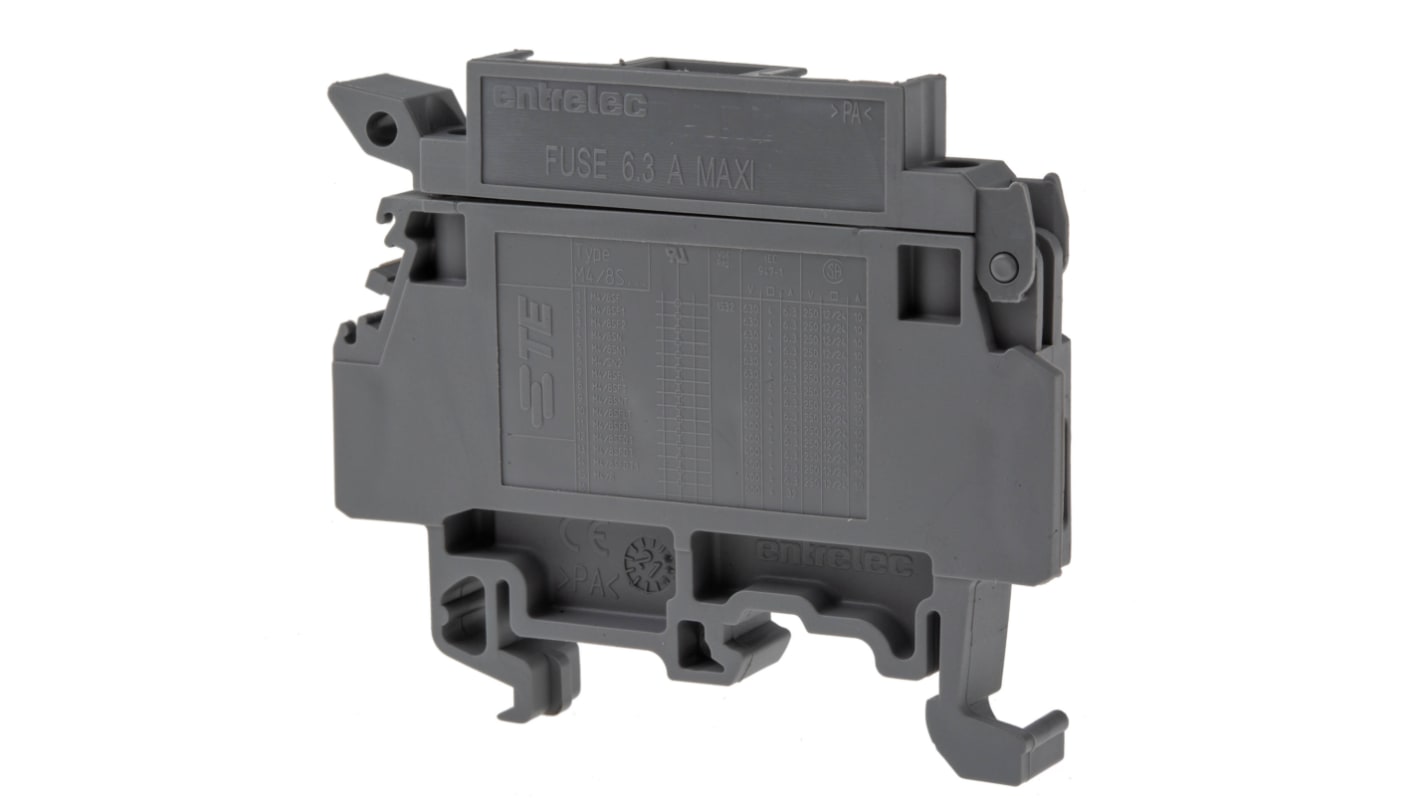

Entrelec Fused DIN Rail Terminal, MA Series, 4 (stranded) mm², 6 (solid) mm², 630 V, 6.3A, 5 x 20 mm, 5 x 25 mm Fuse

  • RS-artikelnummer 210-4570
  • Tillv. art.nr 1SNA115657R2500
  • Tillverkare / varumärke Entrelec
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FR
Produktdetaljer

Fused Lever Action

ABB series of Fused terminals with a lever action fuse carrier, the standard product accepts both 20´5mm and 25´5mm fuses whilst terminals with ’fuse failed’ indication are suited to 20´5mm fuse links only.
Fuse failed indication terminals are available either a LED suited to 24V dc, or with a neon suited to 110-220V usage.

Approvals

UL listed, CSA certified.

Approvals

1, 2

5000 Universal Series

This universal range of terminals mounts on both asymmetric rail 'G' profile and Top hat profile. Moulded in tough flame-resistant polyamide 6.6, with a working temperature of -55°C to +130°C. The captive terminal screws have hardened heads to prevent burring. Cable entry and clamp design allows easy installation, higher voltage and cable carrying capacity. Cable markers are available RS 460-569

Note

Stock numbers 472-9569 and 472-9575 are compatible with deep top hat rails only

Specifikationer
Attribute Value
Series MA
Wire Size 12 AWG, 14 (with ferrule) AWG
Fused Yes
Cable CSA 4 (stranded) mm², 6 (solid) mm²
Colour Grey
Current Rating 6.3A
Termination Method Screw
Voltage Rating 630 V
Pitch 8mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +110°C
4395 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
23,968 kr
(exkl. moms)
29,96 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 +
23,968 kr
119,84 kr
