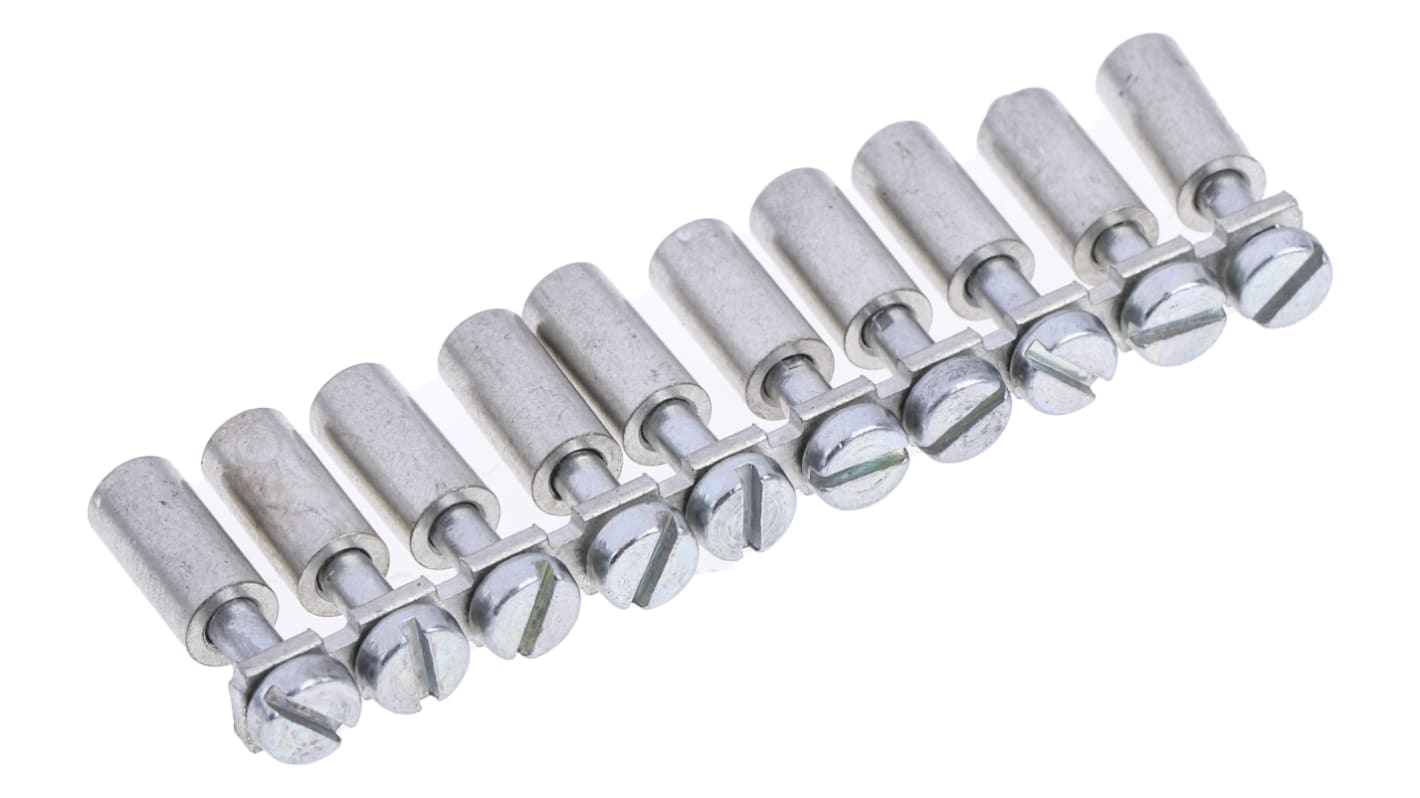

RS PRO Jumper Bar for Use with DIN Rail Terminal Blocks
- RS-artikelnummer:
- 399-105
- Tillverkare / varumärke:
- RS PRO
795 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
42,228 kr
(exkl. moms)
52,785 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 + | 42,228 kr | 211,14 kr |
- RS-artikelnummer:
- 399-105
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
RS PRO Jumper Bars
RS PRO range of jumper bars which is a type of DIN rail terminal accessory for use with terminal blocks. These cross connectors have 10 poles and feature a screw mounting type.
Options include:
815-789 - 10 way jumper bar for terminal, length 4 mm, width 59.3 mm, pitch size 6 mm, cross-section 4 mm², screw threading M2.5
815-795 - 10 way jumper bar for terminal, length 6 mm, width 59.7 mm, pitch size 6 mm, cross-section 4 mm², screw threading M3
815-802 - 10 way jumper bar for terminal, length 6 mm, width 78.9 mm, pitch size 8 mm, cross-section 10 mm², screw threading M 3
399-105 - 10 way jumper bar for terminal, length 4 mm, width 49.9 mm, pitch size 5 mm, cross-section 2.5 mm², screw threading M 2.5
501-792 - Cross connector for 3 tier terminals, length 4 mm, width 49.9 mm, pitch size 5 mm, cross-section 2.5 mm², screw threading M 2.5
RS PRO have a great range of DIN Rail Terminal Accessories and each product has its own unique function when used with DIN rail terminals.
Options include:
815-789 - 10 way jumper bar for terminal, length 4 mm, width 59.3 mm, pitch size 6 mm, cross-section 4 mm², screw threading M2.5
815-795 - 10 way jumper bar for terminal, length 6 mm, width 59.7 mm, pitch size 6 mm, cross-section 4 mm², screw threading M3
815-802 - 10 way jumper bar for terminal, length 6 mm, width 78.9 mm, pitch size 8 mm, cross-section 10 mm², screw threading M 3
399-105 - 10 way jumper bar for terminal, length 4 mm, width 49.9 mm, pitch size 5 mm, cross-section 2.5 mm², screw threading M 2.5
501-792 - Cross connector for 3 tier terminals, length 4 mm, width 49.9 mm, pitch size 5 mm, cross-section 2.5 mm², screw threading M 2.5
RS PRO have a great range of DIN Rail Terminal Accessories and each product has its own unique function when used with DIN rail terminals.
Typical Applications:
Cross connectors are supplied preassembled into a 10 pole part
They can be cut down from 10 poles to the required length
Screws and collars can be removed to skip over terminals
They can be cut down from 10 poles to the required length
Screws and collars can be removed to skip over terminals
Typical Applications:
Jumper bars are used to connect consecutive and non-consecutive terminal blocks that are within the same spacing. They consist of metal tubes which make contact with the internal connector bar in the terminal block.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Features:
Width: 49.9 mm
Length: 4 mm
Hole height 2.5 mm
Hole diameter 2.8 mm
Pitch size 5 mm
Voltage with partition, max. 800 V
Voltage without partition, max. 400 V
Rated current 20 A
Rated cross section 2.5 mm²
Contamination degree 3
Slotted screw head
Screw threading M2.5
Tightening torque, min. 0.4 Nm, max. 0.8 Nm
Copper material
Tin plated surface
Screw mounting type
Length: 4 mm
Hole height 2.5 mm
Hole diameter 2.8 mm
Pitch size 5 mm
Voltage with partition, max. 800 V
Voltage without partition, max. 400 V
Rated current 20 A
Rated cross section 2.5 mm²
Contamination degree 3
Slotted screw head
Screw threading M2.5
Tightening torque, min. 0.4 Nm, max. 0.8 Nm
Copper material
Tin plated surface
Screw mounting type
Specifikationer
Attribute | Value |
|---|---|
| Accessory Type | Jumper Bar |
| Series | Q |
| For Use With | DIN Rail Terminal Blocks |
