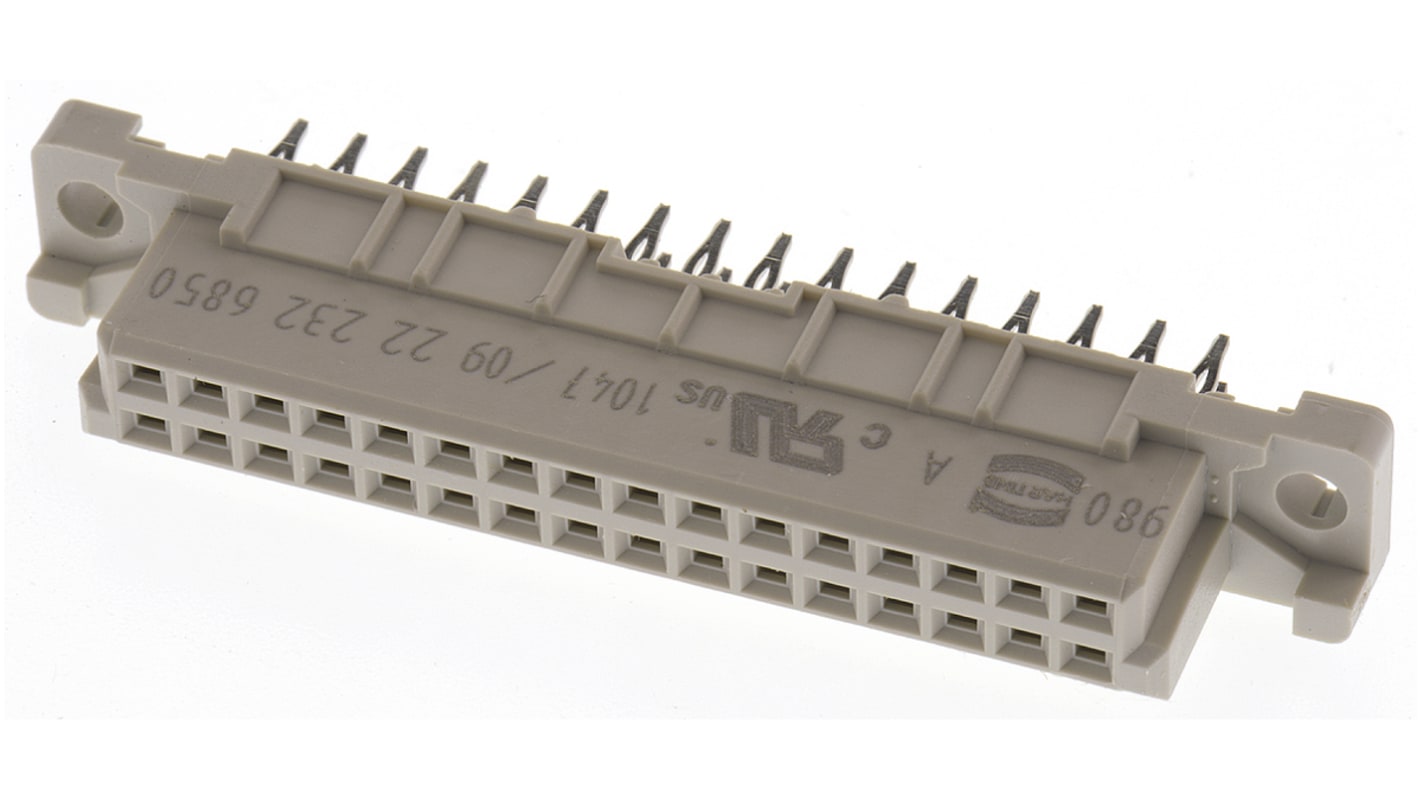

Harting 32 Way 2.54mm Pitch, Type 2B Class C2, 2 Row, Straight DIN 41612 Connector, Socket

RS-artikelnummer:: 923-4716
Tillv. art.nr:: 09222326850
Tillverkare / varumärke:: HARTING

Harting 32 Way 2.54mm Pitch, Type 2B Class C2, 2 Row, Straight DIN 41612 Connector, Socket

20 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i en låda med 20)

64,229 kr

(exkl. moms)

80,286 kr

(inkl. moms)

Enheter	Per unit	Per Box*
20 - 80	64,229 kr	1 284,58 kr
100 - 180	53,508 kr	1 070,16 kr
200 - 480	50,866 kr	1 017,32 kr
500 - 980	45,412 kr	908,24 kr
1000 +	40,462 kr	809,24 kr

RS-artikelnummer:: 923-4716
Tillv. art.nr:: 09222326850
Tillverkare / varumärke:: HARTING

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: DE

Produktdetaljer

Harting DIN 41612 Complementary Type 2B Backplane Signal Connectors

Harting DIN 41612 complementary type 2B backplane signal connectors are designed for PCB applications with a maximum of 2A per contact. Hard wearing and durable with a good mating cycle, these DIN 41612 complementary type 2B PCB backplane signal connectors offer an economical solution to many electronic signal connector design applications.

Operating temp -55 to +125 °C
2A max per contact
Test voltage 1kV
Contact resistance up to 20mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
Termination Method - Solder

DIN41612 - Harting Range

DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.

Specifikationer

Attribute	Value
Number of Contacts	32
Gender	Female
Number of Rows	2
Body Orientation	Straight
Termination Method	Press-In
Row Loading	a/b
Type	2B
Pitch	2.54mm
Mounting Type	Through Hole
Contact Plating	Gold over Nickel
Class Rating	C2
Current Rating	2A
Contact Material	Copper Alloy
Maximum Contact Resistance	15mΩ
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+105°C
Housing Material	Thermoplastic
