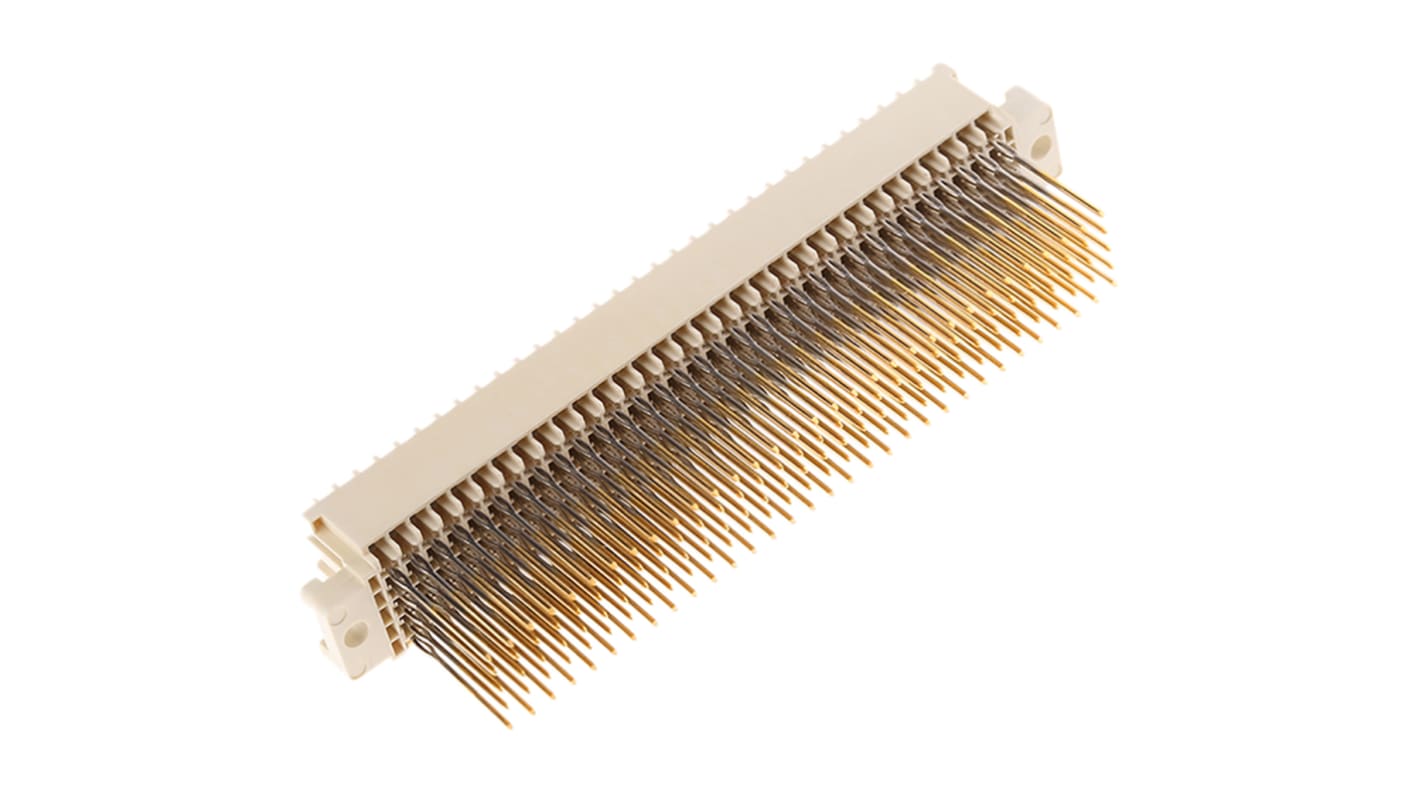

HARTING, Har-Bus 64 160 Way 2.54mm Pitch, Type harbus 64 Class C2, 5 Row, Straight DIN 41612 Connector, Socket

  • RS-artikelnummer 253-9594
  • Tillv. art.nr 02021602301
  • Tillverkare / varumärke HARTING
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

Harting har-bus® 64 IEC 61076-4-113 DIN 41612 Connectors

har-bus® 64 IEC 61076-4-113 DIN 41612 backplane signal connectors. Originally designed for VME64 applications, this range allows full backward compatibility with existing DIN41612 Type C versions.
Stock numbers 235-6406 and 406-394 are SMC compatible male har-bus® 64 DIN 41612 backplane signal connectors
Stock numbers 235-6412, 253-9594, 406-398 and 406-405 are female har-bus® 64 DIN 41612 backplane signal connectors with press in terminations and mounting flanges
Stock number 843-6000 is a female har-bus® 64 DIN 41612 backplane signal connector with switches, press in terminations and mounting flanges.
Stock number 865-8051 is a female crimp terminal housing for use with har-bus64 shroud
Stock number 843-6220 is a female crimp terminal housing for use with a row type R male connector
For crimp contacts see 843-6224 typically.

160MB to 220MB data transfer rates
Retrofits existing systems, increasing pin count
Pressfit sockets aid assembly and production
High performance with guaranteed backwards and forwards compatibility

Standards

Class 1 and Class 2 performance level as per IEC 61 076-4-113

DIN41612 - Harting Range

DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.

Specifikationer
Attribute Value
Number of Contacts 160
Gender Female
Number of Rows 5
Body Orientation Straight
Termination Method Press-In
Row Loading Z/a/b/c/d
Type Harbus 64
Pitch 2.54mm
Mounting Type Through Hole
Contact Plating Gold over Nickel
Class Rating C2
Current Rating 1A
Contact Material Copper Alloy
Maximum Contact Resistance 30mΩ
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Series Har-Bus 64
34 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
159,65 kr
(exkl. moms)
199,56 kr
(inkl. moms)
Enheter
Per unit
1 +
159,65 kr
Förpackningsalternativ:
