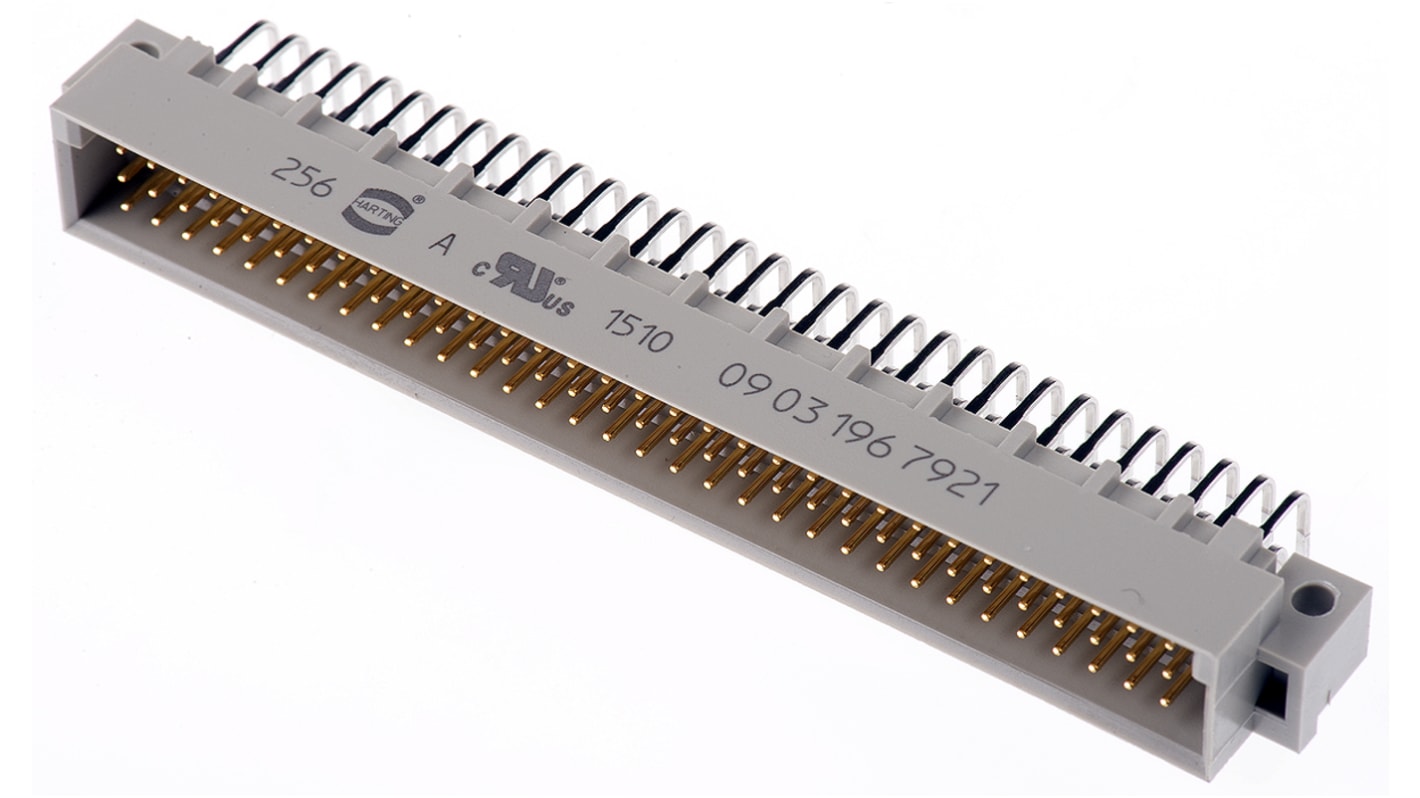

HARTING 96 Way 2.54mm Pitch, Type C Class C3, 3 Row, Right Angle DIN 41612 Connector, Plug

RS-artikelnummer:: 406-385
Tillv. art.nr:: 09031967921
Tillverkare / varumärke:: HARTING

HARTING 96 Way 2.54mm Pitch, Type C Class C3, 3 Row, Right Angle DIN 41612 Connector, Plug

30 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

45,29 kr

(exkl. moms)

56,61 kr

(inkl. moms)

Enheter	Per unit
1 - 19	45,29 kr
20 - 74	37,74 kr
75 - 299	33,37 kr
300 - 599	31,94 kr
600 +	30,63 kr

RS-artikelnummer:: 406-385
Tillv. art.nr:: 09031967921
Tillverkare / varumärke:: HARTING

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: DE

Produktdetaljer

Harting DIN 41612 Type C Backplane Signal Connectors

Harting DIN 41612 Type C backplane signal connectors are designed for PCB connection. Hard wearing and durable with a good mating cycle life these DIN 41612 type C PCB backplane signal connectors offer a economical solution to many electronic signal connector design applications. Mating first at positions a1 and a31.
Stock numbers 757-7951, 757-7945, 757-7970, 757-7936, 757-7954, 757-7926, 757-7998, 757-7967 and 757-7958 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2

• Operating temp -55 to +125 °C
• Test voltage 1kV
• Contact resistance up to 20mΩ
• Thermoplastic resin - glass fibre filled
• Copper alloy contacts
• Mating first at positions a1 and a31

Available with 4.5mm connectors (RS 406-284) and 13mm connectors (RS 740-6723)

DIN41612 - Harting Range

DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.

Specifikationer

Attribute	Value
Number of Contacts	96
Gender	Male
Number of Rows	3
Body Orientation	Right Angle
Termination Method	Solder
Row Loading	a/b/c
Type	C
Pitch	2.54mm
Contact Plating	Gold over Nickel
Mounting Type	Through Hole
Class Rating	C3
Current Rating	2A
