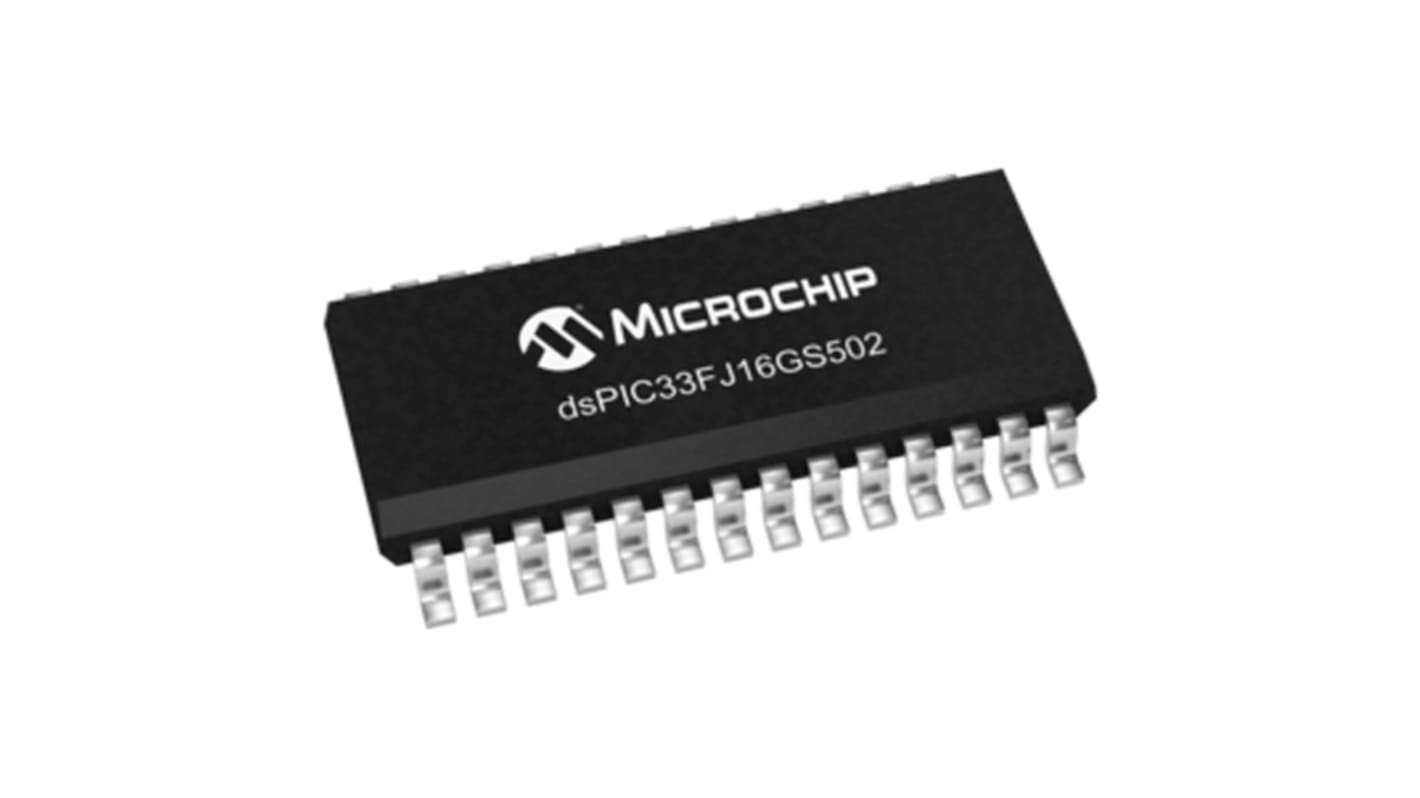

DSPIC33FJ16GS502-I/SO Microchip, 16bit Digital Signal Processor 50MIPS 16 kB Flash 28-Pin SOIC
- RS-artikelnummer:
- 178-4862
- Tillv. art.nr:
- DSPIC33FJ16GS502-I/SO
- Tillverkare / varumärke:
- Microchip
Tillfälligt slut i lager – restorder för leverans 2024-06-03
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 27)
53,388 kr
(exkl. moms)
66,735 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 27 - 81 | 53,388 kr | 1 441,476 kr |
| 108 + | 50,718 kr | 1 369,386 kr |
- RS-artikelnummer:
- 178-4862
- Tillv. art.nr:
- DSPIC33FJ16GS502-I/SO
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
dsPIC33F Digital Signal Controllers
The dsPIC33F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The 40MIPS dsPIC33F core is designed to execute digital filter algorithms, high-speed precision digital control loops and digital audio and speech processing.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
Specifikationer
Attribute | Value |
|---|---|
| Maximum Frequency | 50MIPS |
| Data Bus Width | 16bit |
| RAM Size | 2 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 16 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 3 to 3.6 V |
| Number of UART Channels | 1 |
| USB Channels | 0 |
| Timer Resolution | 16bit |
| Height | 2.35mm |
| Number of LIN Channels | 0 |
| PWM Channels | 8 |
| Width | 7.5mm |
| Number of USART Channels | 0 |
| Timers | 3 x 16 bit |
| Dimensions | 17.9 x 7.5 x 2.35mm |
| Number of SPI Channels | 1 |
| Pulse Width Modulation | 8 x16 bit |
| ADC Channels | 8 |
| Number of ADC Units | 1 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Number of CAN Channels | 0 |
| ADCs | 8 x 10 bit |
| Length | 17.9mm |
| Number of PWM Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Number of PCI Channels | 0 |
| Number of I2C Channels | 1 |
| Number of Ethernet Channels | 0 |
| Number of Timers | 3 |
