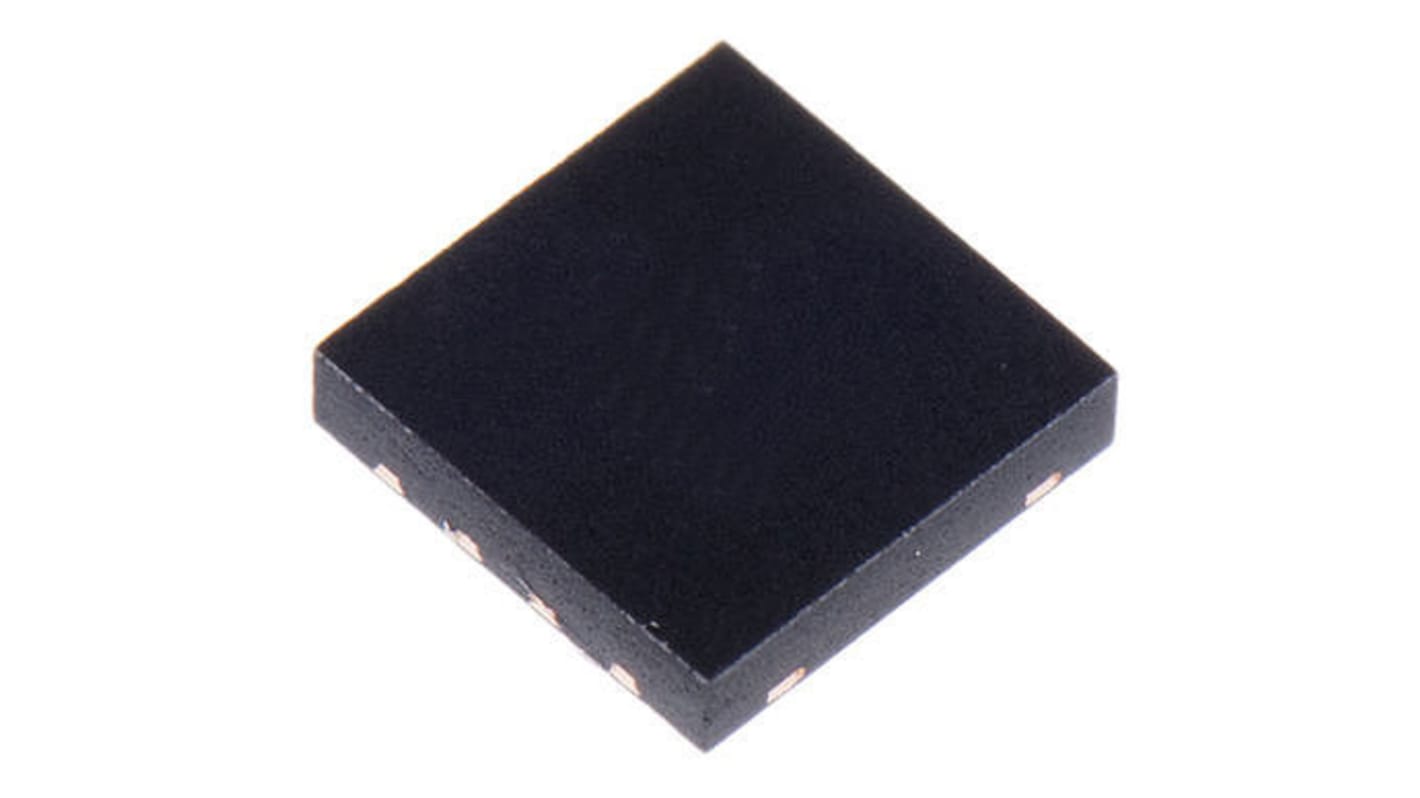

MAX5422ETA+T, Digital Potentiometer 50kΩ 256-Position Linear Serial-SPI 8 Pin, TDFN

RS-artikelnummer:: 189-8425
Tillv. art.nr:: MAX5422ETA+T
Tillverkare / varumärke:: Maxim Integrated

MAX5422ETA+T, Digital Potentiometer 50kΩ 256-Position Linear Serial-SPI 8 Pin, TDFN

2380 I lager för avsändande samma dag

Beräknat totalt pris (5 Enheter)

119,65 kr

(exkl. moms)

149,55 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
5 +	23,93 kr	119,65 kr

RS-artikelnummer:: 189-8425
Tillv. art.nr:: MAX5422ETA+T
Tillverkare / varumärke:: Maxim Integrated

Datasheet
256-Tap, Nonvolatile, SPI-Interface, Digital Potentiometers

RS-artikelnummer:: 189-8425
Tillv. art.nr:: MAX5422ETA+T
Tillverkare / varumärke:: Maxim Integrated

Datasheet
256-Tap, Nonvolatile, SPI-Interface, Digital Potentiometers

Attribute	Value
Control Interface	Serial-SPI
Resistance Value	50kΩ
Number of Positions	256
Taper Type	Linear
Memory Type	Non-Volatile
Number of Pots per Package	1
Mounting Type	Surface Mount
Package Type	TDFN
Pin Count	8
Power Supply Type	Single
Typical Single Supply Voltage	5 V
Dimensions	3.1 x 3.1 x 0.8mm
Height	0.8mm
Minimum Operating Temperature	-40 °C
Width	3.1mm
Length	3.1mm
Maximum Operating Temperature	+85 °C

Attribute	Value
Control Interface	Serial-SPI
Resistance Value	50kΩ
Number of Positions	256
Taper Type	Linear
Memory Type	Non-Volatile
Number of Pots per Package	1
Mounting Type	Surface Mount
Package Type	TDFN
Pin Count	8
Power Supply Type	Single
Typical Single Supply Voltage	5 V
Dimensions	3.1 x 3.1 x 0.8mm
Height	0.8mm
Minimum Operating Temperature	-40 °C
Width	3.1mm
Length	3.1mm
Maximum Operating Temperature	+85 °C

MAX5422ETA+T, Digital Potentiometer 50kΩ 256-Position Linear Serial-SPI 8 Pin, TDFN

Digital Potentiometer, Maxim Integrated Products

Note

Digital Potentiometer, Maxim Integrated Products

Note
