Wurth Elektronik, WR-DC Right Angle DC Socket Rated At 5.0A, 24.0 V, PCB Mount, length 9.0mm, Gold, Tin

  • RS-artikelnummer 122-4877
  • Tillv. art.nr 694106105102
  • Tillverkare / varumärke Wurth Elektronik
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

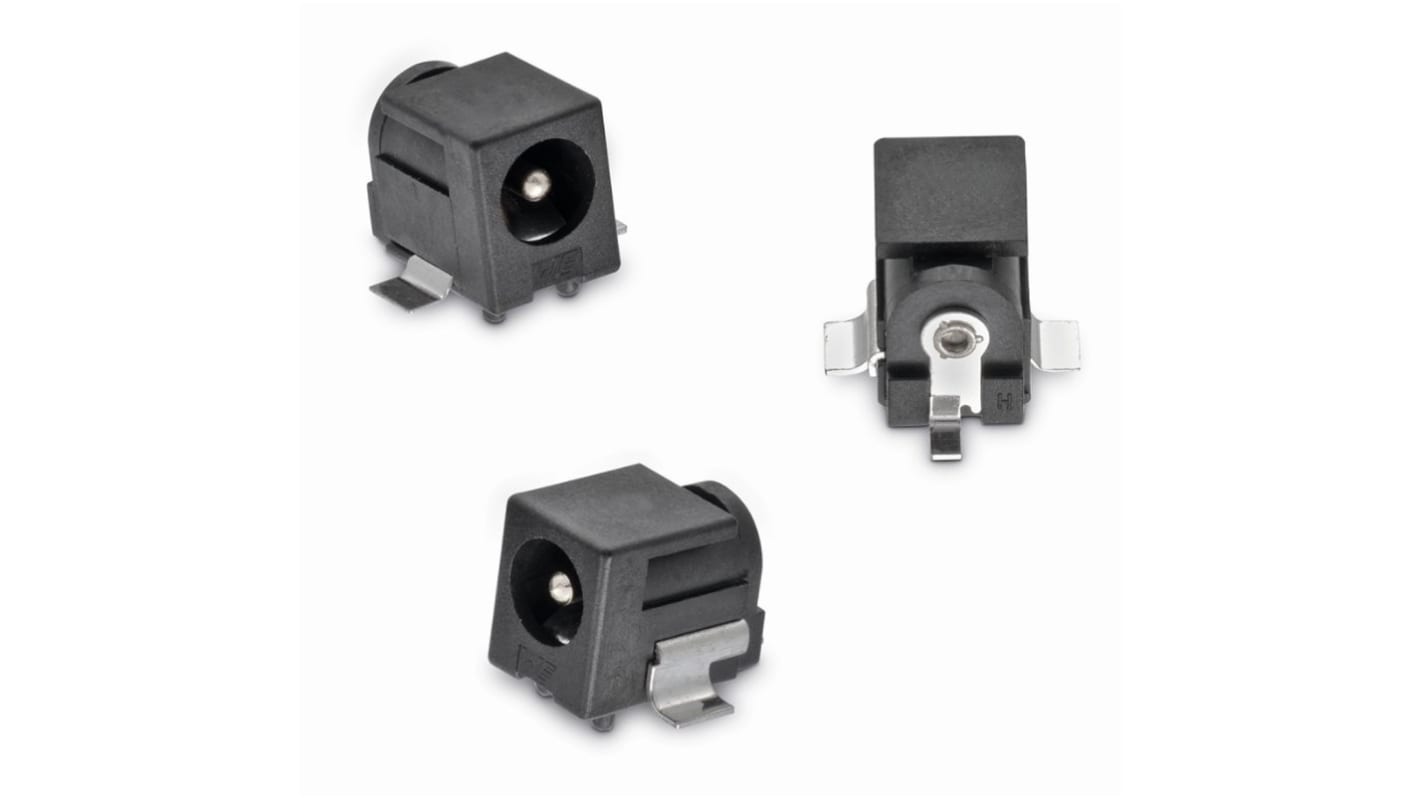

Wurth WR-DC SMT Mount DC Power Jacks - 6.4 mm Barrel Diameter

PCB SMT mount DC power jacks or barrel connectors with a 6.4mm barrel diameter. These SMT mount right angle DC power jacks have an internal normally closed single switch and internal pin diameters of 2.05 mm and 2.55 mm. The stamped contacts of these DC power jacks are gold plated and the housings are made from black UL94-V0 PA9T. Board guides are incorporated into the bottom of the housing to aid positioning on the PCB. Stock numbers 122-4878 and 122-4882 also have four soldering pads.

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

Specifikationer
Attribute Value
DC Power Connector Type DC Socket
Current Rating 5.0A
Body Orientation Right Angle
Voltage Rating 24.0 V
Width 9.0mm
Length 9.0mm
Mounting Type PCB Mount
Pin Diameter 2.5mm
Contact Plating Gold, Tin
Contact Material Copper Alloy
Series WR-DC
155 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
16,812 kr
(exkl. moms)
21,015 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 5
16,812 kr
84,06 kr
10 - 45
16,436 kr
82,18 kr
50 - 95
15,568 kr
77,84 kr
100 +
14,698 kr
73,49 kr
