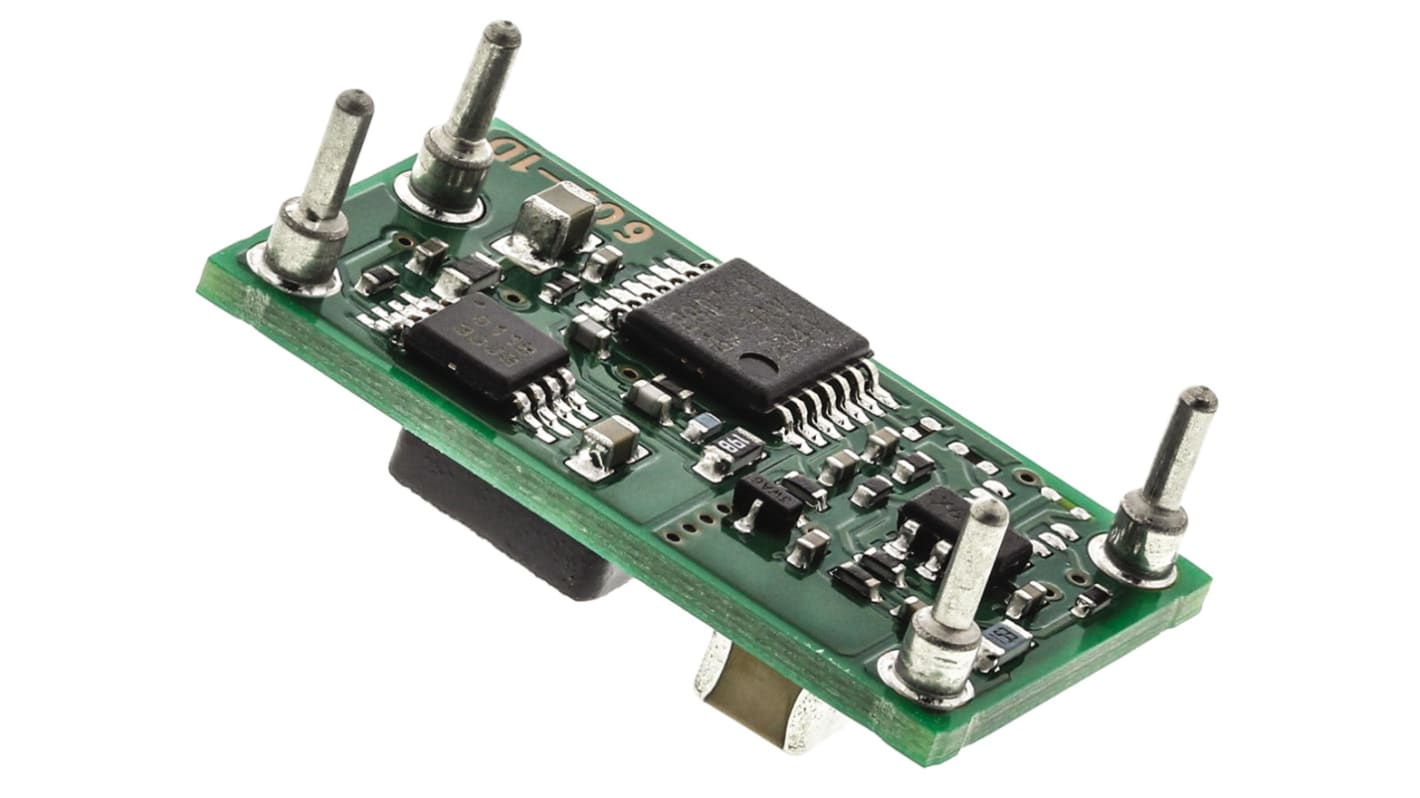

Texas Instruments PTN04050CAD, DC-DC Power Supply Module 2.4A 5.5 V Input, 600 Khz 4-Pin, DIP Module
- RS-artikelnummer:
- 145-6559
- Tillv. art.nr:
- PTN04050CAD
- Tillverkare / varumärke:
- Texas Instruments
56 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 56)
216,32 kr
(exkl. moms)
270,40 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 56 + | 216,32 kr | 12 113,92 kr |
- RS-artikelnummer:
- 145-6559
- Tillv. art.nr:
- PTN04050CAD
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Non-Isolated Step-Up (Boost) Power Modules, Texas Instruments
High-efficiency, Step-Up (Boost) DC/DC Voltage Conversion Non-Isolated Modules.
Non-Isolated Power Modules, Texas Instruments
Non-Isolated Power Modules are supporting designs which require superior EMI protection and thermal performance, high output current, high output voltage and more. The family of SIMPLE SWITCHER® power modules provides an all-in-one power solution to meet extreme operating conditions or simply a standard feature set, in a small, easy-to-use package.
Integrated shielded inductor
Precision enable, soft-start, and tracking for sequencing
Best-in-class thermal performance
Pin-to-pin compatible modules for different load currents
Easy-to-use packaging
Passes EN55022 (CISPR22) Class B Radiated and Conducted EMI Standard
Precision enable, soft-start, and tracking for sequencing
Best-in-class thermal performance
Pin-to-pin compatible modules for different load currents
Easy-to-use packaging
Passes EN55022 (CISPR22) Class B Radiated and Conducted EMI Standard
Specifikationer
Attribute | Value |
|---|---|
| Maximum Output Current | 2.4A |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 600 Khz |
| Line Regulation | ±10 mV |
| Load Regulation | ±10 mV |
| Mounting Type | Through Hole |
| Package Type | DIP Module |
| Pin Count | 4 |
| Dimensions | 18.92 x 12.57 x 8.25mm |
| Height | 8.25mm |
| Length | 18.92mm |
| Maximum Input Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Input Voltage | 2.95 V |
| Width | 12.57mm |
| Minimum Operating Temperature | -40 °C |
