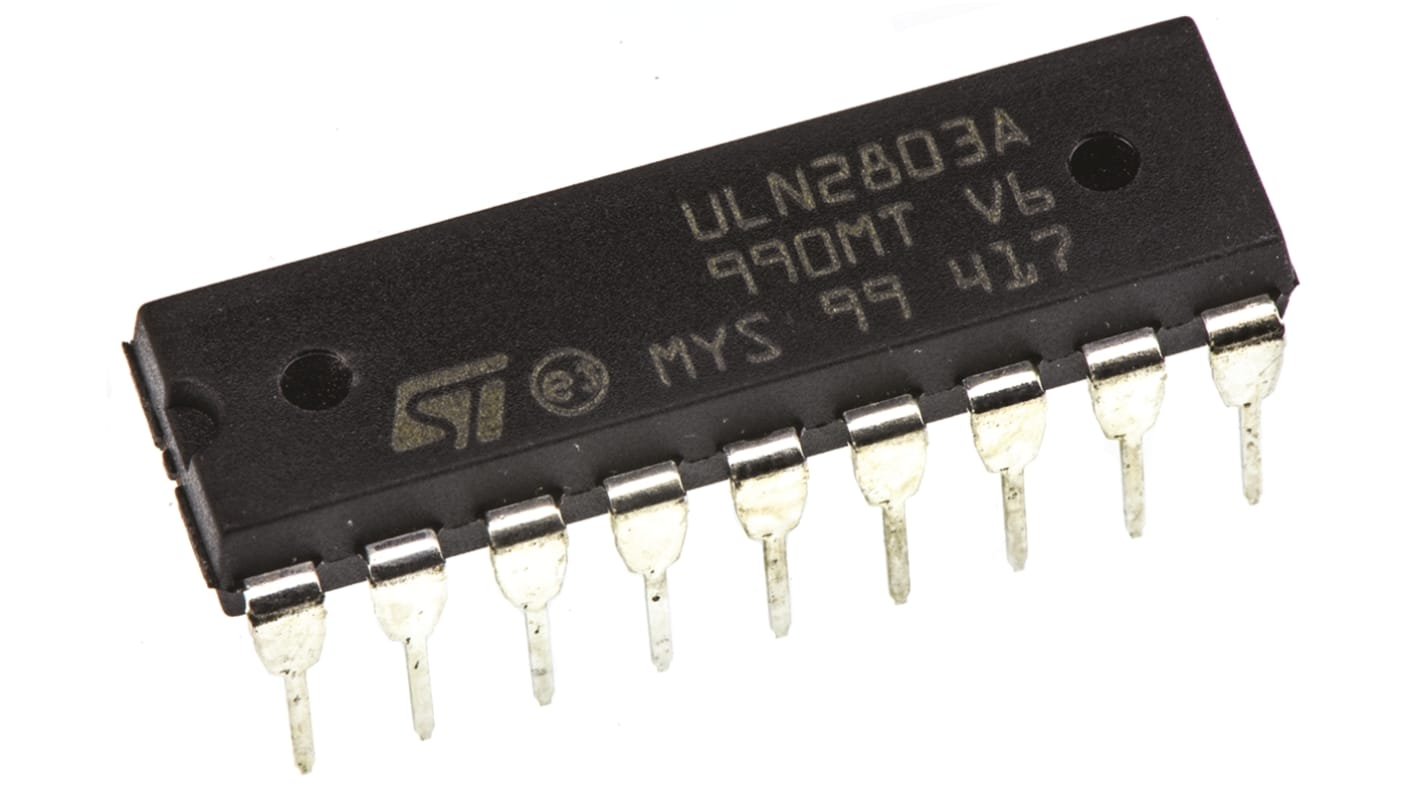

STMicroelectronics ULN2803A Octal NPN Darlington Pair, 500 mA 50 V HFE:1000, 18-Pin PDIP

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Darlington Transistor Arrays, STMicroelectronics

Darlington transistor power drivers are high-voltage, high-current switch arrays containing multiple open-collector Darlington pairs and integral suppression diodes for inductive loads. The high current rating of each output is 500 mA or higher. The inputs are pinned opposite the outputs in the IC package to simplify the application board layout. The interface is standard logic level for TTL or CMOS.

Darlington Transistor Drivers

Specifikationer
Attribute Value
Transistor Type NPN
Maximum Continuous Collector Current 500 mA
Maximum Collector Emitter Voltage 50 V
Maximum Emitter Base Voltage 50 V
Package Type PDIP
Mounting Type Through Hole
Pin Count 18
Transistor Configuration Common Emitter
Number of Elements per Chip 8
Minimum DC Current Gain 1000
Maximum Collector Emitter Saturation Voltage 1.1 V
Dimensions 23.24 x 7.1 x 3.93mm
Height 3.93mm
Maximum Operating Temperature +85 °C
Width 7.1mm
Minimum Operating Temperature -20 °C
Length 23.24mm
2205 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
10,732 kr
(exkl. moms)
13,415 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 45
10,732 kr
53,66 kr
50 - 95
8,81 kr
44,05 kr
100 - 245
8,044 kr
40,22 kr
250 - 495
7,528 kr
37,64 kr
500 +
6,99 kr
34,95 kr
