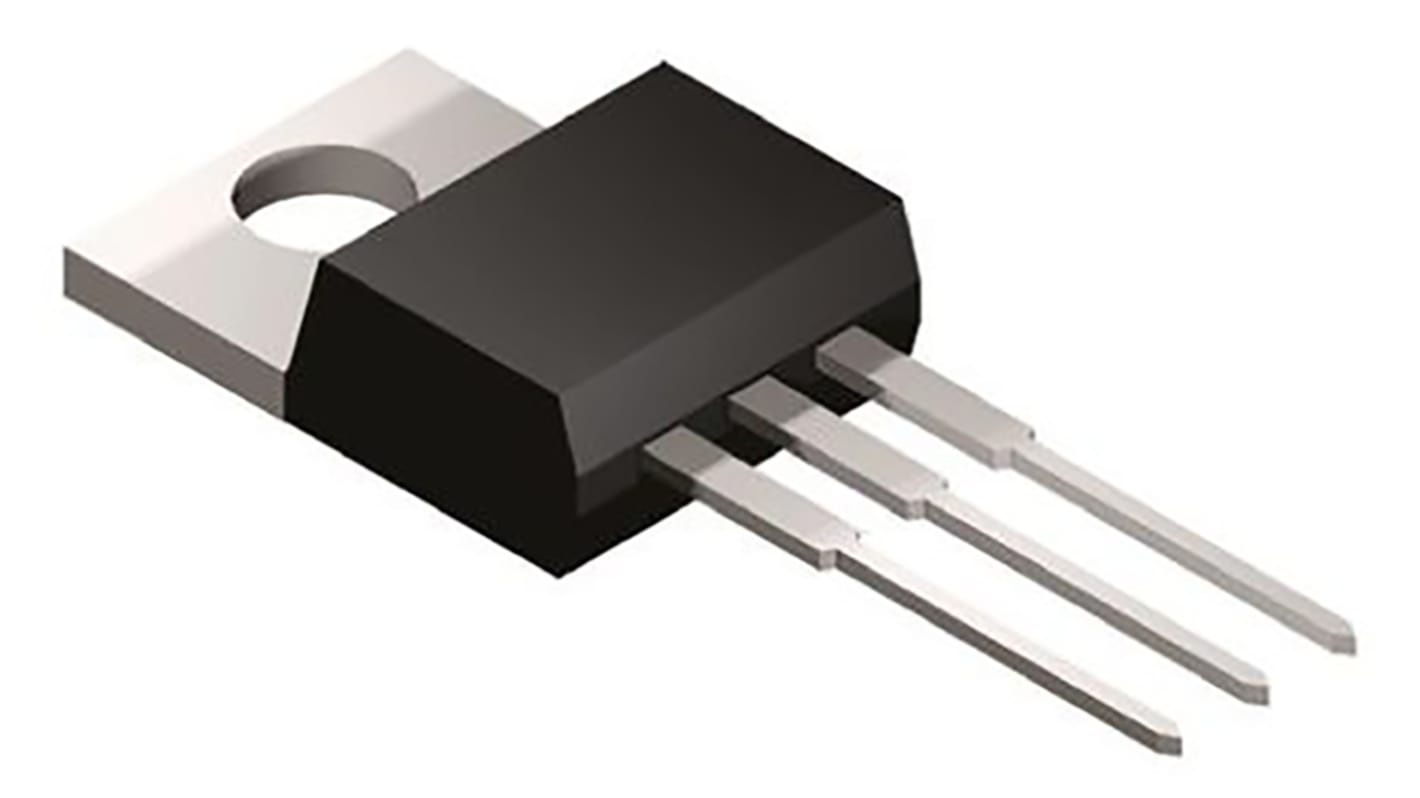

STMicroelectronics TIP132 NPN Darlington Transistor, 8 A 100 V HFE:500, 3-Pin TO-220
- RS-artikelnummer:
- 102-4096
- Tillv. art.nr:
- TIP132
- Tillverkare / varumärke:
- STMicroelectronics
Tillfälligt slut i lager – restorder för leverans 2024-10-30
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 50)
7,126 kr
(exkl. moms)
8,908 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 50 - 50 | 7,126 kr | 356,30 kr |
| 100 - 450 | 4,988 kr | 249,40 kr |
| 500 - 950 | 4,321 kr | 216,05 kr |
| 1000 - 1950 | 3,677 kr | 183,85 kr |
| 2000 + | 3,431 kr | 171,55 kr |
- RS-artikelnummer:
- 102-4096
- Tillv. art.nr:
- TIP132
- Tillverkare / varumärke:
- STMicroelectronics
Lagstiftning och ursprungsland
Produktdetaljer
NPN Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Specifikationer
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 8 A |
| Maximum Collector Emitter Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 500 |
| Maximum Collector Base Voltage | 100 V |
| Maximum Collector Emitter Saturation Voltage | 4 V |
| Maximum Collector Cut-off Current | 0.2mA |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Width | 4.6mm |
| Height | 9.15mm |
| Minimum Operating Temperature | -65 °C |
| Length | 10.4mm |
