9 way M1 field bus D connector,60Vdc/ac

  • RS-artikelnummer 286-1295
  • Tillv. art.nr 2761826
  • Tillverkare / varumärke Phoenix Contact
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): DE
Produktdetaljer

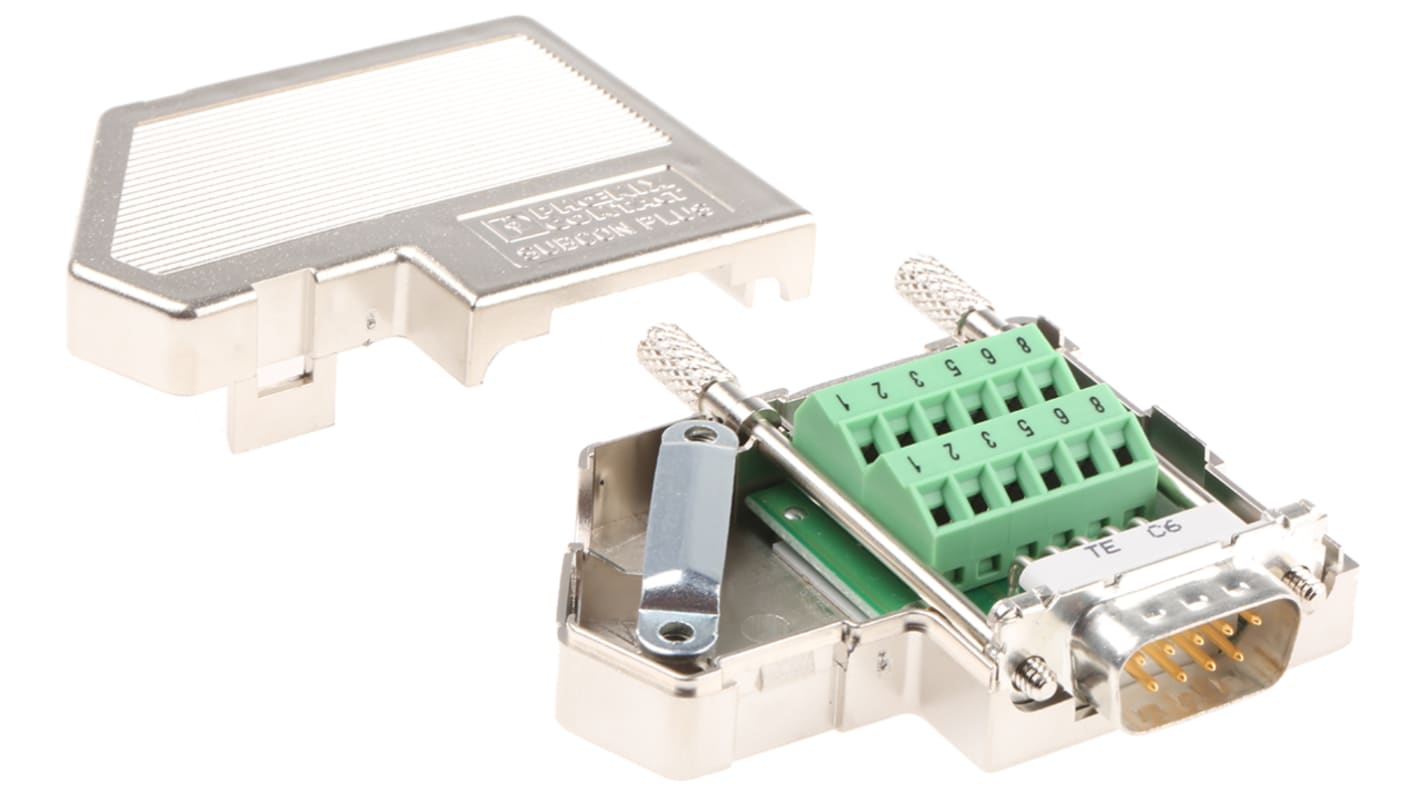

Field Bus Connectors

Similar to the standard rewireable connectors
Ideal for use in numerous bus systems
Double screw terminal blocks with different pin assignments. Only at the end of the bus does the 2nd block remain free for connecting resistors
Cable entry 0° or 90°, left or right
EMC shielded backshells
Specifications as Standard connectors, see compatibility table for pin assignment

Voltage rating 60 Vac/Vdc
Housing material ABS
Temperature range -20°C to +70°C
Technical specification
Voltage rating 60 Vac/Vdc
Housing material ABS
Temperature range -20ºC to +70ºC
Compatibility table
Type Pin assignment Suitable Bus system example
M1 Pins 1,2,3,5,6 & 8 to terminal blocks in two rows Profibus, Modbus, Modbus-plus, Bitbus, Acrnet, Multinet/Mininet, P-net, System 2003
M2 Pins 2,3,4,5,7 & 9 to terminal blocks in two rows CAN-bus, S-bus (Saia), J-bus (Merlin Gerin), Suconet K1/K2 (Moeller)
F2 Pins 2,3,4,5,7 & 9 to terminal blocks in two rows CAN-bus, S-bus (Saia), J-bus (Merlin Gerin), Suconet K1/K2 (Moeller)
F3 Pins 2,3,6,7,8 & 9 to terminal blocks in two rows CAN-open, FIP
F5 Pins 1 (2x),2,3,6 & 7 to terminal blocks in two rows MODBUS

Supplied with

Knurled metal fixing screws.

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
