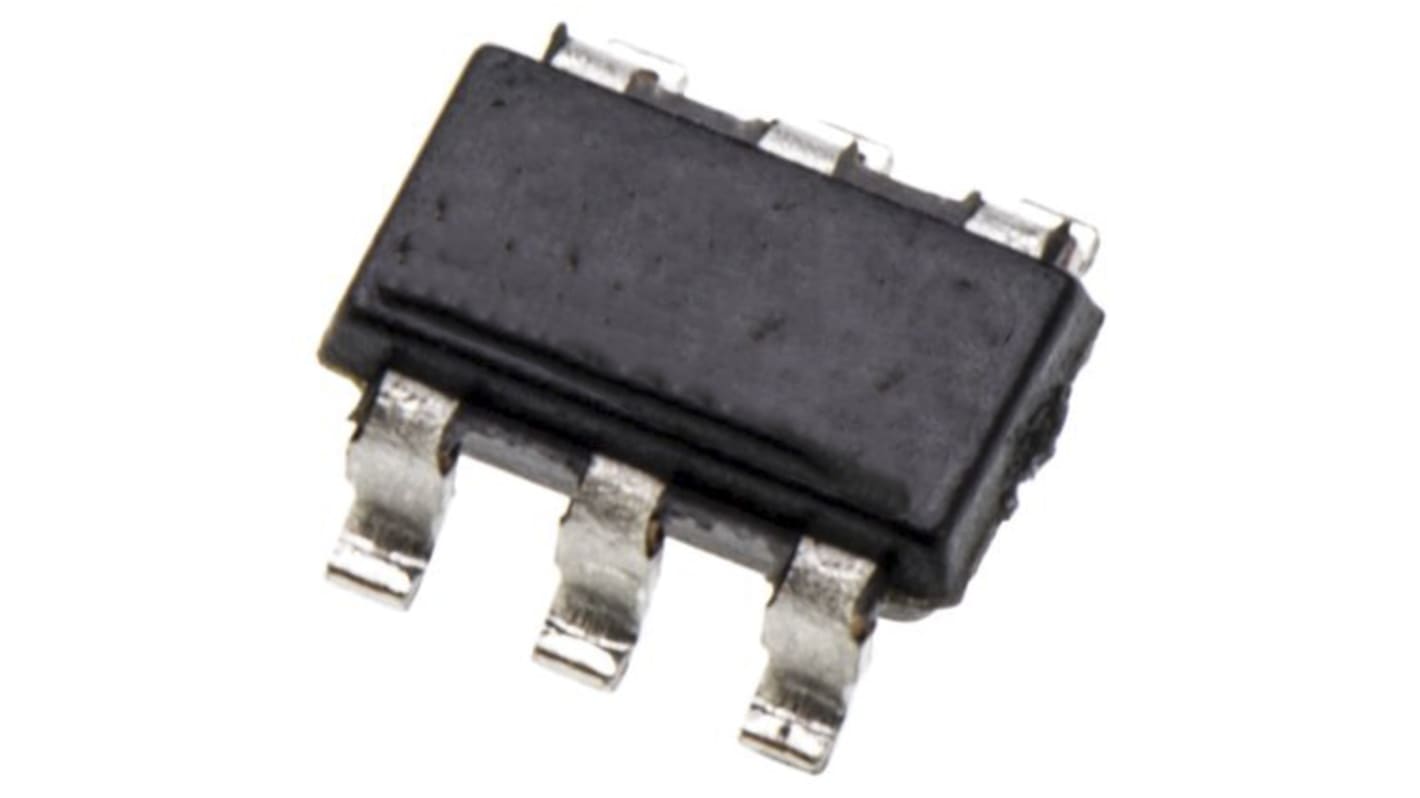

MAX4173TEUT+T Maxim Integrated, Current Sensing Amplifier Single Voltage 6-Pin SOT-23
- RS-artikelnummer:
- 190-6314
- Tillv. art.nr:
- MAX4173TEUT+T
- Tillverkare / varumärke:
- Maxim Integrated
2755 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
21,182 kr
(exkl. moms)
26,478 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 + | 21,182 kr | 105,91 kr |
- RS-artikelnummer:
- 190-6314
- Tillv. art.nr:
- MAX4173TEUT+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
Low-Cost, Compact Current-Sense Solution
High Accuracy +2V to +28V Common-Mode
Range, Functional Down to 0V
Supply Voltage
Three Gain Versions Available
+20V/V (MAX4173T)
+50V/V (MAX4173F)
+100V/V (MAX4173H)
±0.5% Full-Scale Accuracy
±3mV Input Offset Voltage (MAX4173T)
Wide 1.7MHz Bandwidth (MAX4173T)
420μA Supply Current
Available in Space-Saving SOT23 Package
Applications
Functional Diagrams
Notebook Computers
Portable/Battery-Powered Systems
Smart Battery Packs/Chargers
Cell Phones
Power-Management Systems
General System/Board-Level Current Monitoring
PA Bias Control
Precision Current Sources
High Accuracy +2V to +28V Common-Mode
Range, Functional Down to 0V
Supply Voltage
Three Gain Versions Available
+20V/V (MAX4173T)
+50V/V (MAX4173F)
+100V/V (MAX4173H)
±0.5% Full-Scale Accuracy
±3mV Input Offset Voltage (MAX4173T)
Wide 1.7MHz Bandwidth (MAX4173T)
420μA Supply Current
Available in Space-Saving SOT23 Package
Applications
Functional Diagrams
Notebook Computers
Portable/Battery-Powered Systems
Smart Battery Packs/Chargers
Cell Phones
Power-Management Systems
General System/Board-Level Current Monitoring
PA Bias Control
Precision Current Sources
Specifikationer
Attribute | Value |
|---|---|
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 → 28 V |
| Minimum CMRR | 90 (Typ.)dB |
| Number of Channels per Chip | 1 |
| Output Type | Voltage |
| Maximum Supply Current | 1 mA |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 6 |
| Dimensions | 3 x 1.75 x 1.3mm |
| Height | 1.3mm |
| Length | 3mm |
| Maximum Operating Supply Voltage | 28 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
| Width | 1.75mm |
