- RS-artikelnummer:
- 153-3667P
- Tillv. art.nr:
- LFSPXO018034
- Tillverkare / varumärke:
- IQD
530 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje (levereras i en rulle) Quantities below 150 on continuous strip
12,643 kr
(exkl. moms)
15,804 kr
(inkl. moms)
Enheter | Per unit |
100 - 190 | 12,643 kr |
200 - 490 | 12,299 kr |
500 - 740 | 11,977 kr |
750 + | 11,678 kr |
- RS-artikelnummer:
- 153-3667P
- Tillv. art.nr:
- LFSPXO018034
- Tillverkare / varumärke:
- IQD
Lagstiftning och ursprungsland
Produktdetaljer

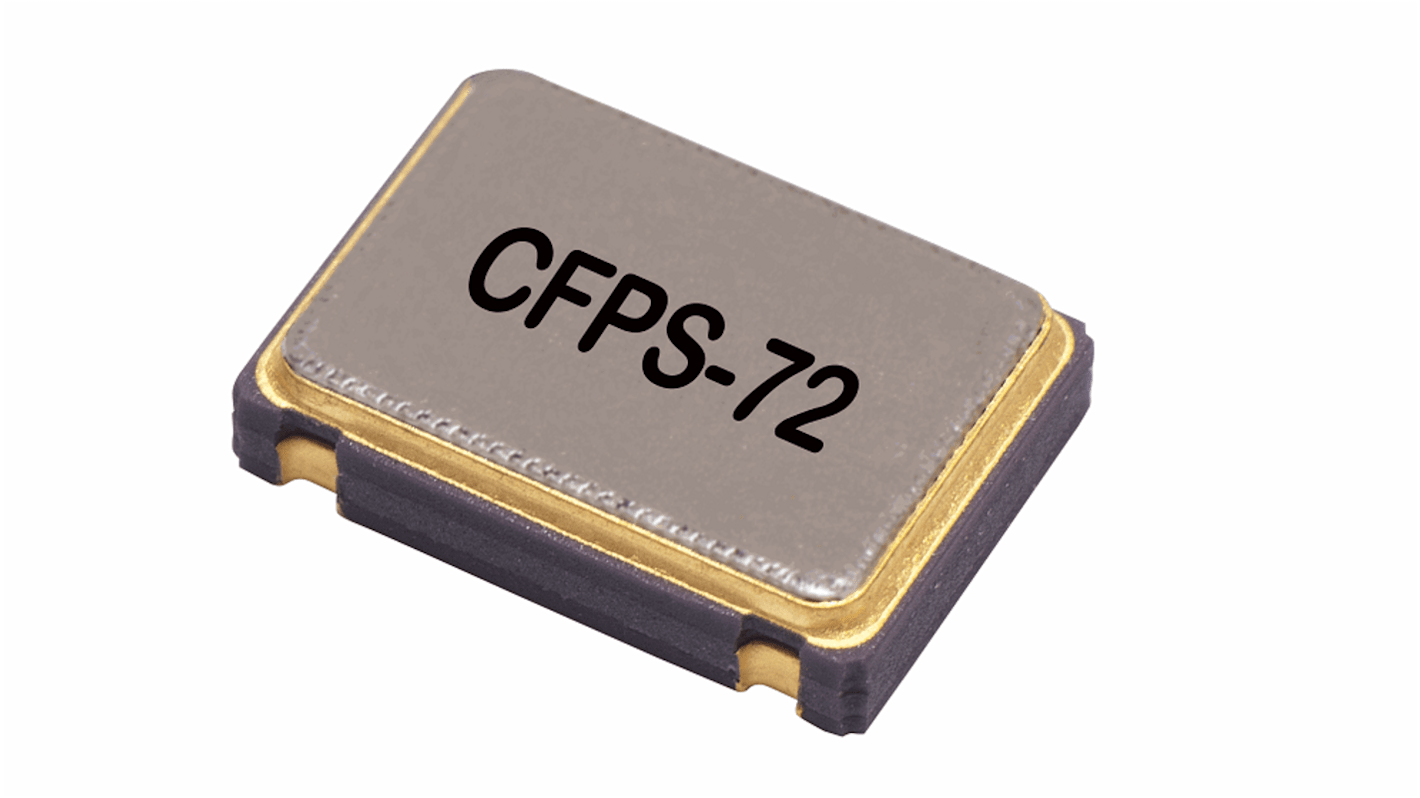

CFPS-72 Crystal Oscillators
CFPS-7S series crystal clock oscillator. These IQD brand SMD's are cased in ceramic with a hermetically sealed metal lid and feature a good standard of environmental properties in relation to shock and vibration. They are available in a standard 7 x 5mm size and have wide frequency parameters.
The IQD Frequency Products LFSPXO018034 Standard 7 x 5mm crystal oscillator in a ceramic package with a seam sealed metal lid, hermetically sealed. The model no is CFPS-72 and model issue no is 14. The operating supply voltage is 5.0V ±10% and it can be draw current of 20mA.
Output compatibility HCMOS/TTL
Drive capability 15pF std, 50pF max
Rise and fall fame 10.0ns max
Duty cycle 45/55%
Start up time 10ms max 1.1ms typ to 90% of final amplitude
Drive capability 15pF std, 50pF max
Rise and fall fame 10.0ns max
Duty cycle 45/55%
Start up time 10ms max 1.1ms typ to 90% of final amplitude
Crystal Oscillators 7x5mm Ceramic case
Specifikationer
Attribute | Value |
---|---|
Oscillator Type | XO |
