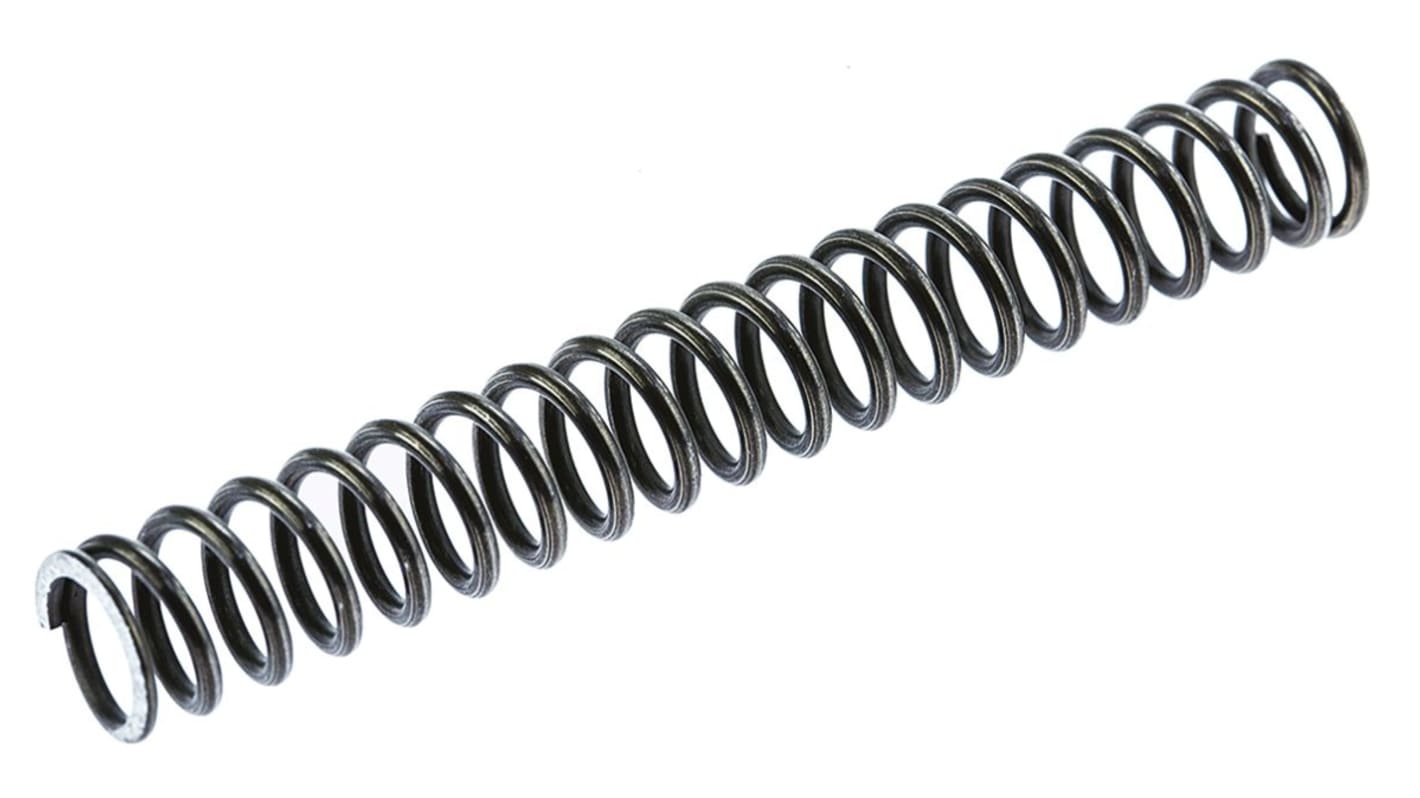

RS PRO Steel Alloy Compression Spring, 69mm x 9.25mm, 2.69N/mm

  • RS-artikelnummer 751-657
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

Music Wire Compression Springs

Wire diameter ends up to 0.8mm are squared and unground
Wire diameter ends 1.00mm and over are squared and ground
Manufactured with a right hand helix

Note

The load at minimum working length is the load required to compress the spring to that length. All dimensions and forces to conform to DIN 2095 (grade 2).

Specifikationer
Attribute Value
Outside Diameter 9.25mm
Wire Diameter 1.25mm
Free Length 69mm
Minimum Working Length 30mm
Load at Minimum Working Length 104.93N
Material Steel Alloy
Spring Rate 2.69N/mm
Ends Closed (Square)/Ground
1230 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
4,015 kr
(exkl. moms)
5,019 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 +
4,015 kr
40,15 kr
