Transair 16 Bar Glass Fibre Reinforced PA Fitting, 67mm outside diameter
- RS-artikelnummer:
- 214-3172
- Tillv. art.nr:
- 6606 40 00
- Tillverkare / varumärke:
- Transair
10 I lager för avsändande samma dag
20 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
555,862 kr
(exkl. moms)
694,828 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 555,862 kr | 2 779,31 kr |
| 25 - 45 | 533,654 kr | 2 668,27 kr |
| 50 + | 511,402 kr | 2 557,01 kr |
- RS-artikelnummer:
- 214-3172
- Tillv. art.nr:
- 6606 40 00
- Tillverkare / varumärke:
- Transair
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer

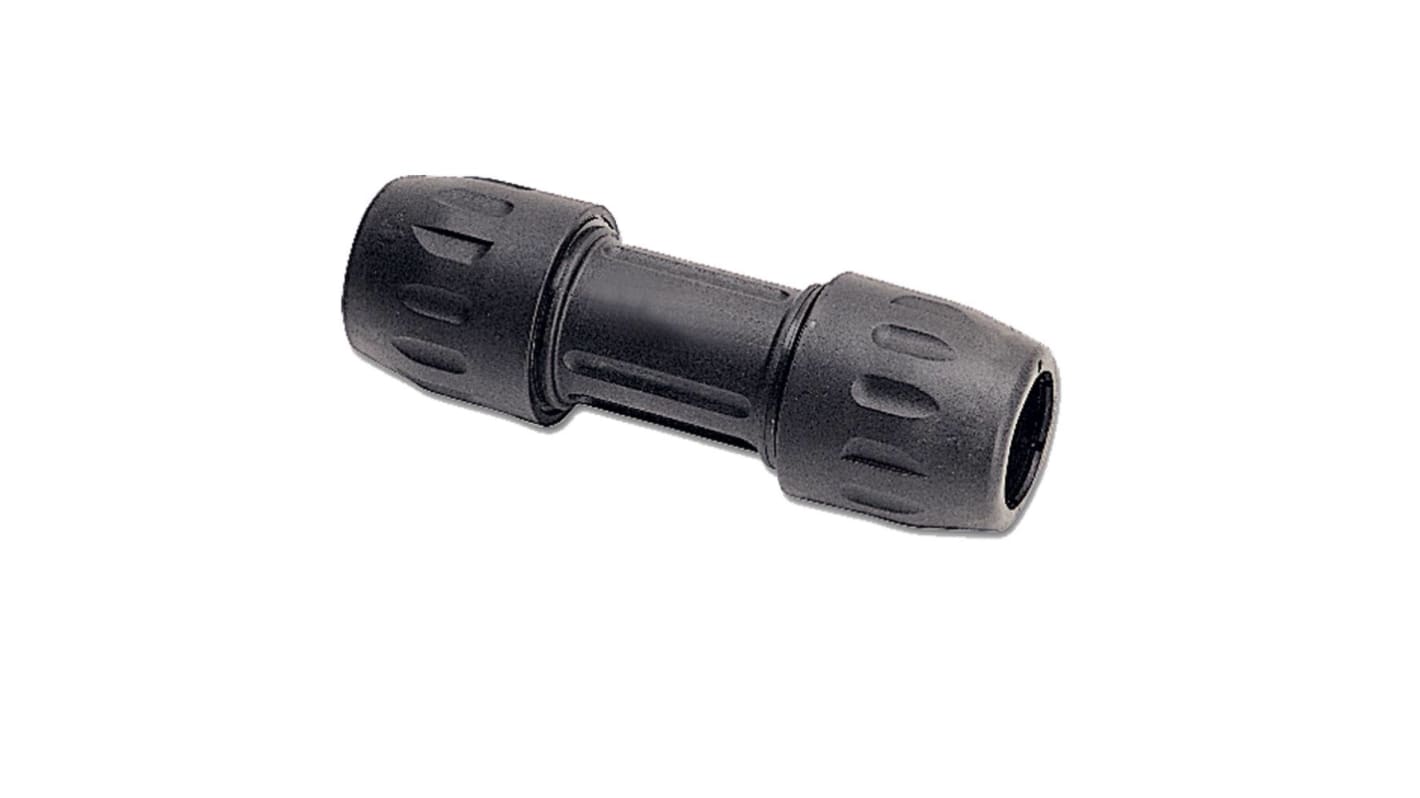

The Parker Transair 6606 series black, union pipe to pipe/stud connector provides versatility of design and helps to overcome constraints often encountered with the structure of industrial buildings. This connector instantly connect to aluminium pipe which has a diameter of 40mm. It features a pressure rating of 232 psi and is made of polyamide with fiberglass body. The pipe connectors use a quick connection technology to provide quick and easy installation of compressed air, vacuum, and inert gas piping systems.
Interchangeable and reusable
Full bore design
Non-flammable materials
Full bore design
Non-flammable materials
This fitting is only compatible with the aluminium pipes of the same brand.
Specifikationer
Attribute | Value |
|---|---|
| Pipe Outside Diameter 2 | 67mm |
| Material | Glass Fibre Reinforced PA |
| Maximum Operating Pressure | 16 Bar |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
