FTDI Chip USB to RS485 Adapter Board, USB-COM485-Plus1

  • RS-artikelnummer 687-7746
  • Tillv. art.nr USB-COM485-Plus1
  • Tillverkare / varumärke FTDI Chip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

USB-COM-PLUS Modules

The USB-COM-PLUS modules provide a simple method of adapting legacy serial devices with RS-232, RS-422 or RS-485 interfaces to modern USB ports.

Versions Available:

(687-7730) USB-COM232-Plus1 - USB to RS232 Adapter
(687-7749) USB-COM232-Plus2 - USB to Dual RS232 Adapter
(687-7742) USB-COM232-Plus4 - USB to Quad RS-232 Adapter
(687-7752) USB-COM422-Plus1 - USB to RS422 Adapter
(687-7761) USB-COM422-Plus2 - USB to Dual RS422 Adapter
(687-7764) USB-COM422-Plus4 - USB to Quad RS422 Adapter
(687-7746) USB-COM485-Plus1 - USB to RS485 Adapter
(687-7755) USB-COM485-Plus2 - USB to Dual RS485 Adapter
(687-7758) USB-COM485-Plus4 - USB to Quad RS-485 Adapter

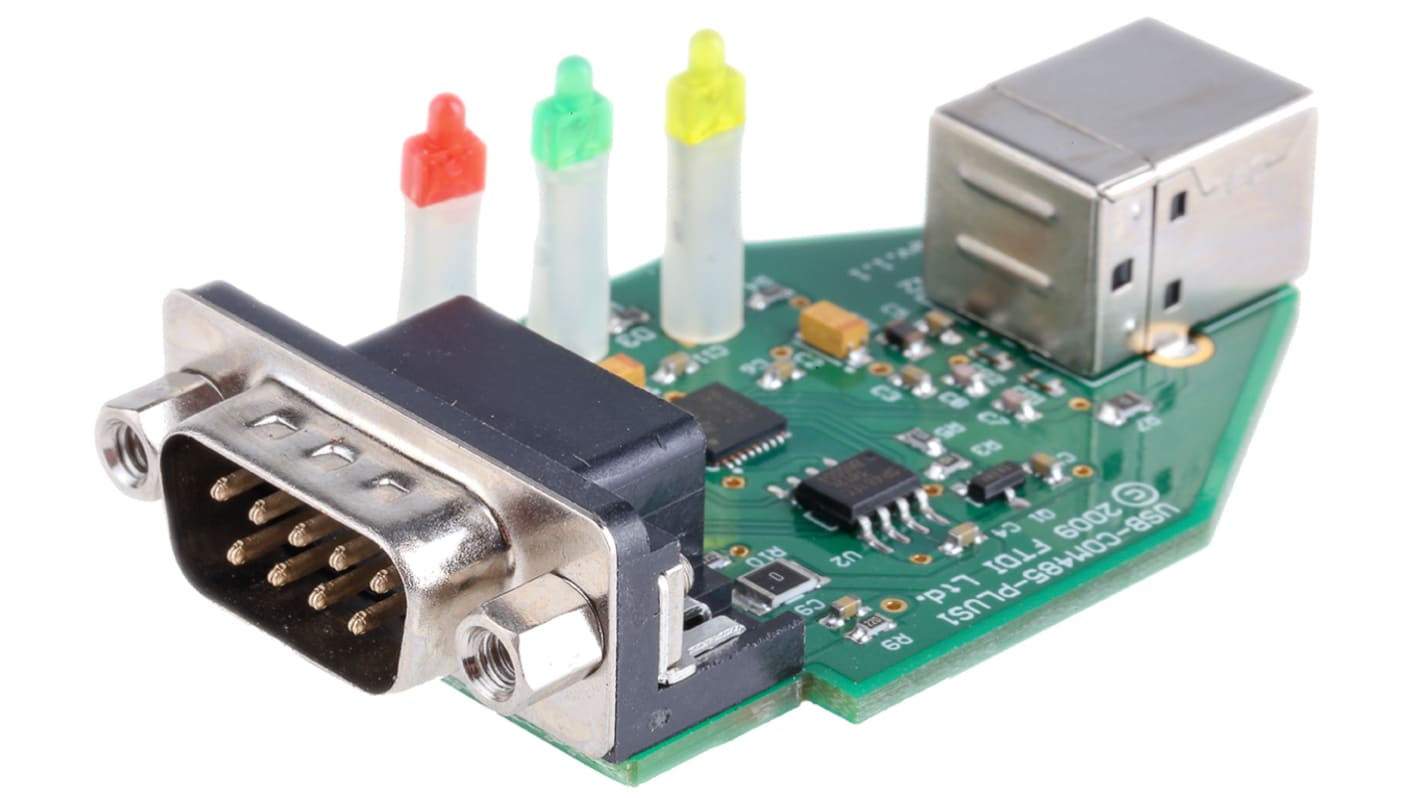

The FTDI Chip USB-COM485-Plus1 is a USB to RS485 adapter board. It provides a straight-forward way to convert older devices with as RS485 interface to more up-to-date USB ports. The USB-COM485-Plus1 features RS485 level shifters and the FT232R USB-Serial bridge IC which enables the conversion.

There are 3 LEDs on the USB-COM485-Plus1. A yellow LED indicates when the board is configured and ready. A green LED represents TxD activity when the data is transmitted to the RS485. Finally, there is a red LED which is for the same but with RxD activity.

What connectors are on-board?
1 x 12Mbps USB type B 2.0 male connector
1 x DE-9P male connector
Note: it works with USB 1.1 and 2.0 host and hub ports

What is the maximum data rate?
The maximum RS485 level data rate is 3Mbps.

Specifikationer
Attribute Value
Kit Classification Development Kit
120 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
249,30 kr
(exkl. moms)
311,62 kr
(inkl. moms)
Enheter
Per unit
1 - 4
249,30 kr
5 - 9
236,99 kr
10 - 19
225,21 kr
20 - 49
213,93 kr
50 +
204,73 kr
