Nordic Semiconductor nRF21540 DB nRF21540 Bluetooth, ZigBee Development Kit, Evaluation Kit for nRF21540 2.4GHz
- RS-artikelnummer:
- 230-3124
- Tillv. art.nr:
- nRF21540-DB
- Tillverkare / varumärke:
- Nordic Semiconductor
1 I lager för avsändande samma dag
Pris (ex. moms) Varje
965,72 kr
(exkl. moms)
1 207,15 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 1 | 965,72 kr |
| 2 - 4 | 940,21 kr |
| 5 - 9 | 916,26 kr |
| 10 + | 893,30 kr |
- RS-artikelnummer:
- 230-3124
- Tillv. art.nr:
- nRF21540-DB
- Tillverkare / varumärke:
- Nordic Semiconductor
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PL
Produktdetaljer

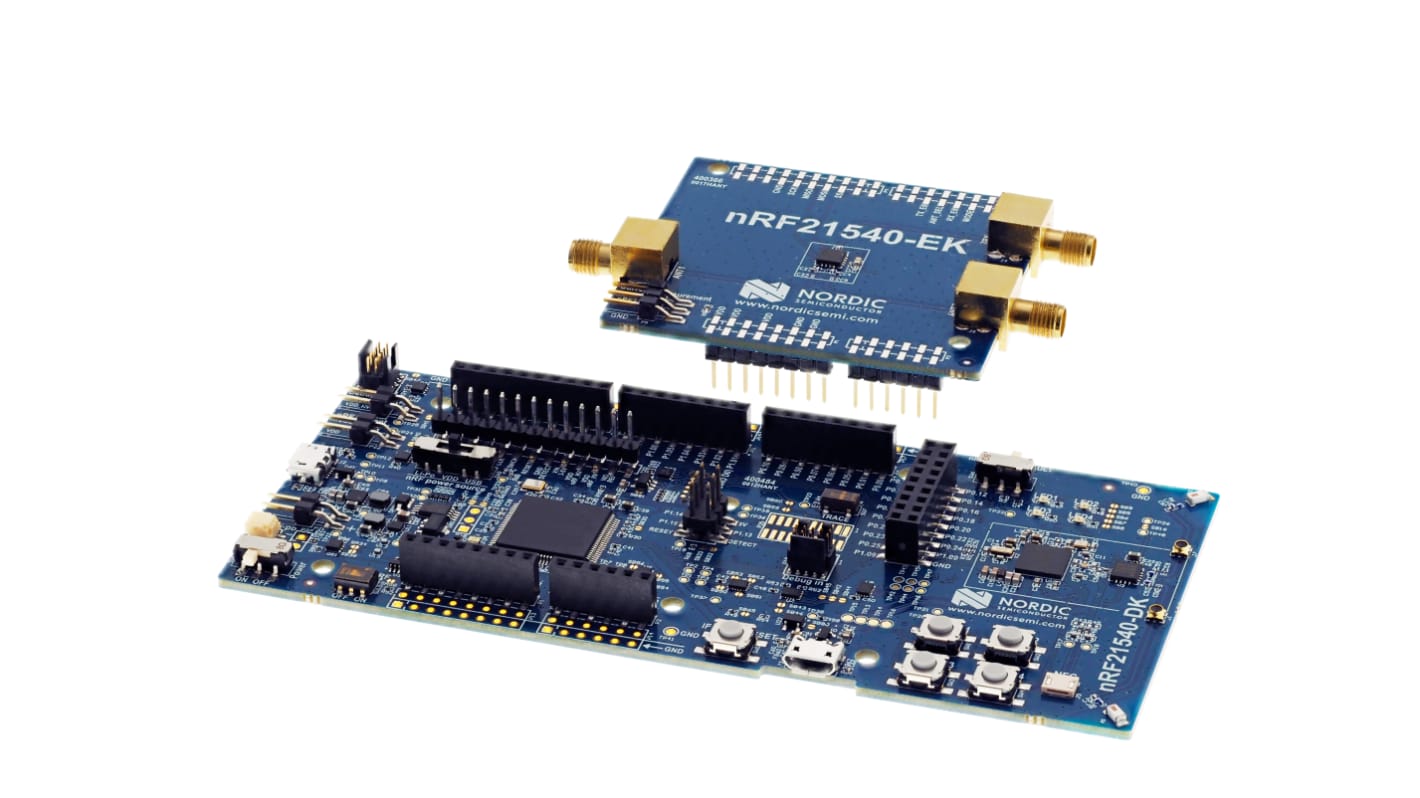

Development Bundle consisting of an EK and DK, both with an RF front end module (FEM) for 2.4 GHz wireless range extension
Package content
1x nRF21540 DK, 1x nRF21540 EK1
nRF21540 EK
RF FEM Evaluation Kit for 2.4 GHz wireless range extension
Wireless protocol support - Bluetooth Low Energy/Bluetooth mesh/, 802.15.4/Thread/Zigbee/2.4 GHz proprietary
Antennas - 2 SMA antenna ports
Digital interfaces - SPI and I/Os
Power supply - 1.7 to 3.6 V
Power source - 1.7 to 3.6 V
Antennas - 2 SMA antenna ports
Digital interfaces - SPI and I/Os
Power supply - 1.7 to 3.6 V
Power source - 1.7 to 3.6 V
nRF21540 DK
Wireless protocol support - Bluetooth Low Energy/Bluetooth mesh/, 802.15.4/Thread/Zigbee/2.4 GHz proprietary
Antennas - 2 chip antennas, 2 SWF antenna ports
Analog interfaces - ADC
Digital interfaces - USB 2.0, NFC-A Tag, UART, TWI, I2S, PDM, PWM, QDEC,SPI, I/O’s
Power supply - 1.7 to 5.5 V
Power source - USB, external Li-Po battery (not included)
Debugger - SEGGER J-Link OB
Buttons - 4
LEDs - 4
Antennas - 2 chip antennas, 2 SWF antenna ports
Analog interfaces - ADC
Digital interfaces - USB 2.0, NFC-A Tag, UART, TWI, I2S, PDM, PWM, QDEC,SPI, I/O’s
Power supply - 1.7 to 5.5 V
Power source - USB, external Li-Po battery (not included)
Debugger - SEGGER J-Link OB
Buttons - 4
LEDs - 4
RF FEM Development Kit for 2.4 GHz wireless range extension
Specifikationer
Attribute | Value |
|---|---|
| Classification | Development Kit, Evaluation Kit |
| RF Technology | Bluetooth, ZigBee |
| Kit Classification | Development Kit, Evaluation Kit |
| For Use With | nRF21540 |
| Featured Device | nRF21540 |
| Frequency | 2.4GHz |
| Kit Name | nRF21540 DB |
