RS PRO, jack Panel Mount N Connector, 50Ω, Crimp Termination, Straight Body
- RS-artikelnummer:
- 793-3588
- Tillverkare / varumärke:
- RS PRO
853 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
123,62 kr
(exkl. moms)
154,52 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 123,62 kr |
| 10 - 24 | 117,28 kr |
| 25 - 49 | 109,73 kr |
| 50 - 99 | 103,60 kr |
| 100 + | 95,83 kr |
- RS-artikelnummer:
- 793-3588
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

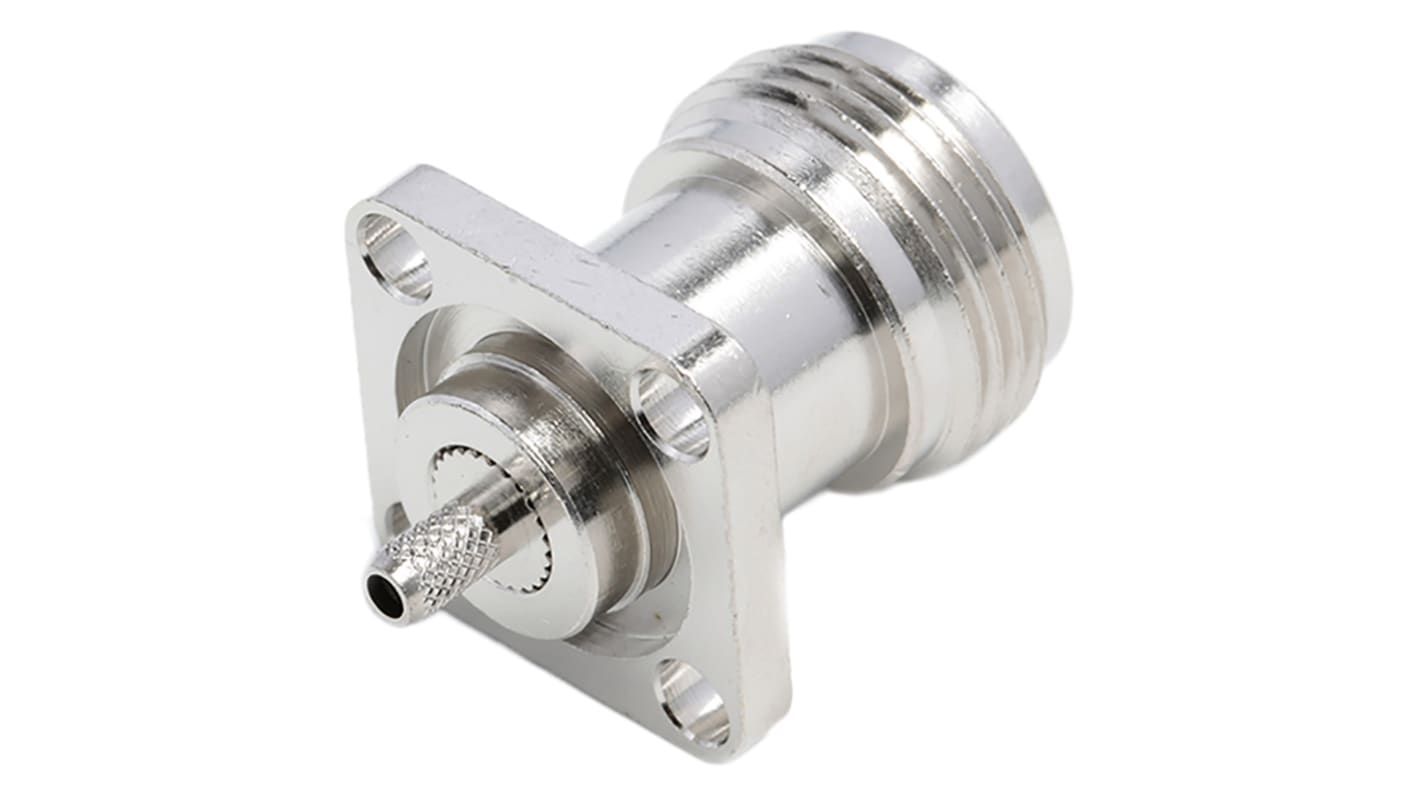

RS Waterproof IP68 50 Ohm N Series RF Coaxial Square Flange Crimp Jack
50 Ohm N series square flange crimp jack with waterproof IP68 inner sealing against gas and moisture ingress between insuslators, inner and outer conductors and connector body. This waterproof N series crimp jack has a nickel plated brass body, teflon insulator, rubber 'O' rings and a gold plated centre contact. The flange of this N series waterproof crimp jack is 17.5 x 17.5mm in size with 4 x 3.2mm diameter holes. The suitable RF coaxial cable for this IP68 sealed N series jack is RG174/U
Specifikationer
Attribute | Value |
|---|---|
| Gender | Female |
| Coaxial Connector Type | N Connector |
| Mounting Type | Panel Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | RG174/U |
| Operating Frequency | 0 to 3GHz |
| Body Plating | Nickel |
| Contact Material | Gold |
| Contact Plating | Brass |
