Wurth Elektronik WR-RPSMA Series, jack PCB Mount SMA Connector, Solder Termination, Straight Body
- RS-artikelnummer:
- 180-9925
- Tillv. art.nr:
- 63012002124503
- Tillverkare / varumärke:
- Wurth Elektronik
Tillfälligt slut i lager – restorder för leverans 2024-08-05
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 180)
46,637 kr
(exkl. moms)
58,296 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 180 + | 46,637 kr | 8 394,66 kr |
- RS-artikelnummer:
- 180-9925
- Tillv. art.nr:
- 63012002124503
- Tillverkare / varumärke:
- Wurth Elektronik
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

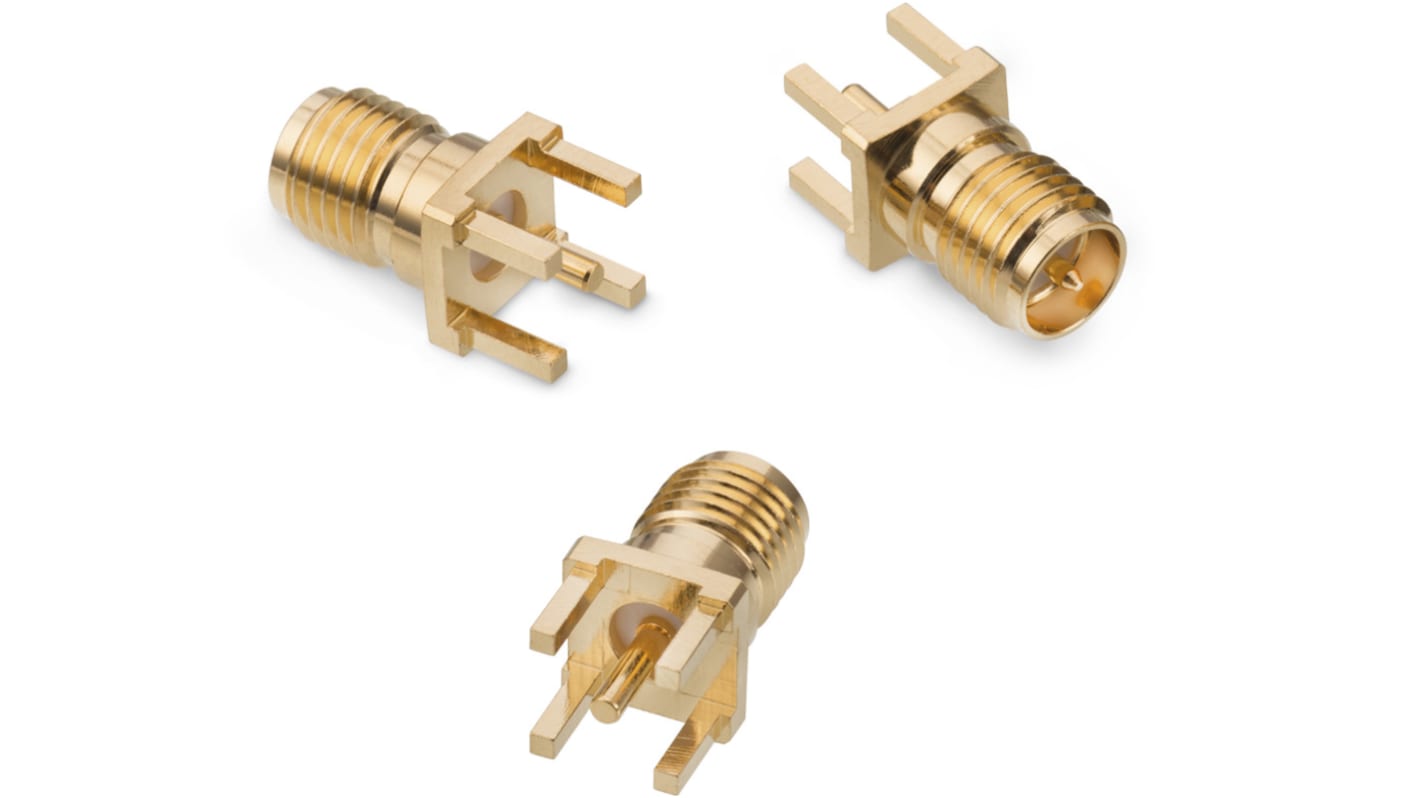

The Wurth Elektronik WR-RPSMA is a THT mount, straight jack RP(Reverse polarity)SMA connector made of brass material.
RoHS compliant
Operating temperature ranging between -65°C up to +165°C
500 mating cycles
Operating temperature ranging between -65°C up to +165°C
500 mating cycles
Specifikationer
Attribute | Value |
|---|---|
| Gender | Female |
| Coaxial Connector Type | SMA Connector |
| Mounting Type | PCB Mount |
| Termination Method | Solder |
| Body Orientation | Straight |
| Size | Standard |
| Operating Frequency | 18GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Gold over Nickel |
| Maximum Operating Temperature | +165°C |
| Polarity | Reverse |
| Series | WR-RPSMA |
| Contact Material | Brass |
| Contact Plating | Gold over Nickel |
| Mating Type | Threaded |
