- RS-artikelnummer:
- 794-2841
- Tillverkare / varumärke:
- RS PRO
82 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
104,53 kr
(exkl. moms)
130,66 kr
(inkl. moms)
Enheter | Per unit |
1 - 14 | 104,53 kr |
15 - 49 | 100,98 kr |
50 + | 95,83 kr |
- RS-artikelnummer:
- 794-2841
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

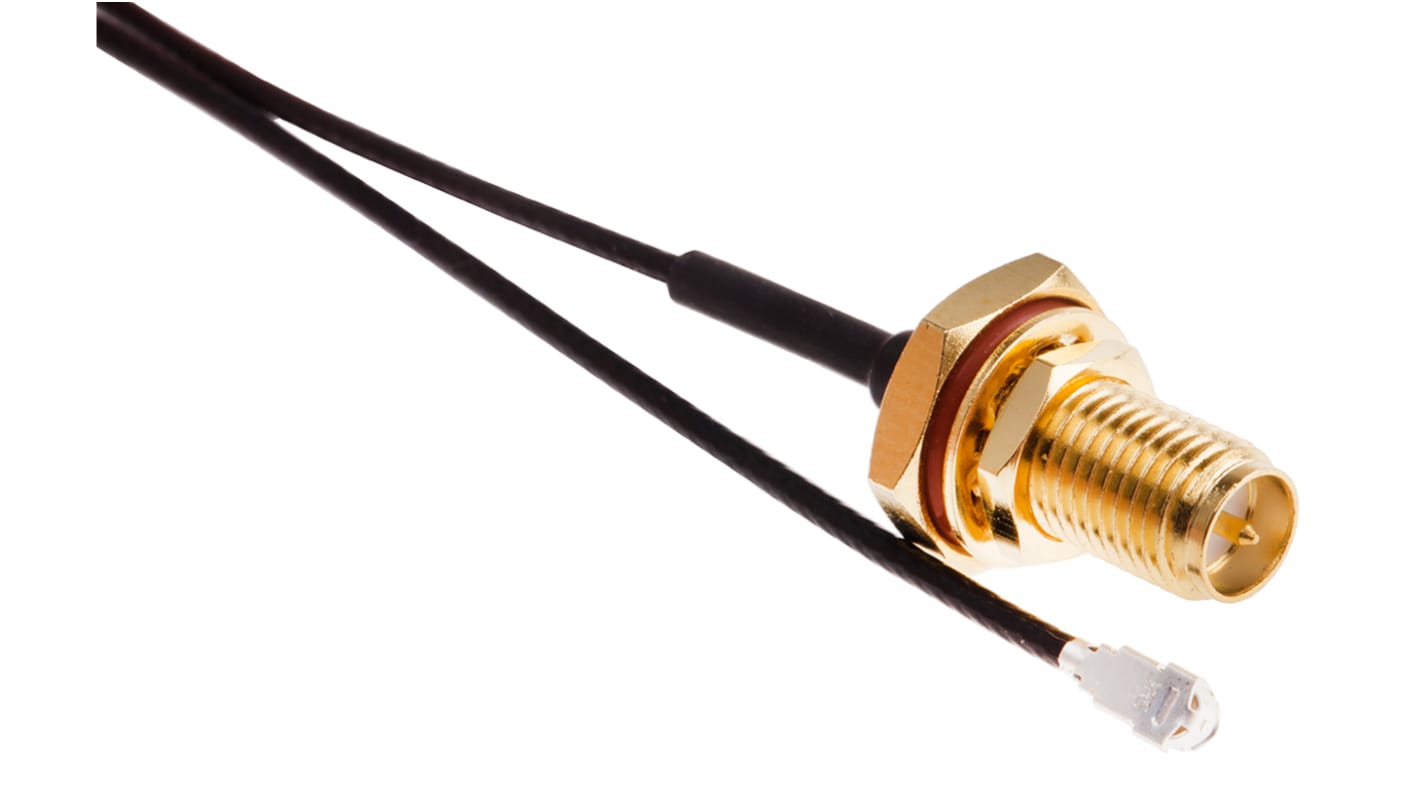

RS PRO Black Male RP-SMA to Female U.FL RF Coaxial Cable, 50 Ω
This radio frequency (RF) cable from RS PRO is designed for use inside a piece of equipment for carrying high-frequency signals from a small U.FL connector on a board to the side of the case. The U.FL connector is small and fragile, so you don't want to apply any stress or strain to it, however, it is very convenient for mounting onto a circuit board. This cable has a panel-mount SubMiniature version A (SMA) connector on the other end, which can be mounted securely through a hole in the side of the case, ensuring that there's no movement to damage the U.FL connector.
This cable works with signals up to 3 GHz and so is ideal for 2.4 GHz wireless LAN or Bluetooth signals, or other lower frequency radio signals. It would typically be used in larger radio devices to connect an internal encoder board to an external antenna.
This cable works with signals up to 3 GHz and so is ideal for 2.4 GHz wireless LAN or Bluetooth signals, or other lower frequency radio signals. It would typically be used in larger radio devices to connect an internal encoder board to an external antenna.
Features and Benefits
• Coaxial cable shape
• Characteristic impedance of 50 Ω
• RF (radio frequency) coaxial type
• Connector A is a male RP-SMA connector
• Connector B is a female U.FL connector
• Length of 300 mm
• Black sheath colour
• Terminated
• Voltage rating of 250 V
• Characteristic impedance of 50 Ω
• RF (radio frequency) coaxial type
• Connector A is a male RP-SMA connector
• Connector B is a female U.FL connector
• Length of 300 mm
• Black sheath colour
• Terminated
• Voltage rating of 250 V
Specifikationer
Attribute | Value |
---|---|
Connector 1 | RP-SMA |
Terminated/Unterminated | Terminated |
Connector 2 | U.FL |
Coaxial Type | RF |
Connector 1 Gender | Female |
Connector 2 Gender | Female |
Characteristic Impedance | 50 Ω |
Length | 300mm |
Sheath Colour | Black |
Voltage Rating | 250 V |
