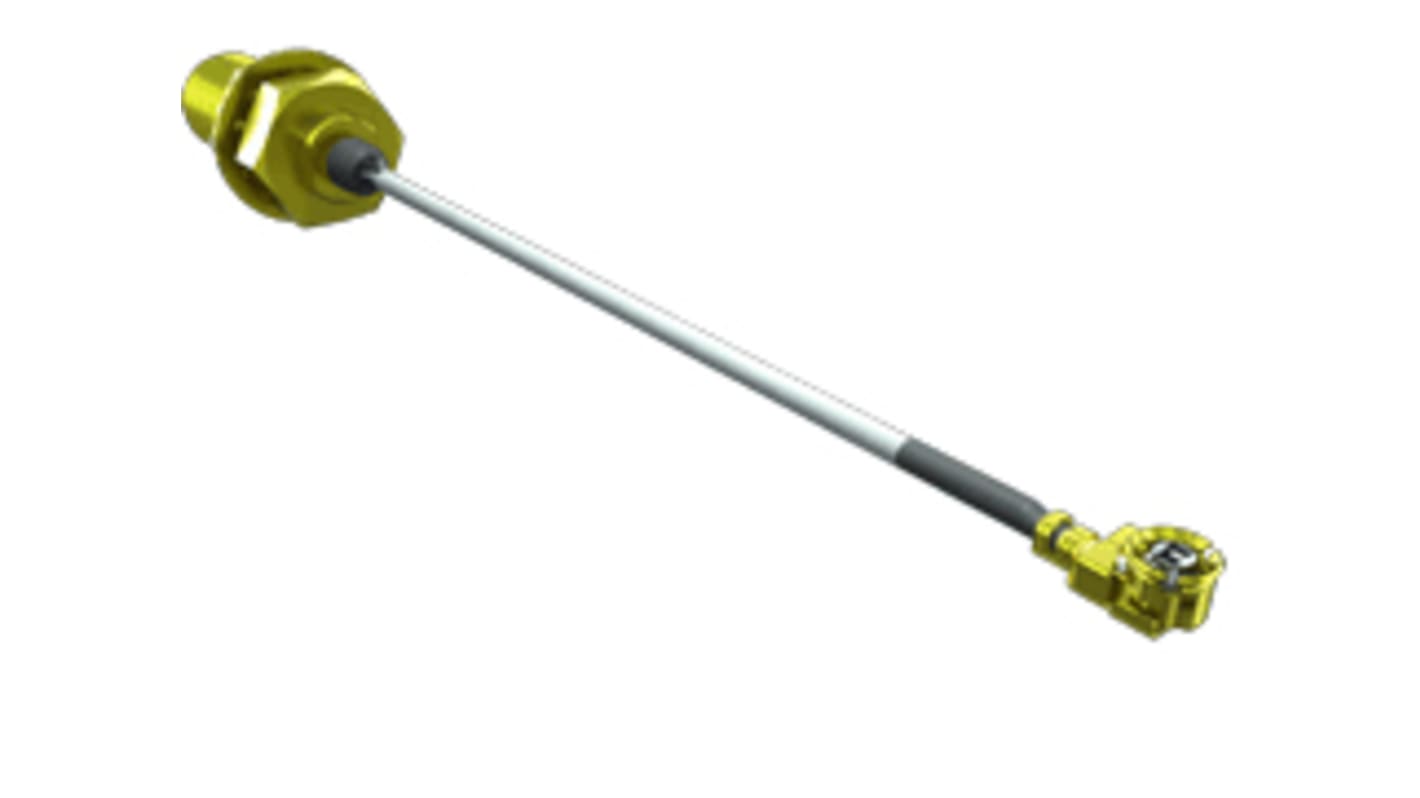

Samtec MH113 Series Male MHF1 to Male SMA Coaxial Cable, 300mm, RF Coaxial, Terminated
- RS-artikelnummer:
- 158-7714
- Tillv. art.nr:
- MH113-MH1RP-01BJ1-0300
- Tillverkare / varumärke:
- Samtec
Tillfälligt slut i lager – restorder för leverans 2024-05-20
Lagt till varukorgen
Pris (ex. moms) Varje
146,16 kr
(exkl. moms)
182,70 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 146,16 kr |
| 10 - 24 | 134,56 kr |
| 25 - 49 | 125,81 kr |
| 50 + | 116,73 kr |
- RS-artikelnummer:
- 158-7714
- Tillv. art.nr:
- MH113-MH1RP-01BJ1-0300
- Tillverkare / varumärke:
- Samtec
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Micro High Frequency RF Cable Assembly, 1.13 mm DIA Coax Cable
32 AWG, 1.13 mm (.045") diameter cable
50 ohm impedance
Available with MHF1 type plug or SMA bulkhead jack terminations
U.FL type
Performance up to 3 GHz
50 ohm impedance
Available with MHF1 type plug or SMA bulkhead jack terminations
U.FL type
Performance up to 3 GHz
Specifikationer
Attribute | Value |
|---|---|
| Connector 1 | MHF1 |
| Terminated/Unterminated | Terminated |
| Coaxial Type | RF |
| Connector 2 | SMA |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Outer Diameter | 1.13mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 2 dB |
| Length | 300mm |
| Sheath Colour | White |
| Voltage Rating | 170 V |
| Standards Met | UL |
| Capacitance | 95pF/m |
| Shielding | Tinned Copper Braid |
| Operating Temperature Range | -40 → +90 °C |
| Series | MH113 |
| Sheath Material | FEP |
| Insulation Material | PBT, PTFE |
| Conductor Material | Copper |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +90°C |
