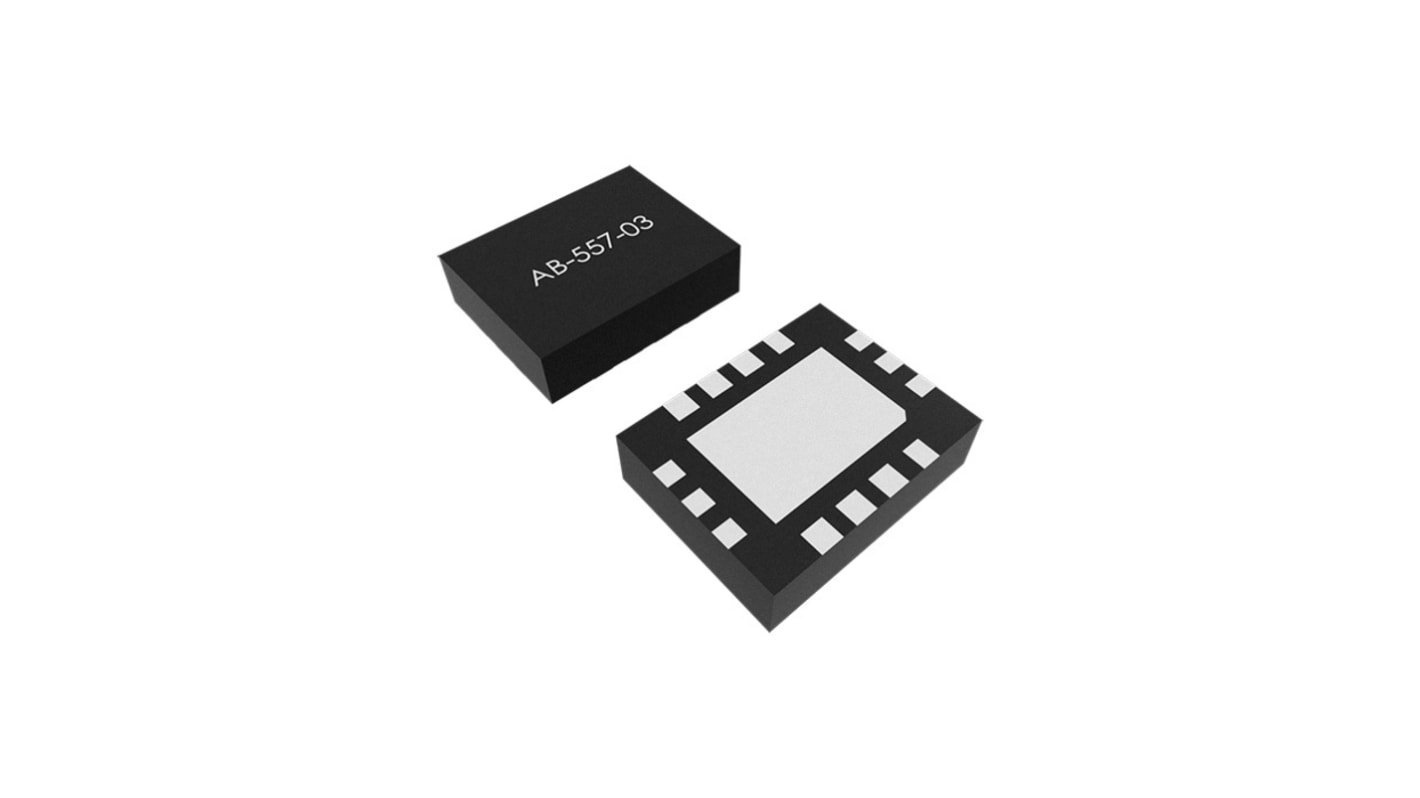

Abracon AB-557-03-HCHC-F-L-C-T, Frequency Synthesizer 1 3.6 V 14-Pin TSSOP-16
- RS-artikelnummer:
- 241-2964
- Tillv. art.nr:
- AB-557-03-HCHC-F-L-C-T
- Tillverkare / varumärke:
- Abracon
584 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
60,55 kr
(exkl. moms)
75,69 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 48 | 60,55 kr | 121,10 kr |
| 50 - 98 | 55,505 kr | 111,01 kr |
| 100 - 248 | 53,01 kr | 106,02 kr |
| 250 - 498 | 51,90 kr | 103,80 kr |
| 500 + | 50,35 kr | 100,70 kr |
- RS-artikelnummer:
- 241-2964
- Tillv. art.nr:
- AB-557-03-HCHC-F-L-C-T
- Tillverkare / varumärke:
- Abracon
Lagstiftning och ursprungsland
Produktdetaljer
The Abracon CRYSTAL-LESS PCI EXPRESS is dual output ultra miniature pure silicon smd clock generator. It is used in solid state storage area networks, passive optical networks, Ethernet: 1G, 10GBASE-T/KR/LR/SR, and FCoE, TV and other Consumer Electronics, Industrial and Medical, Scanner, Printer.
Meets PCIe Gen1, Gen2, & Gen3 specs.
High Performance MEMS Technology by Discera
Available Mixed Output Formats: HCSL, LVPECL, LVDS or LVCMOS
Wide Temperature Range: -40° to 105° C
Wide Supply Range: 2.25V to 3.6 V
Low Power Consumption
Excellent Shock & Vibration Immunity
High Performance MEMS Technology by Discera
Available Mixed Output Formats: HCSL, LVPECL, LVDS or LVCMOS
Wide Temperature Range: -40° to 105° C
Wide Supply Range: 2.25V to 3.6 V
Low Power Consumption
Excellent Shock & Vibration Immunity
Specifikationer
Attribute | Value |
|---|---|
| Maximum Output Frequency | 460MHz |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Package Type | TSSOP-16 |
| Pin Count | 14 |
| Maximum Operating Supply Voltage | 3.6 V |
