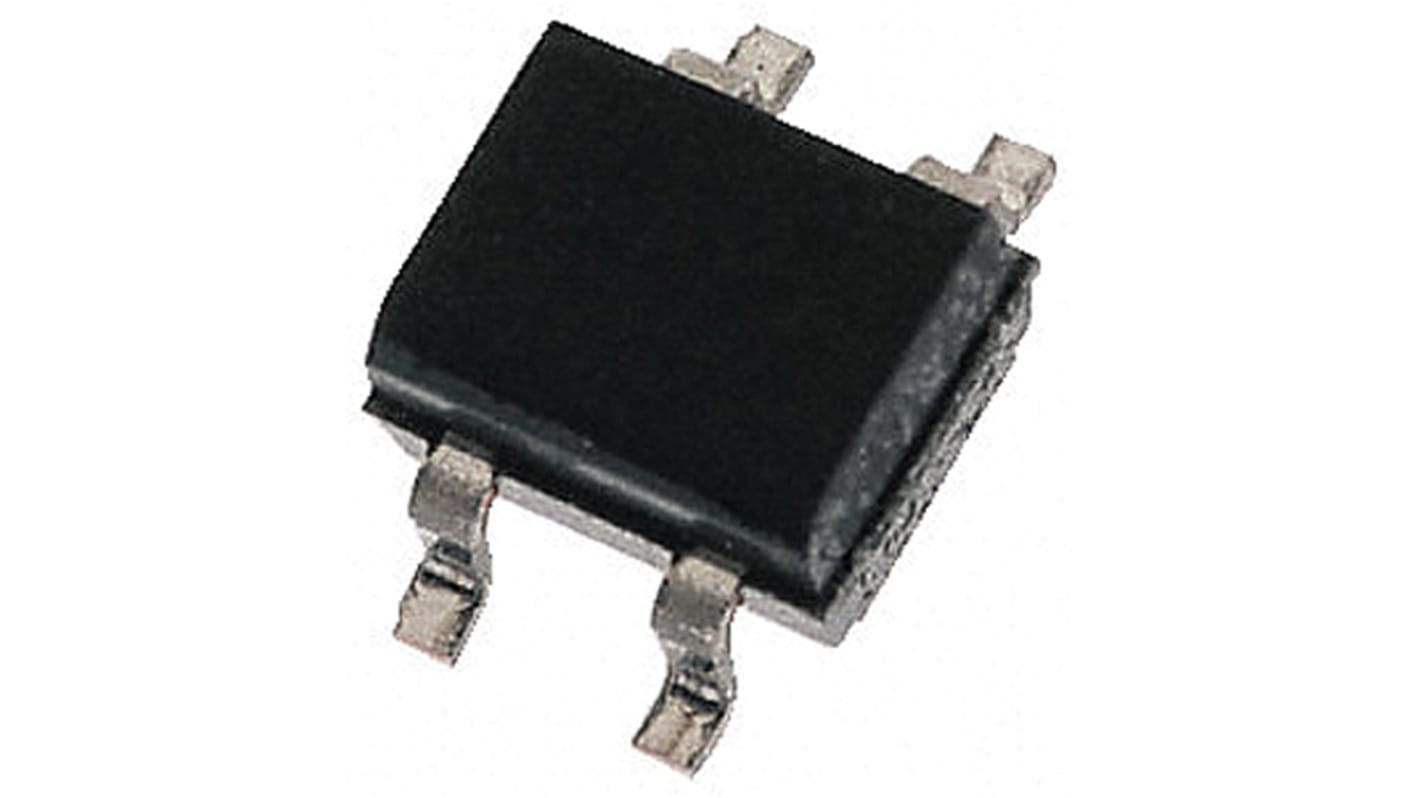

HY Electronic Corp Bridge Rectifier, 500mA, 600V, 4-Pin
- RS-artikelnummer:
- 917-8941P
- Tillv. art.nr:
- MB6S
- Tillverkare / varumärke:
- HY Electronic Corp
Denna produkt har utgått
- RS-artikelnummer:
- 917-8941P
- Tillv. art.nr:
- MB6S
- Tillverkare / varumärke:
- HY Electronic Corp
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Bridge Rectifier - MB Series
The glass passivated MB Series is a surface mount rectifier which is available in 0.8 A or 1 A in either 600 V or 1000 VRRM. The bridge rectifier from HY Electronic (Cayman) Limited converts AC to DC and is in printed circuit board (PCB) applications. The leads are tin plated copper and the bridge rectifier has a 1000 PRV rating.
Bridge Rectifiers - HY Electronic (Cayman) Limited
Specifikationer
Attribute | Value |
|---|---|
| Peak Average Forward Current | 500mA |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 35A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 500µA |
| Dimensions | 4.95 x 4.2 x 2.7mm |
| Length | 4.95mm |
| Height | 2.7mm |
| Width | 4.2mm |
