Infineon CYBT-413034-02 Bluetooth Module 5

RS-artikelnummer:: 187-7658
Tillv. art.nr:: CYBT-413034-02
Tillverkare / varumärke:: Infineon

Infineon CYBT-413034-02 Bluetooth Module 5

Tyvärr har vi inte denna produkt i lager.

Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.

Lagt till varukorgen

Pris (ex. moms) Var (i en rulle med 500)

78,93 kr

(exkl. moms)

98,66 kr

(inkl. moms)

Enheter	Per unit	Per Reel*
500 +	78,93 kr	39 465,00 kr

RS-artikelnummer:: 187-7658
Tillv. art.nr:: CYBT-413034-02
Tillverkare / varumärke:: Infineon

Datablad

Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: CN

Produktdetaljer

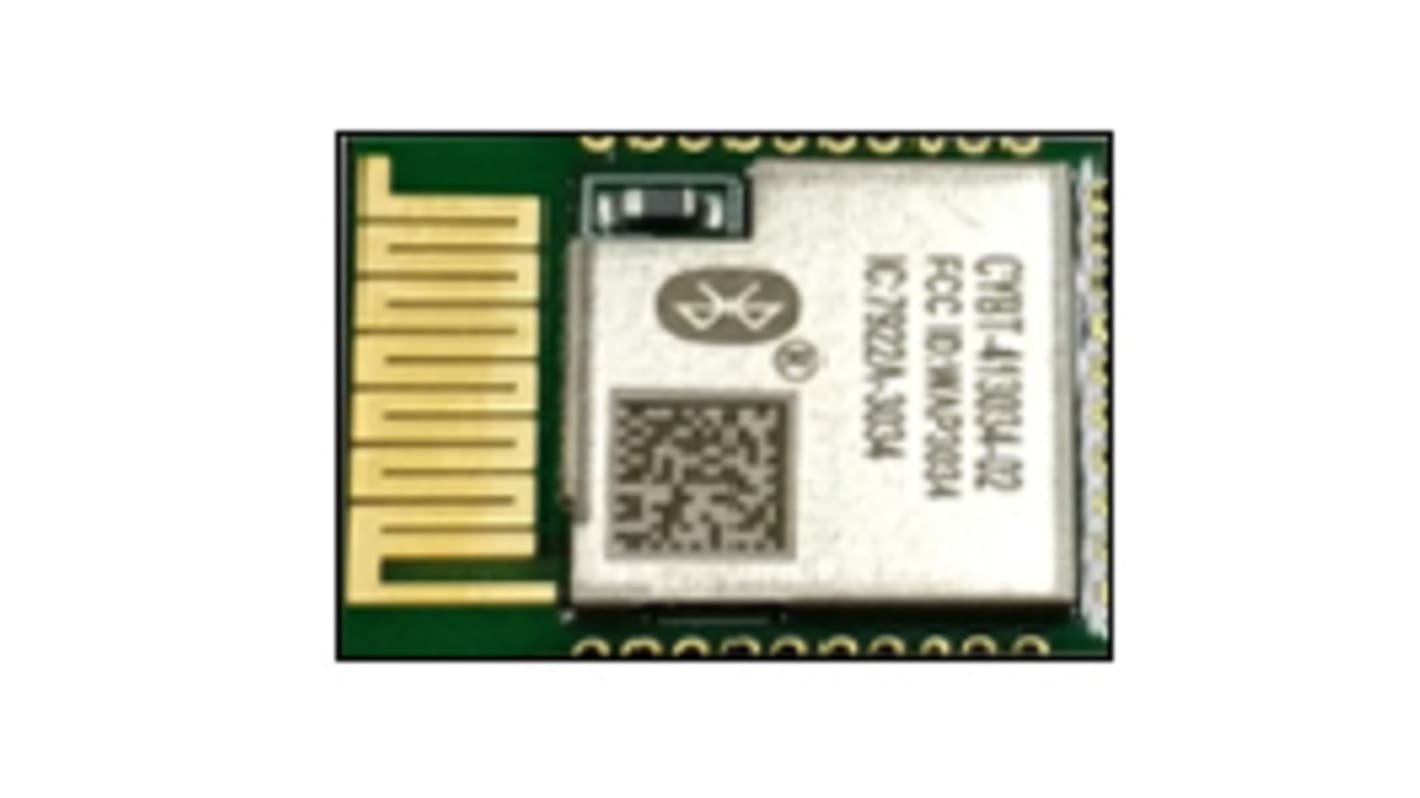

The CYBT-413034-02 is a dual-mode Bluetooth BR/EDR and Low Energy (BLE) wireless module solution. The CYBT-413034-02
includes onboard crystal oscillators, passive components, and the Cypress CYW20719 silicon device.
The CYBT-413034-02 supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols
(UART, SPI, I2C, I2S/PCM). The CYBT-413034-02 includes a royalty-free stack compatible with Bluetooth 5.0 in a small 12.0 x 16.3
x 1.70 mm module form-factor.
The CYBT-413034-02 includes an integrated chip antenna, is qulaified by Bluetooth SIG, and includes regulatory certification approval
for FCC, ISED, MIC, and CE.

Specifikationer

Attribute	Value
Bluetooth Class	Class 2
Bluetooth Version	5
Maximum Output Power	4dBm
Receiver Sensitivity	-95dBm
Supported I/O Interfaces	I2C, SPI, UART
Dimensions	16.3 x 12 x 1.7mm
Height	1.7mm
Length	16.3mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-30 °C
Width	12mm

RS-artikelnummer:: 187-7658
Tillv. art.nr:: CYBT-413034-02
Tillverkare / varumärke:: Infineon

Datasheet
