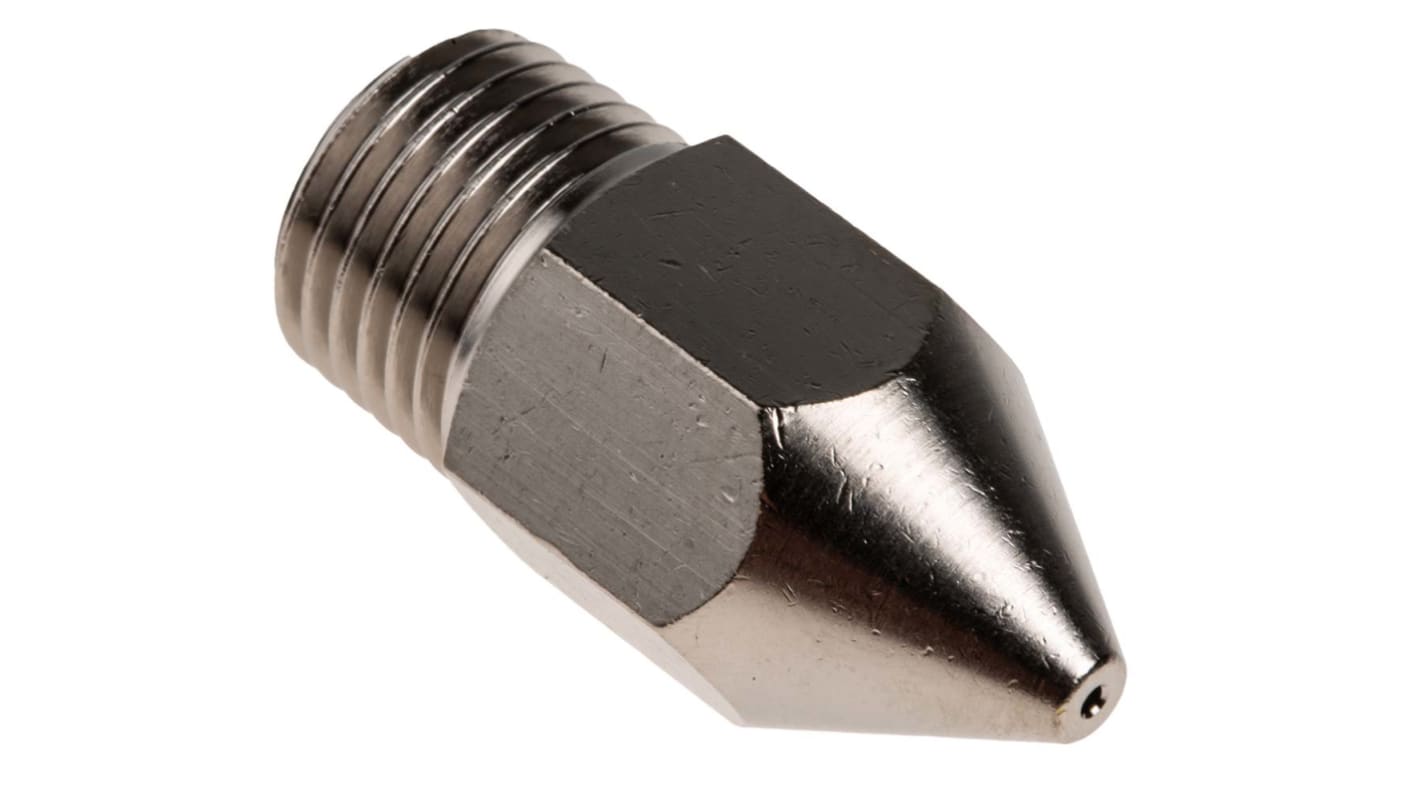

SMC Blower Gun Male Swinging Nozzle, 0 → 10bar, -5 → 60°C
- RS-artikelnummer 721-3880
- Tillv. art.nr KN-R02-100
- Tillverkare / varumärke SMC
Blowgun (VMG)
The SMC VMG series of blow guns have a large effective area without nozzle. Pressure loss is 0.725psi (0.005MPa) or less when a nozzle bore size of 2.5mm is used.
Energy saving
Shock resistant body
Gun body made from high impact, shock resistant resin
Not affected by supply presure
Trigger mechanism gripping force the same at high and low pressure
Resin body lever type
White or dark blue body colour versions available
Note
Nozzle not supplied with blowgun.
Note
To be used with the SMC blow gun, please see RS stock number 690-0212
Warning
- Hole size is 1 mm
| Attribute | Value |
|---|---|
| Type | Male Swinging Nozzle |
| Working Pressure | 0 → 10bar |
| Air Inlet BSP | 1/4in |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -5°C |
