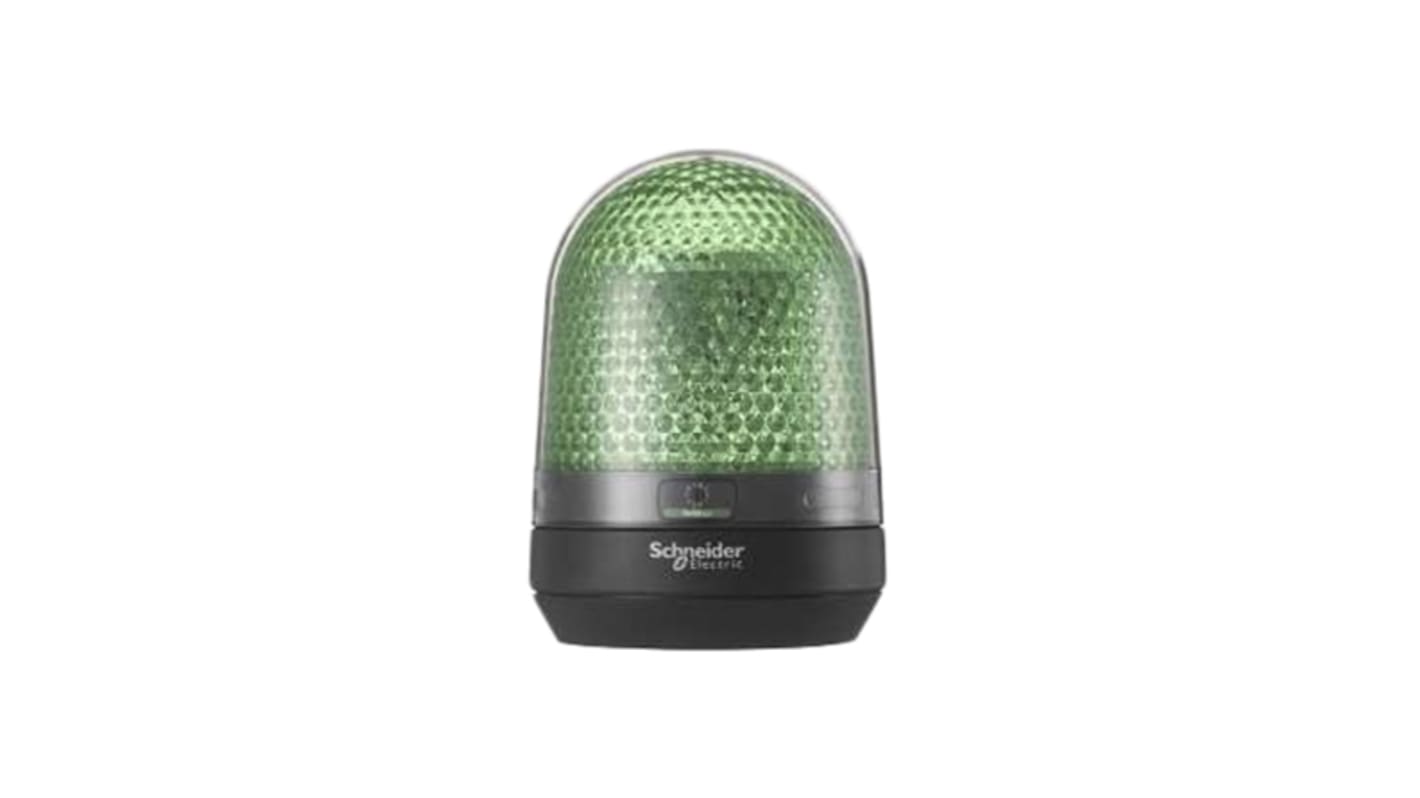

Schneider Electric Harmony XVR Series Green Multiple Effect Beacon, 48 V dc, Base Mount, LED Bulb, IP23, IP65
- RS-artikelnummer:
- 901-2484
- Tillv. art.nr:
- XVR3E03
- Tillverkare / varumärke:
- Schneider Electric
Tillfälligt slut i lager – restorder för leverans 2024-08-06
Lagt till varukorgen
Pris (ex. moms) Varje
2 494,32 kr
(exkl. moms)
3 117,90 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 2 494,32 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
Alternatives
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.
- RS-artikelnummer:
- 901-2484
- Tillv. art.nr:
- XVR3E03
- Tillverkare / varumärke:
- Schneider Electric
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Schneider XVR Multi-functional LED Beacons
The Harmony XVR range of motor-less rotating beacons are visual signalling units designed for factory applications, construction vehicles, and in public areas. The beacons are available in 4 different colours and come with a faceted lens which extends the lighting area. The unique aesthetic design of the XVR beacons has been recognized by the Red Dot industrial design award for 2014. Installation of these visual signalling units is easy thanks to a flexible voltage input, a light mode selector, and an integrated rubber base which allows straight and side wiring.
Longer life and maintenance free thanks to motor-less LED technology
Rotating, blinking, and flashing LEDs
10 lighting modes make it easy to use and simple to select
Wide voltage input to meet different applications
Straight and side wiring possible
Simple and easy installation without use of any tools
Available in green, red, orange and blue
Unique aesthetic design
Faceted lens extends the lighting area
Integrated rubber base improves the IP rating
Up to IP65 degree of protection depending on buzzer option
High vibration resistance of 7.1G
CE certified and RoHS compliant
Connection is via 400 mm flying leads with a cross-section of 0.57 mm2
Rotating, blinking, and flashing LEDs
10 lighting modes make it easy to use and simple to select
Wide voltage input to meet different applications
Straight and side wiring possible
Simple and easy installation without use of any tools
Available in green, red, orange and blue
Unique aesthetic design
Faceted lens extends the lighting area
Integrated rubber base improves the IP rating
Up to IP65 degree of protection depending on buzzer option
High vibration resistance of 7.1G
CE certified and RoHS compliant
Connection is via 400 mm flying leads with a cross-section of 0.57 mm2
Specifikationer
Attribute | Value |
|---|---|
| Supply Voltage | 48 V dc |
| Light Effect | Flashing, Rotating |
| Lens Colour | Green |
| Mounting Style | Base Mount |
| Bulb Type | LED |
| Current Type | DC |
| Base Diameter | 100mm |
| Housing Colour | Black |
| Lamp Included | Yes |
| Series | Harmony XVR |
| Multifunction | Yes |
| Height | 139mm |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Base Length | 100mm |
| IP Rating | IP23, IP65 |
| Minimum Temperature | -20°C |
| Maximum Temperature | +50°C |
| Base Width | 100mm |
| Special Features | Installation is Made Easy with a Flexible Voltage Input and Light Mode Selector, The Harmony XVR Range are Visual and Audible Signaling Units Mainly Used for Factory Applications, Construction Vehicles, and in Public Areas |
