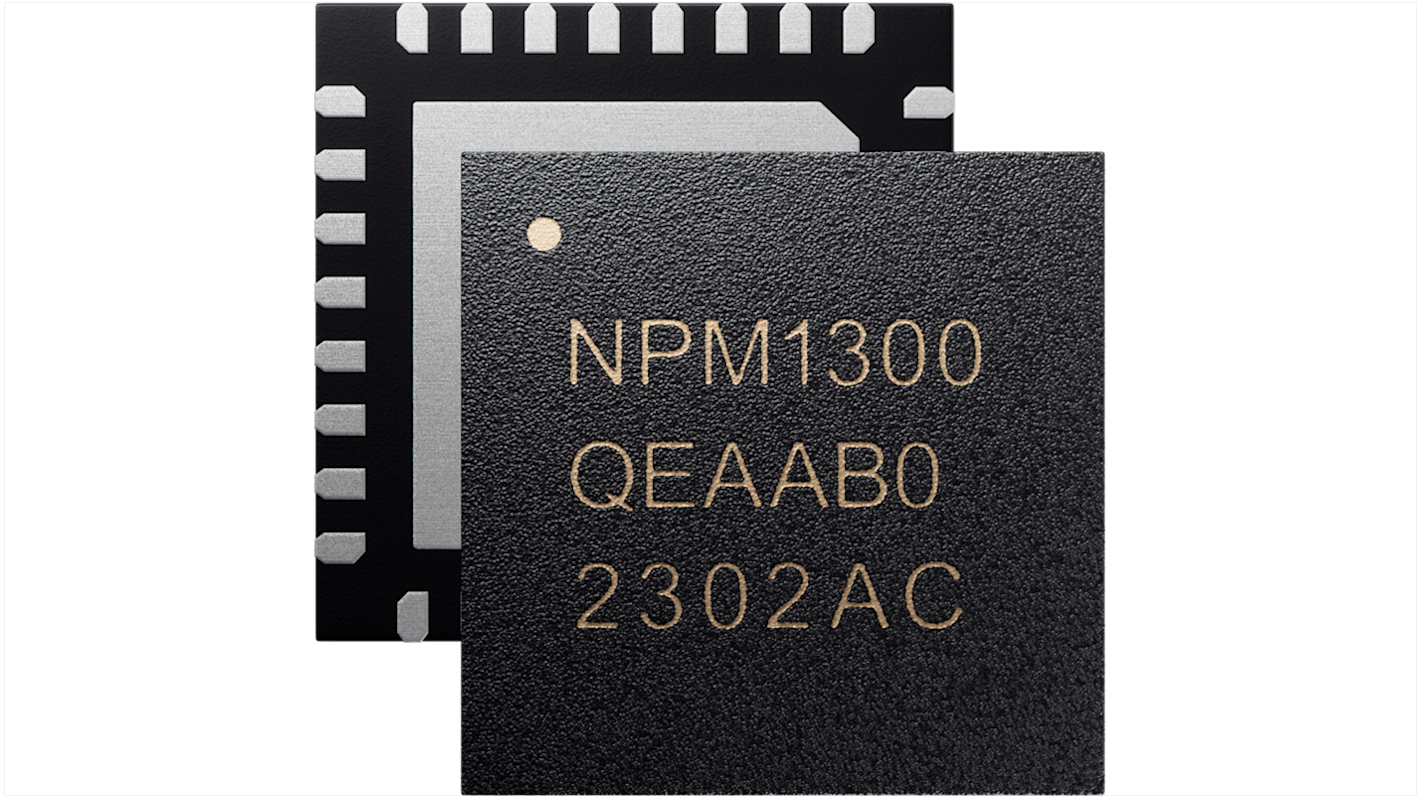

Nordic Semiconductor nPM1300-QEAA-R7, Li Ion Charger IC, 5.5 V, 50mA 32-Pin, QFN32
- RS-artikelnummer:
- 279-6399
- Tillv. art.nr:
- nPM1300-QEAA-R7
- Tillverkare / varumärke:
- Nordic Semiconductor
1500 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 1500)
23,16 kr
(exkl. moms)
28,95 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 1500 + | 23,16 kr | 34 740,00 kr |
- RS-artikelnummer:
- 279-6399
- Tillv. art.nr:
- nPM1300-QEAA-R7
- Tillverkare / varumärke:
- Nordic Semiconductor
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
The Nordic Semiconductor Power Management IC (PMIC) is designed compatible with an nRF52, nRF53, or nRF54 Series System on Chip (SoC) for developing low-power wireless solutions. The power management is achieved through flexible power regulation and a linear-mode lithium-ion (Li-ion), lithium-polymer (Li-poly), and lithium iron phosphate (LiFePO4) battery charger in a compact 5x5 mm QFN32 package. It is optimized for maximum efficiency and compact size, and is configurable through an I2C compatible Two Wire Interface (TWI). This interface enables easy access and configure a range of advanced system management functions, including a two-button hard reset, battery fuel gauging, system-level watchdog, power loss warning, and recovery from failed boot.
System-level watchdog and failed-boot recovery
Intelligent power-loss warning
Controlled via I2C compatible TWI
USB-C compatible
Reel packaging
Intelligent power-loss warning
Controlled via I2C compatible TWI
USB-C compatible
Reel packaging
Specifikationer
Attribute | Value |
|---|---|
| Battery Type | Lithium-Ion, Lithium-Polymer |
| Mounting Type | Surface Mount |
| Package Type | QFN32 |
| IC Type | Power Management IC |
| Pin Count | 32 |
| Typical Operating Supply Voltage | 5.5 V |
| Maximum Output Current | 50mA |
