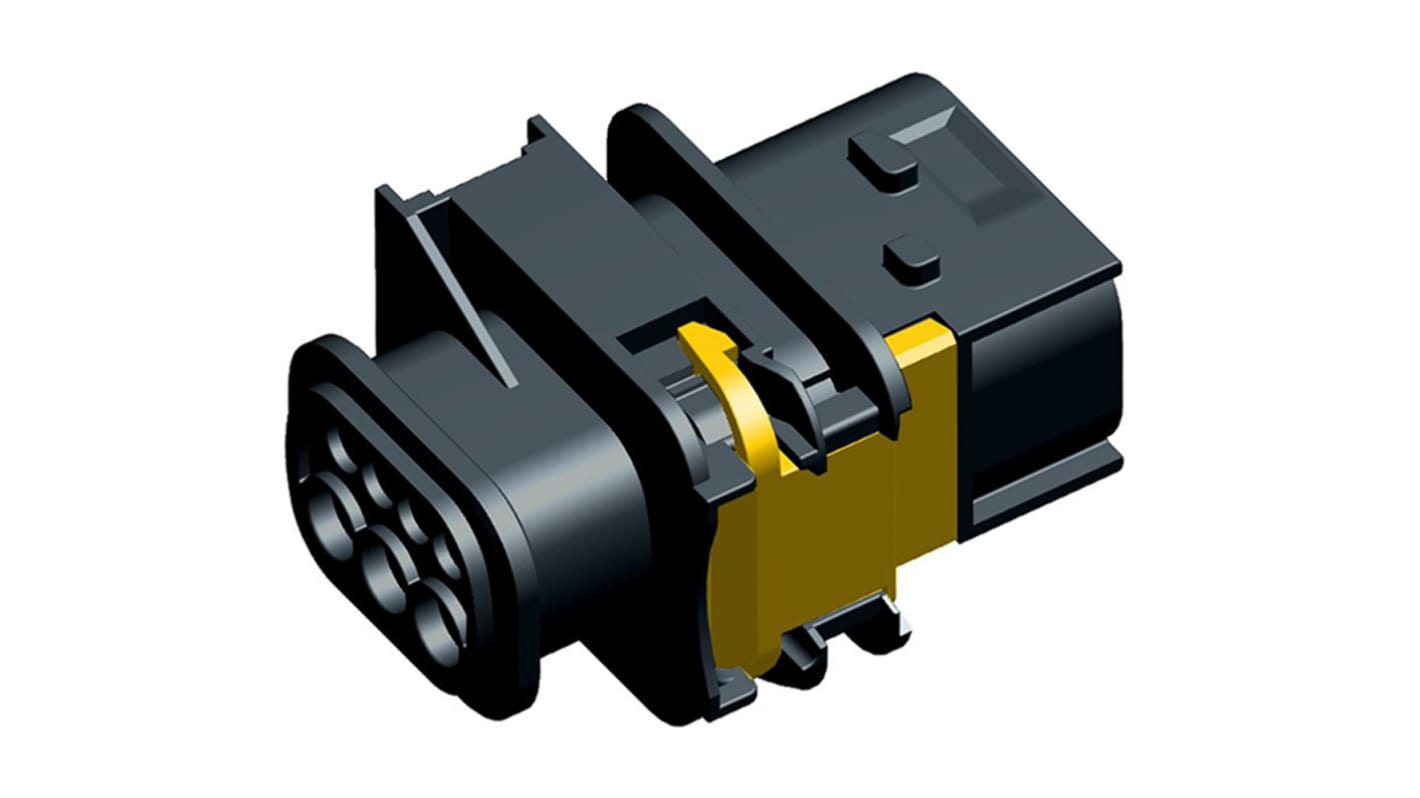

TE Connectivity HDSCS Series, 2 Row 7 Way In-Line Mount Plug Housing

  • RS-artikelnummer 909-7854
  • Tillv. art.nr 1-1703648-1
  • Tillverkare / varumärke TE Connectivity
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

TE Connectivity HDSCS MCP 1.5 and 2.8 Mixed Tab Housings

A series of heavy duty sealed housings from TE Connectivity. These automotive connectors are designed to accommodate a mixture of 1.5 and 2.8 male terminals. See part number 718-1077 typically. The heavy-duty automotive connectors are made from a black PBT housing material and operate within a temperature range of -40-140°c

TE Connectivity HDSCS (Heavy Duty Sealed Connectors Series)

HDSCS connectors for use in commercial and off-road vehicles applications. These HDSCS automotive connectors have rugged thermoplastic housings and are designed to withstand tough and harsh environments and high levels of vibration. The sealing provides IP67 protection against dust and water. This robust construction ensures high performance, reliability and long-term use. These HDSCS automotive connectors can be used for wire to wire or wire to device applications. The HDSCS connector housings are available in 5 different sizes from 2 to 18 ways and accept AMP MCP 1.5K, AMP MCP 2.8 or AMP MCP 6.3/4.8K receptacle or tab contacts.

Specifikationer
Attribute Value
Type Housing
Number of Contacts 7
Gender Male
Number of Rows 2
Mounting Type In-Line Mount
Series HDSCS
Colour Black
Height 31.3mm
Width 25.7mm
Depth 44mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +140°C
Housing Material PBT
117 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
38,26 kr
(exkl. moms)
47,82 kr
(inkl. moms)
Enheter
Per unit
1 - 99
38,26 kr
100 - 249
30,50 kr
250 - 499
26,88 kr
500 +
24,09 kr
