Infineon,Class-D130W, 44-Pin PQFN IR4301MTRPBF
- RS-artikelnummer:
- 243-9294
- Tillv. art.nr:
- IR4301MTRPBF
- Tillverkare / varumärke:
- Infineon
12000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 4000)
20,326 kr
(exkl. moms)
25,408 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 4000 + | 20,326 kr | 81 304,00 kr |
- RS-artikelnummer:
- 243-9294
- Tillv. art.nr:
- IR4301MTRPBF
- Tillverkare / varumärke:
- Infineon
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

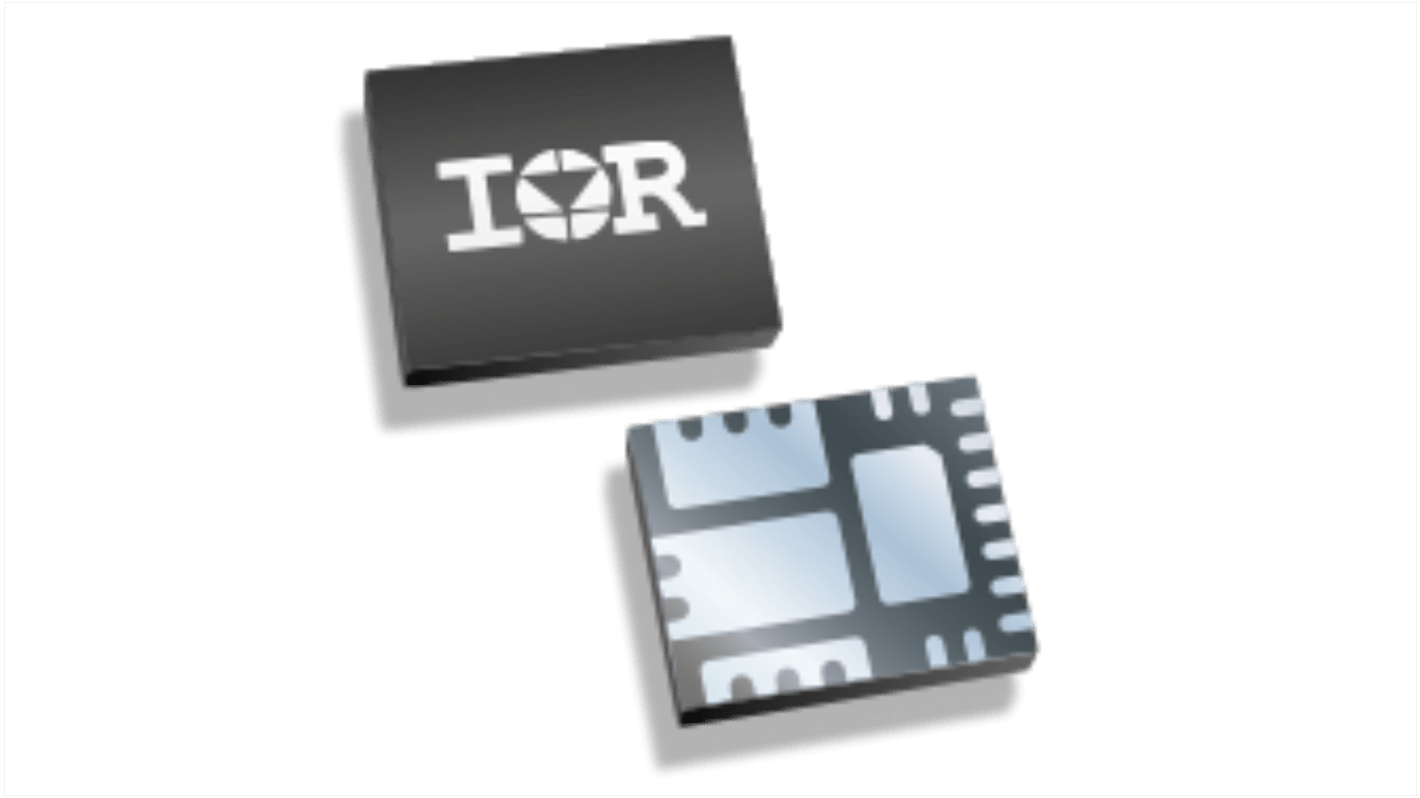

The Infineon IR4301MTRPBF Integrated Class D Audio Amplifier ICs integrates PWM controller and digital audio MOSFETs forming a high performance Class D audio amplifier. As a result of fully optimized MOSFETs co-packed with a dedicated controller IC, the IR43X1operates without mechanical heatsink attached in a typical music playback usage. High voltage ratings and noise immunity.
Integrated analog input Class D audio amplifier in a small 5 x 6 mm PQFN package
High peak music power output
No mechanical heatsink required
Split or single power supply
Differential or single-ended input
Over-current, over-temperature and under
voltage protections with self-reset function
Start and stop click noise reduction
High noise immunity
RoHS compliant
High peak music power output
No mechanical heatsink required
Split or single power supply
Differential or single-ended input
Over-current, over-temperature and under
voltage protections with self-reset function
Start and stop click noise reduction
High noise immunity
RoHS compliant
Specifikationer
Attribute | Value |
|---|---|
| Amplifier Type | Class-D |
| Output Type | 2 Channel Mono |
| Maximum Power | 130W |
| Application | Audio Equipment |
| Amplifier Class | Class D |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 95 V |
| Package Type | PQFN |
| Pin Count | 44 |
